Suspension mounted bell light

Home / Products / Urban Lighting / Suspension mounted bell light

Suspension mounted bell light

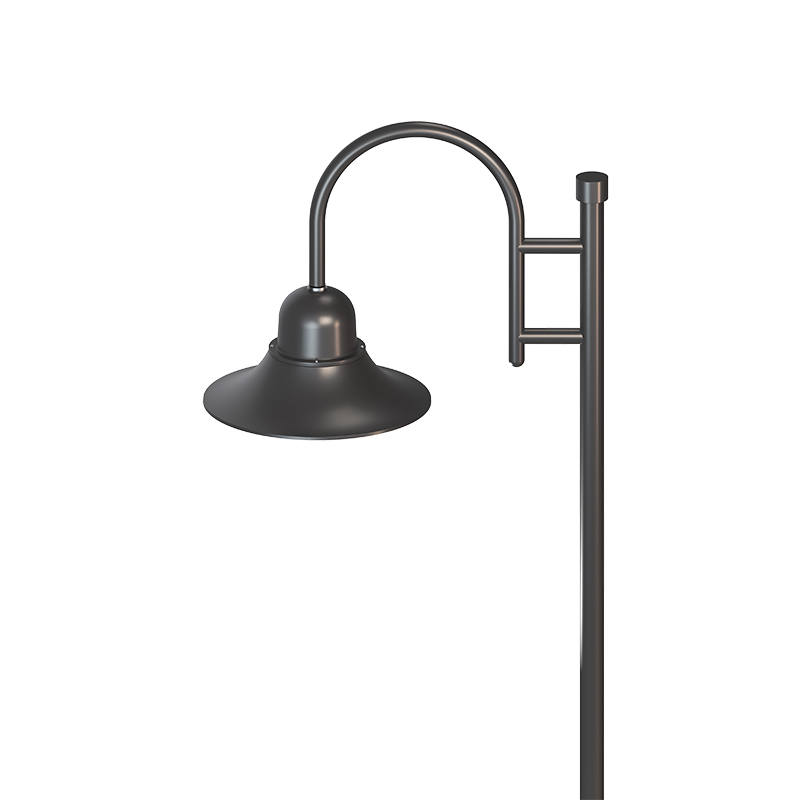

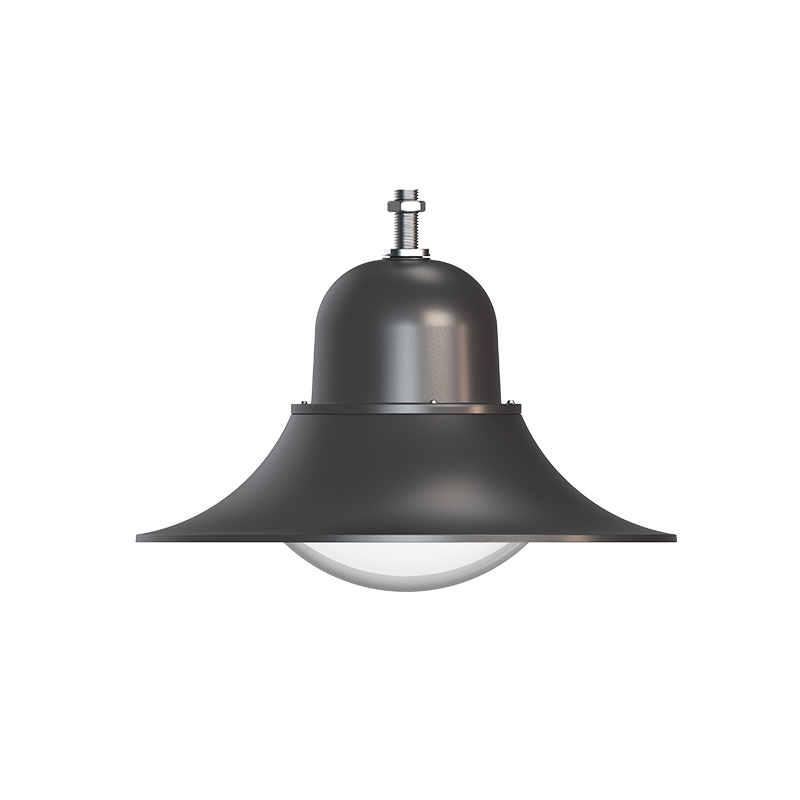

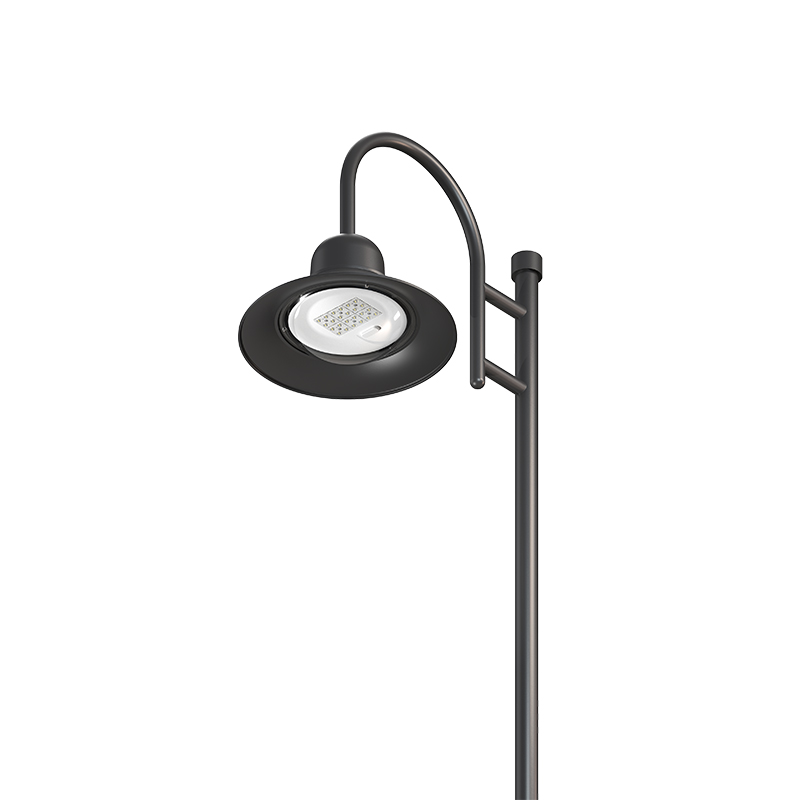

The EBELL is designed for residential and urban lighting, suitable for suspension mounting or installation on lamp post arms. It is equipped with 24 to 48 pcs of 5050 LEDs depending on the size, allowing precise adaptation to project requirements through various color temperatures and photometric distributions, while meeting anti–light pollution standards.The EBELL can be configured with flat, semi-circular, or acorn-shaped bowls. It provides IP66 protection and IK08 impact resistance (up to IK10 with glass cover).

Contact us
PREV: Tool free open LED urban light NEXT:Post top & side entry LED lanterns

Specification

・The classic bell shape by LED light source
・Power from 10W to 100W
・PC bowl or tempered glass cover
・High efficiency up to 170lm/w
・Multiple optic lenses T1~T5
・Easy installation
・Careful top waterproof design
・Customizable C3/C4/C5 corrosion resistence

Details

Product model EL-GL607
Size Ø580*510mm
Nominal power 10-100W
LED type 3030/5050
CCT 1800-6500K
CRI Ra>70 (Ra>80 optional)
Max luminous efficiency 170lm/w
Max luminous flux 17,000lm
Optics Type II/III/IV/V
Driver function On-Off /0-10V/Timer Dim./DALI2/D4i
Insulation Class I/II
Diffuser type Glass/PC bowl
Housing material Die-cast aluminum
IP Rating IP66
IK Rating IK10
Colour of finish Black
Operation Temperature -40°C to +50°C
Mounting Suspended
Diameter to fit 3/4'' gas male pipe
Extension interface NEMA/ZHAGA
Certificate CB/ENEC/CE/RoHS

Download

Embrace a green future

As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
