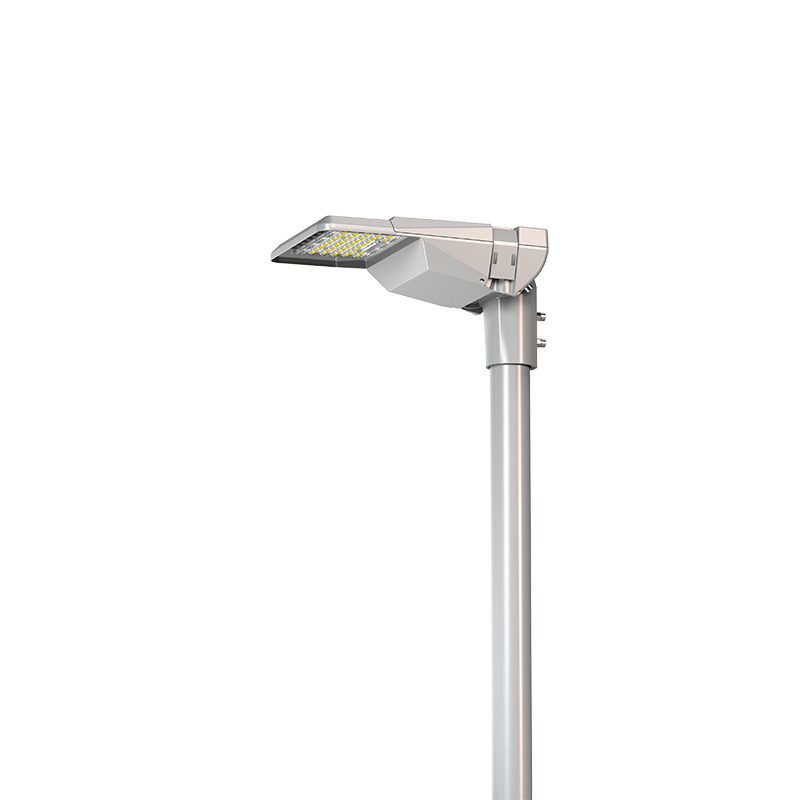

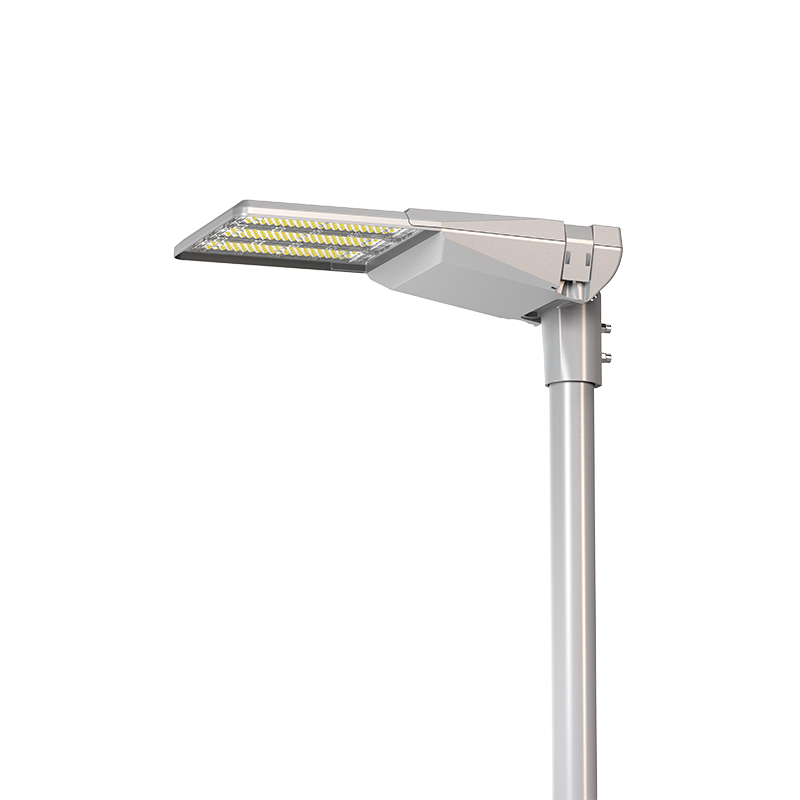

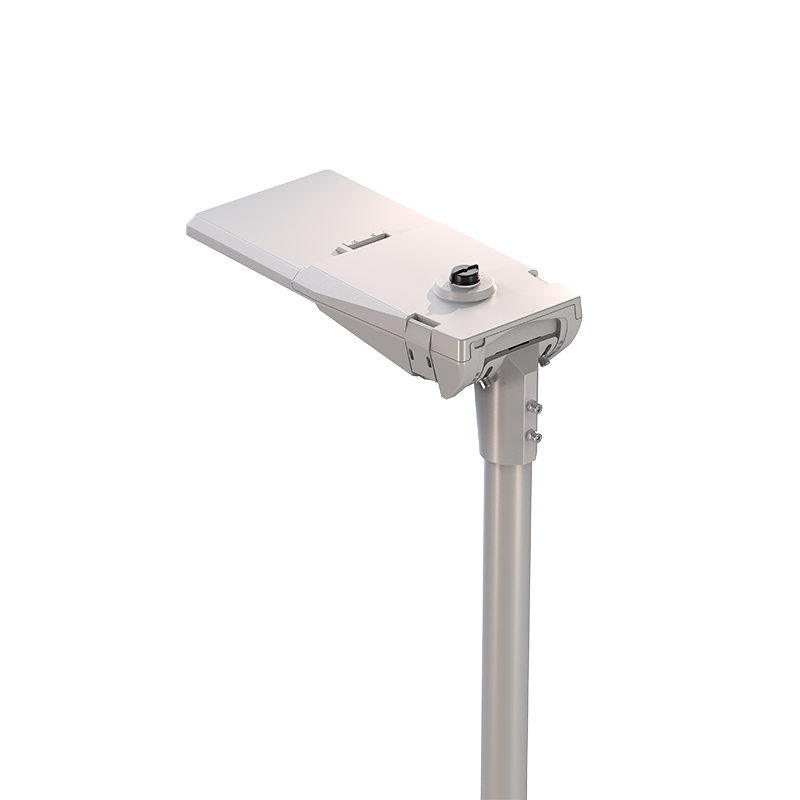

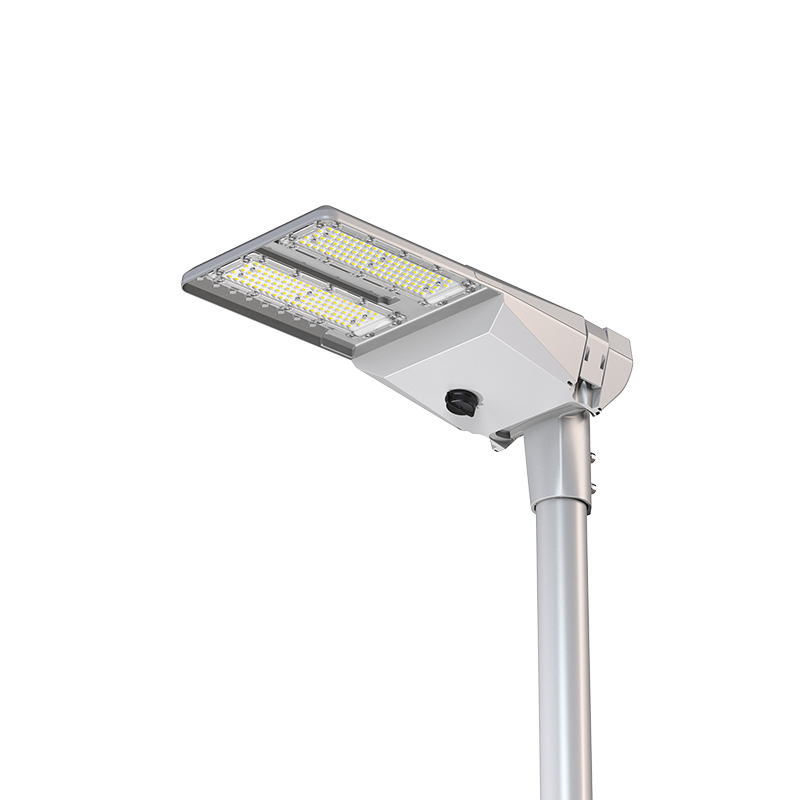

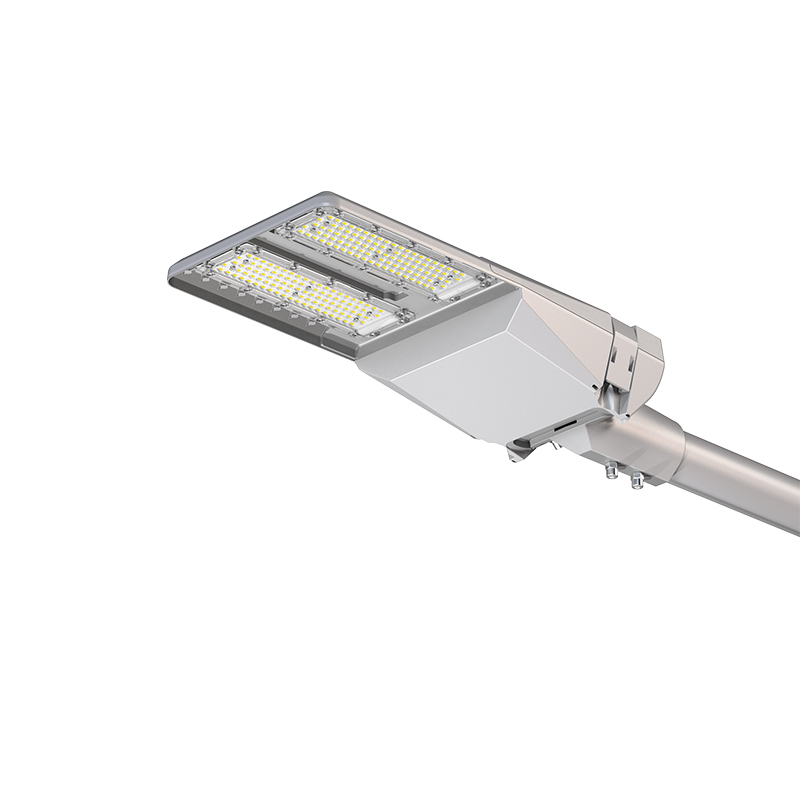

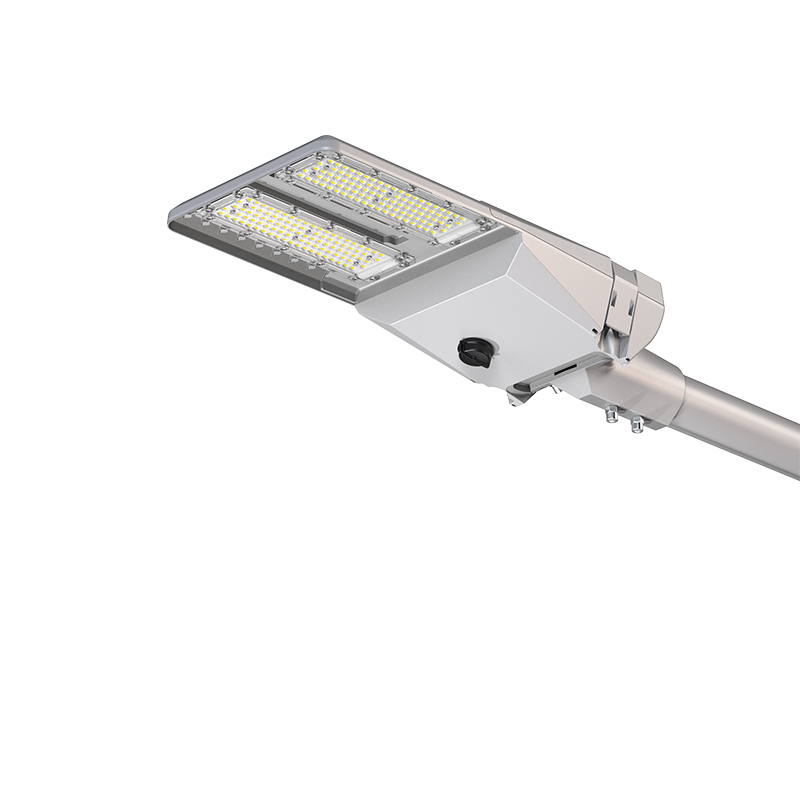

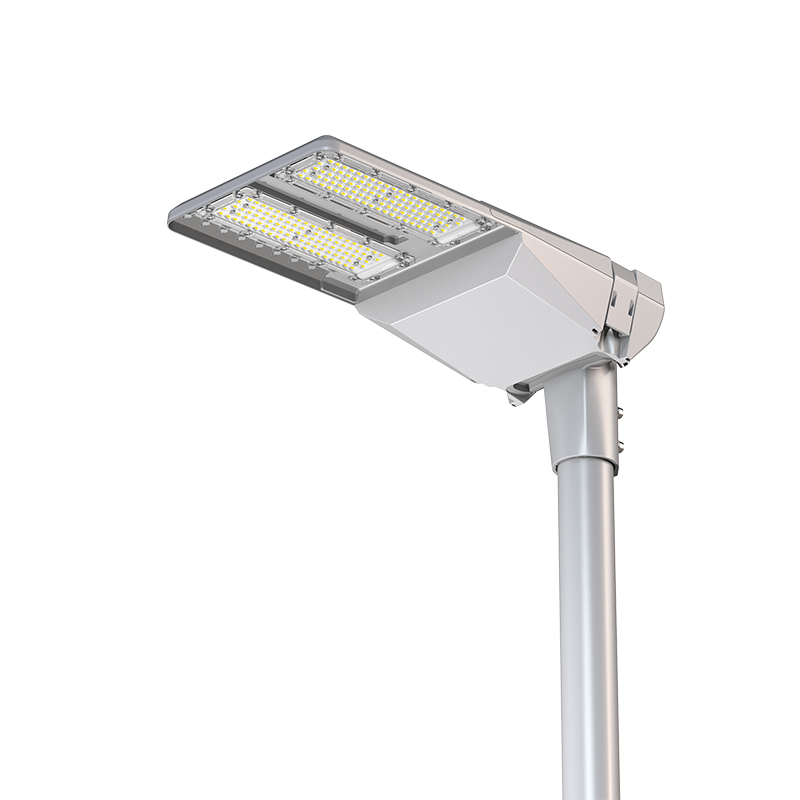

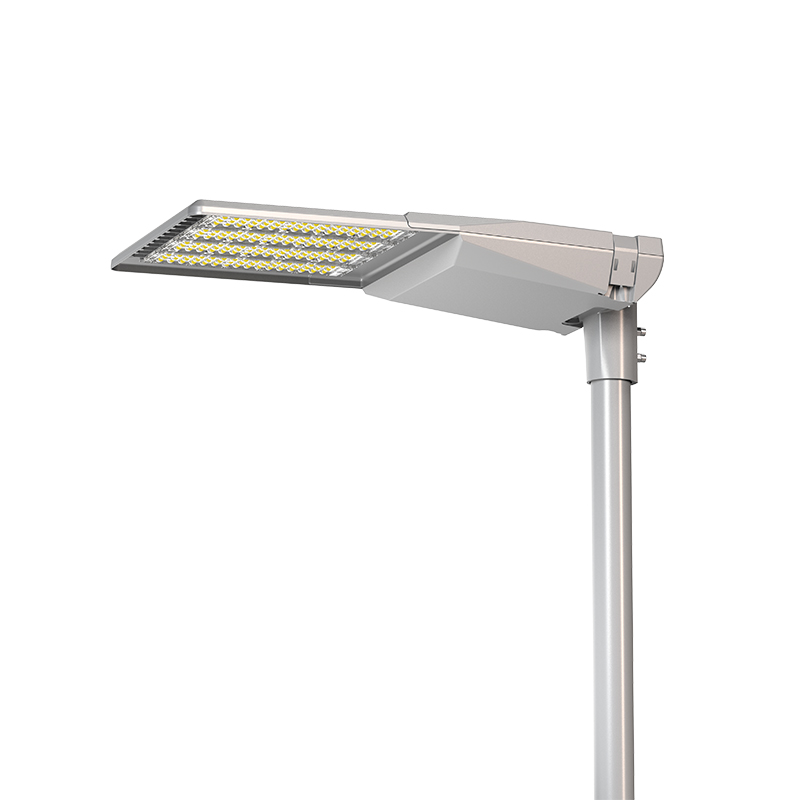

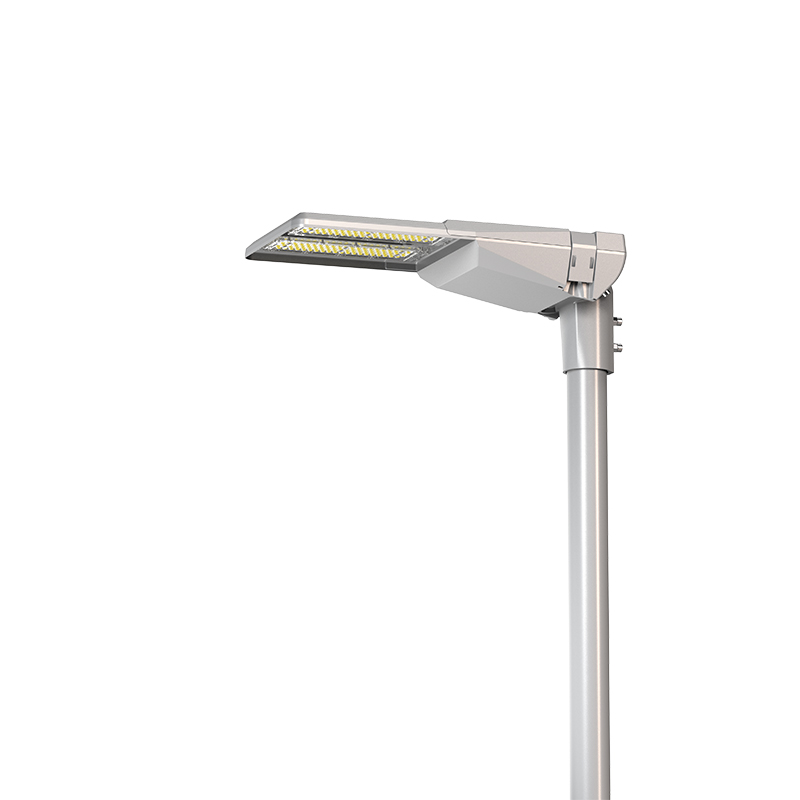

E-STAR SL06 is a super high efficiency LED street light series, luminous efficiency up to 180lm/w, a very wide power range from 50-350W which can be installed on various road conditions.
E-STAR SL06 is a super high efficiency LED street light series, luminous efficiency up to 180lm/w, a very wide power range from 50-350W which can be installed on various road conditions.
Specification
・4 sizes from 50W to 350W
・Slim body with a flat outline design
・Modular LED parts
・Tool-free open
・High efficiency up to 180lm/w
・Professional all in one Type II-S optic lens
・Ø60/76 adaptor, post top or side entry
・Tilt adjustable ±15°(5° per step)
・Smart-ready, Zhaga on both top and downward
Details
| Product model | EL-SL06 |
| Size | S/M/L/XL |
| Nominal power | 50-100W/100-150W/150-250W/250-350W |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 |
| Max luminous efficiency | 180lm/w |
| Max luminous flux | 63,000lm |
| Optics | Type II/III |
| Driver function | On-Off /0-10V/Timer Dim./DALI2/D4i |
| Insulation | Class I/II |
| Glass cover | No |
| Housing material | Die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +50°C |
| Mounting | Post Top/Side entry on pole |
| Pole diameter to fit | Ø60/76 |
| Extension interface | NEMA/ZHAGA |
| Certificate | CB/ENEC/CE/RoHS |
