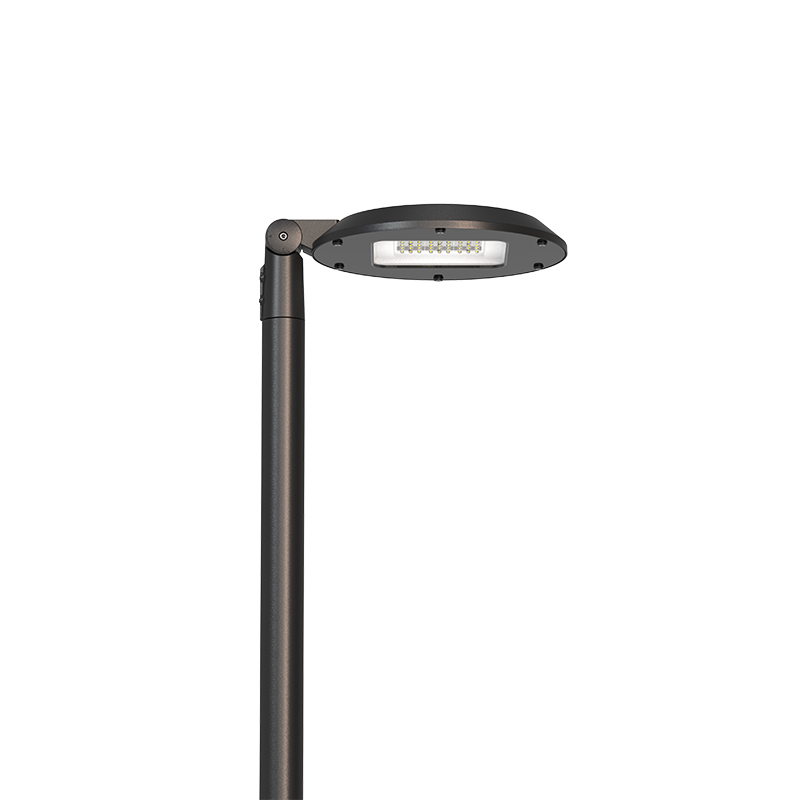

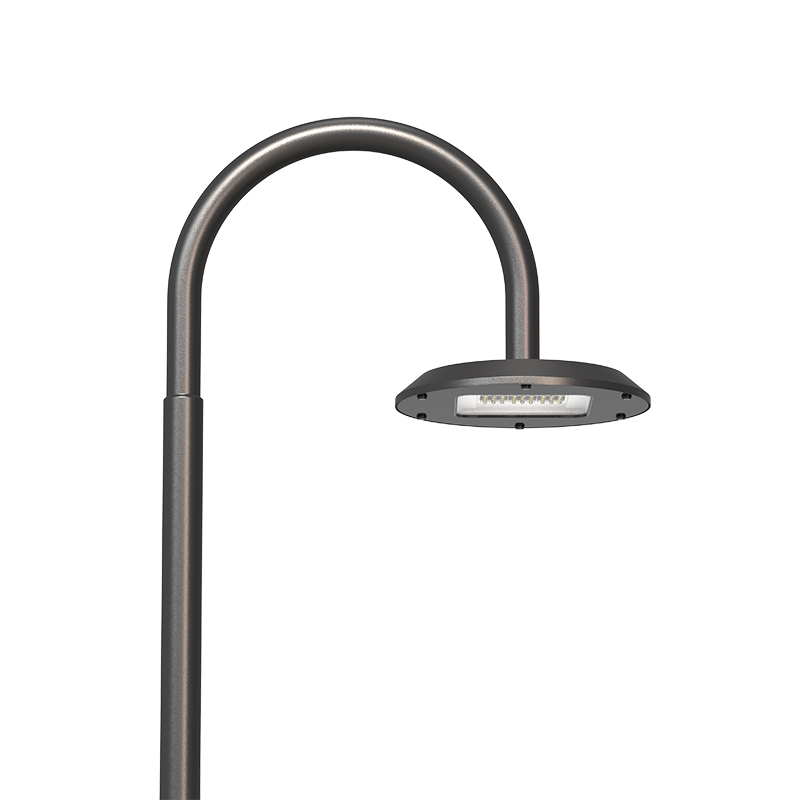

Among many similar shapes, we sought new and innovative ideas. Using the simplicity of circles and straight lines, combined in a harmonious way, we created the DIAMOND. Diamond is a functional urban luminaire that can flexibly transform between a park light and a street light, making it an ideal choice for modern lighting schemes.
Specification
・Modern style park light design
・Power from 10W to 100W
・Different mounting options
・The best sense of urban integration
・Tempered glass cover
・High efficiency up to 180lm/w(Version B)
・Multiple optic lenses T1~T5
・Smart-ready, Zhaga on both top and downward
Details
| Product model | EL-GL06 |
| Type | A/B/C |
| Nominal power | 10-100W |
| LED type | 5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 (Ra>80 optional) |
| Max luminous efficiency | 180lm/w |
| Max luminous flux | 18,000lm |
| Optics | Type II/III/IV/V |
| Driver function | On-Off /0-10V/Timer Dim./DALI2/D4i |
| Insulation | Class I/II |
| Glass cover | Yes |
| Housing material | Die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +50°C |
| Mounting | Post top/Side entry/Suspended |
| Pole diameter to fit | Ø60 |
| Extension interface | NEMA/ZHAGA |
| Certificate | CB/ENEC/CE/RoHS(Pending) |
Download
Embrace a green future
As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
