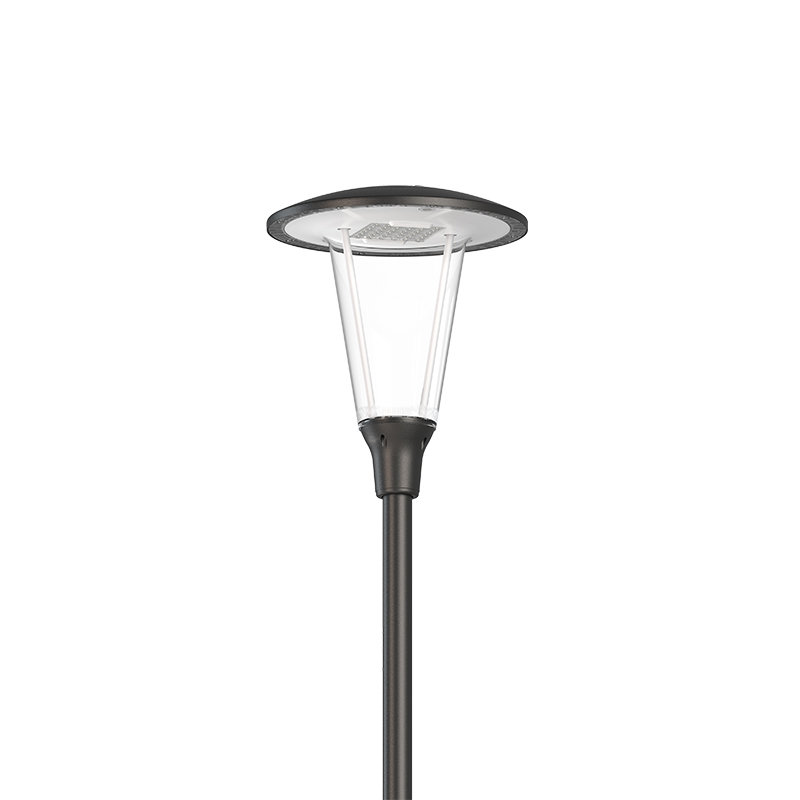

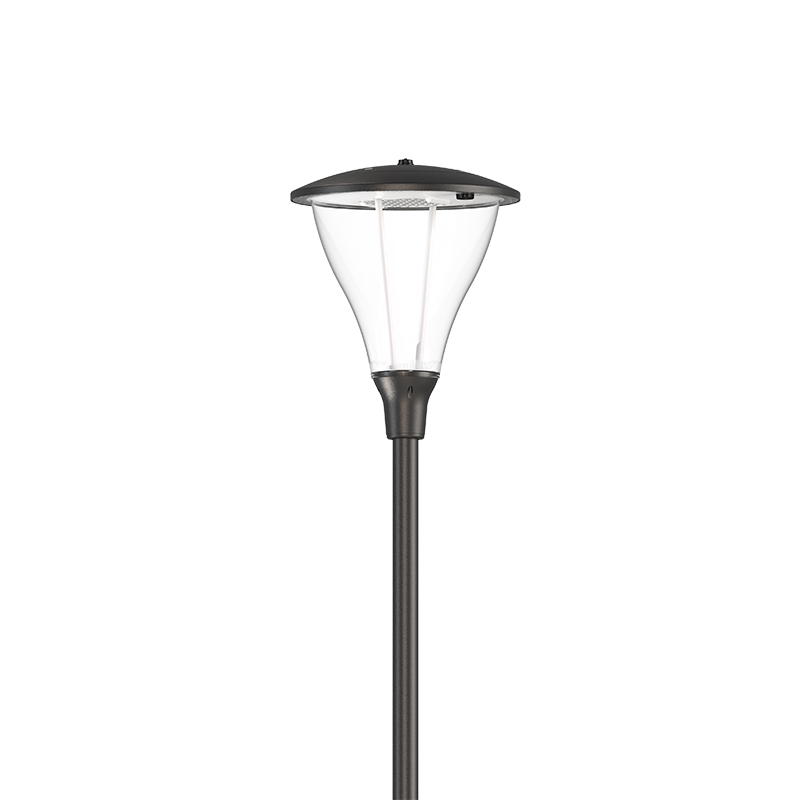

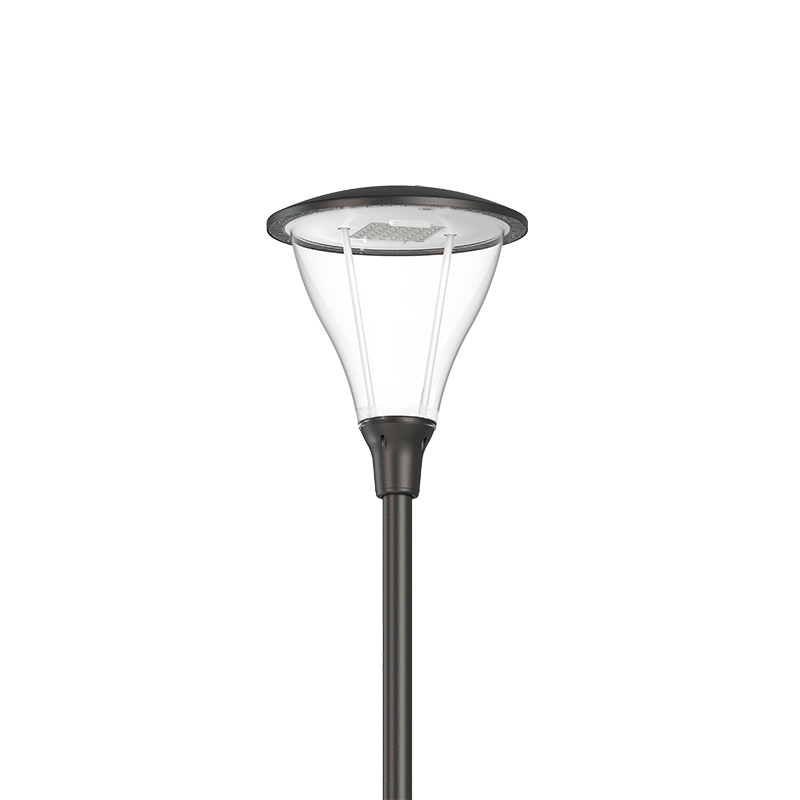

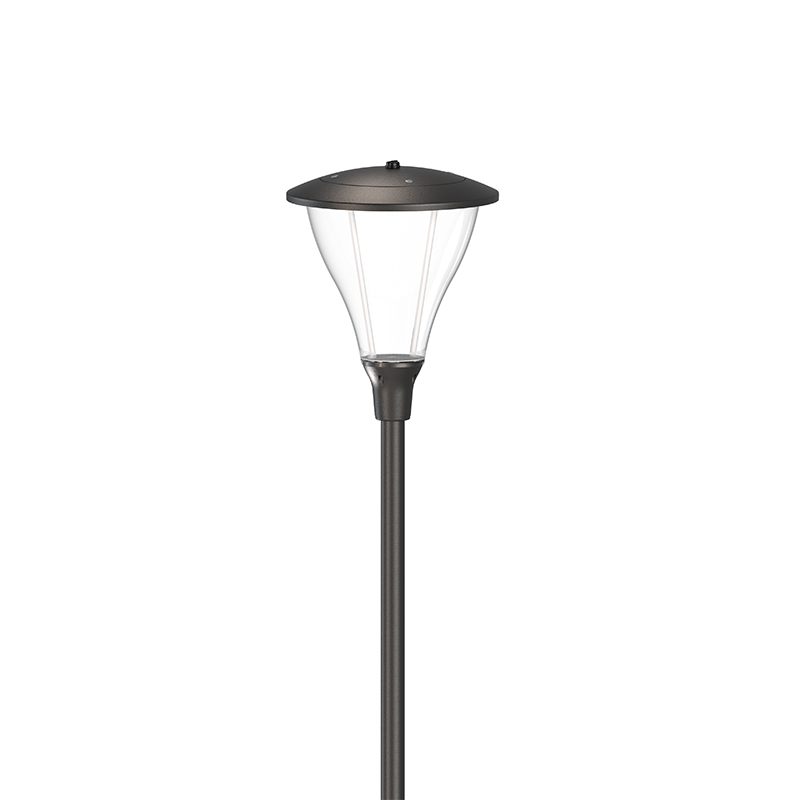

Modern style PC bowl park light

EAGER is a new concept for garden area illumination, featuring a well-proportioned design combined with the advanced lighting control technology. It is compatible with NEMA and Zhaga systems and available with various dimming options. The integrated die-cast aluminum radiator ensures fast heat dissipation to extend product lifetime.

The luminaire offers two types of IK10 PC diffusers, multiple optical lenses for different applications, and an optional inner PC shield to minimize glare and light pollution. With all these advantages, EAGER not only enhances your lighting performance but also beautifies your outdoor spaces.

Specification

・All-round modern style park light design
・Power from 10W to 100W
・Superior PC bowl clear or frosted, wide or narrow
・High efficiency up to 150lm/w
・Multiple optic lenses T1~T5
・Smart-ready, Zhaga on both top and downward
・Complete accessories for light-friendly
・Ø60/76 adaptor

Details

Product model EL-GL03N/W
Size Ø531*632
Nominal power 10-100W
LED type 3030/5050
CCT 1800-6500K
CRI Ra>70 (Ra>80 optional)
Max luminous efficiency 160lm/w
Max luminous flux 16,000lm
Optics Type II/III/IV/V
Driver function On-Off /0-10V/Timer Dim./DALI2/D4i
Insulation Class I/II
Diffuser PC(Wide or narrow)
Housing material Die-cast aluminum
IP Rating IP66
IK Rating IK10
Colour of finish Grey
Operation Temperature -40°C to +50°C
Mounting Post top
Pole diameter to fit Ø60/76
Extension interface NEMA/ZHAGA
Certificate CB/ENEC/CE/RoHS

Embrace a green future

As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
