The ESSENCE is designed for ambient or residential lighting. Circular and flat in shape, the ESSENCE luminaire is topped by a bevelled rim and features an aluminum body finished in UV-resistant polycarbonate or tempered glass. Fully waterproof to IP66, and IK10 impact protection. 5 in 1 mounting solutions, suitable for vast majority of lighting scenarios.
Specification
・All-round style park light design
・Power from 10W to 120W
・Robust body
・Tool-free open
・Cambered glass cover
・High efficiency up to 180lm/w(B/C/D/E)
・Multiple optic lenses T1~T5
・Optional with Zhaga/Nema on top
・Complete accessories for light-friendly
・Multiple ways of installation
・Ø60/76 adaptor
Details
| Product model | EL-SL58A/B/C/D/E |
| Size | Ø520 |
| Nominal power | 10-120W |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 (Ra>80 optional) |
| Max luminous efficiency | 170lm/w |
| Max luminous flux | 20,400lm |
| Optics | Type II/III/IV/V |
| Driver function | On-Off /0-10V/Timer Dim./DALI2/D4i |
| Insulation | Class I/II |
| Glass cover | Yes |
| Housing material | Die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +50°C |

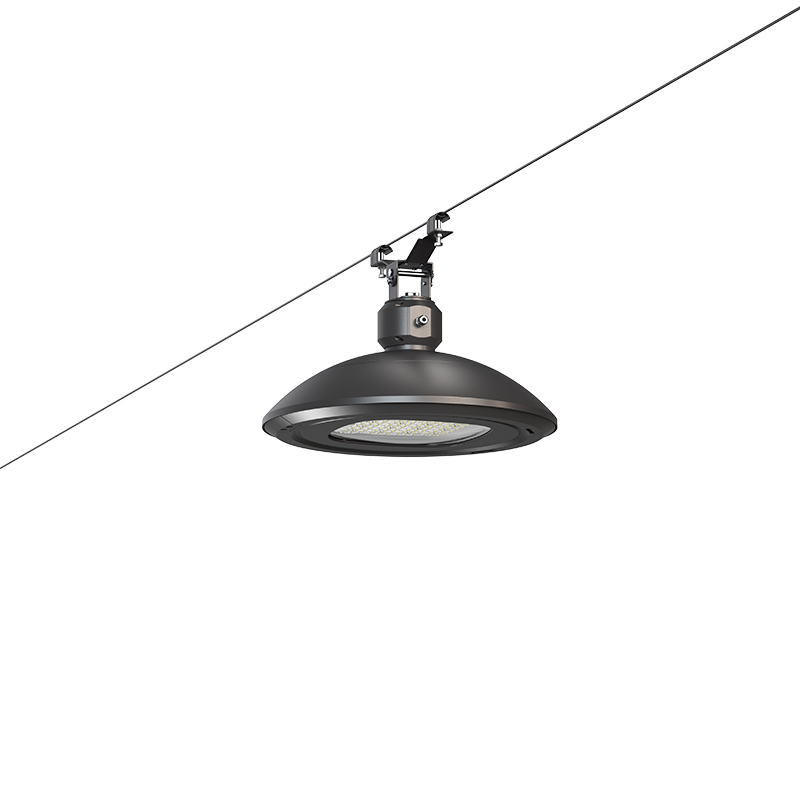

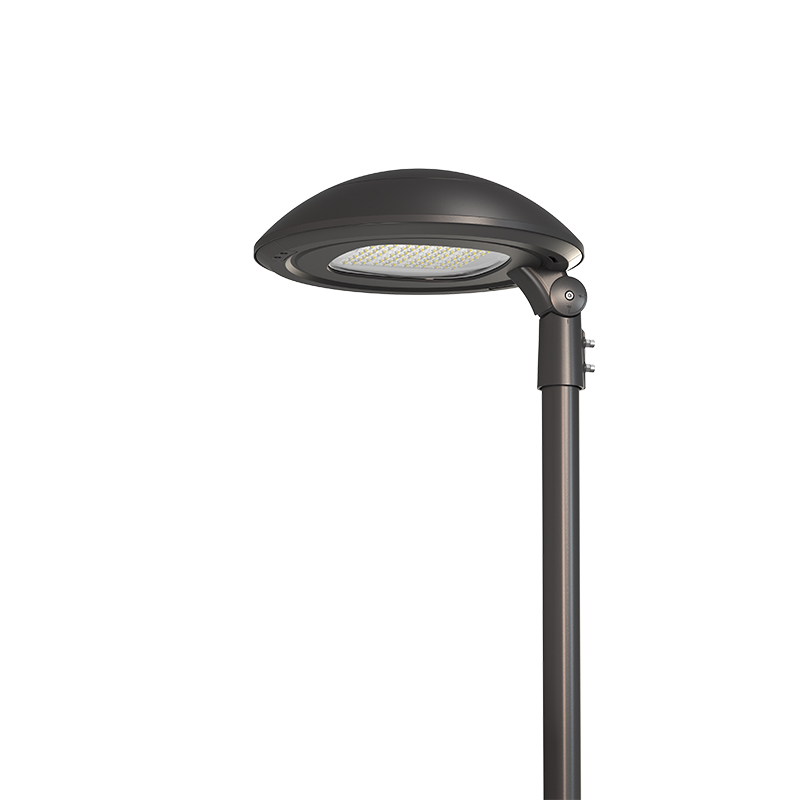

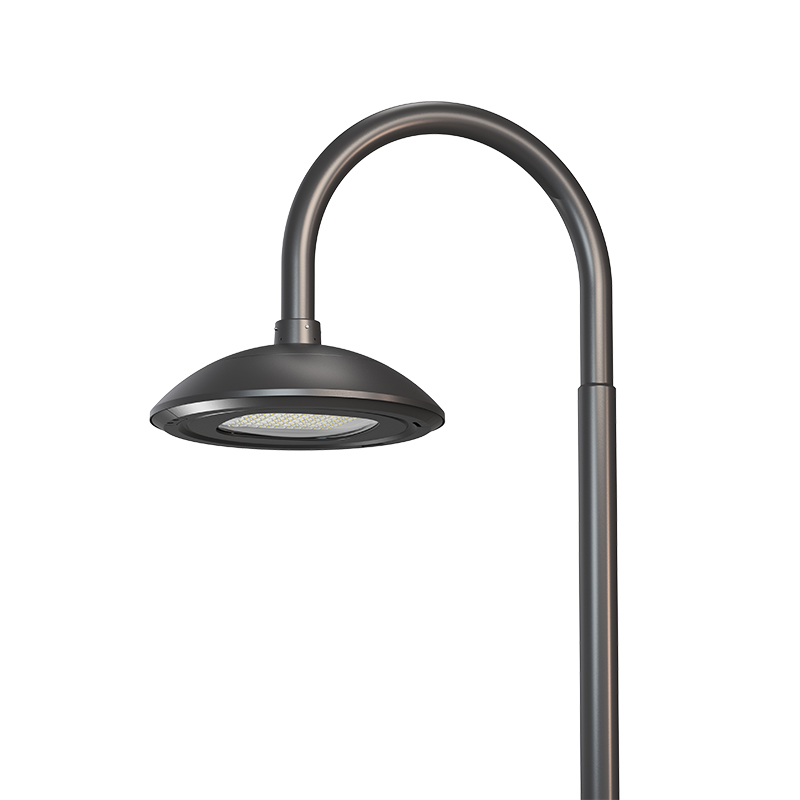

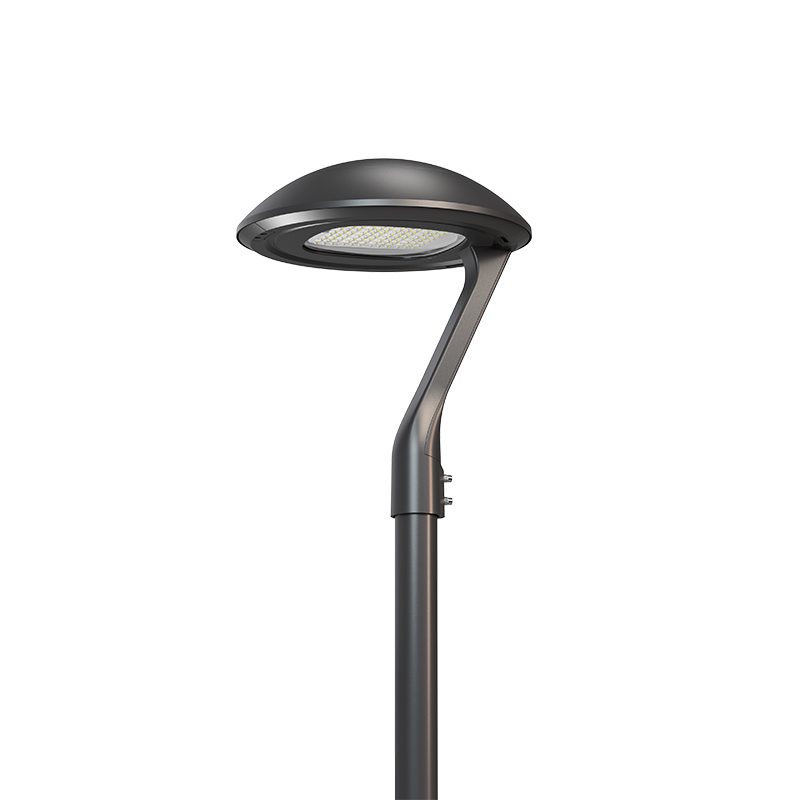

| Mounting | Post top/Side entry/Suspended |
| Pole diameter to fit | Ø60/76 |
| Extension interface | NEMA/ZHAGA |
| Certificate | CB/ENEC/CE/RoHS |
Download
