CB ENEC ENEC+ LED street light

Home / Products / Street Lighting / CB ENEC ENEC+ LED street light

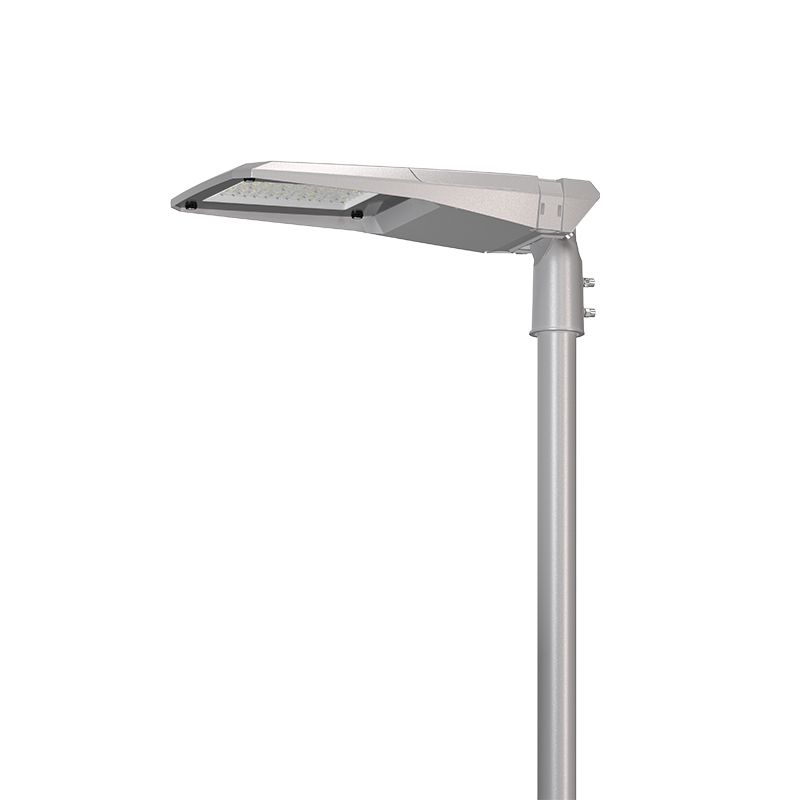

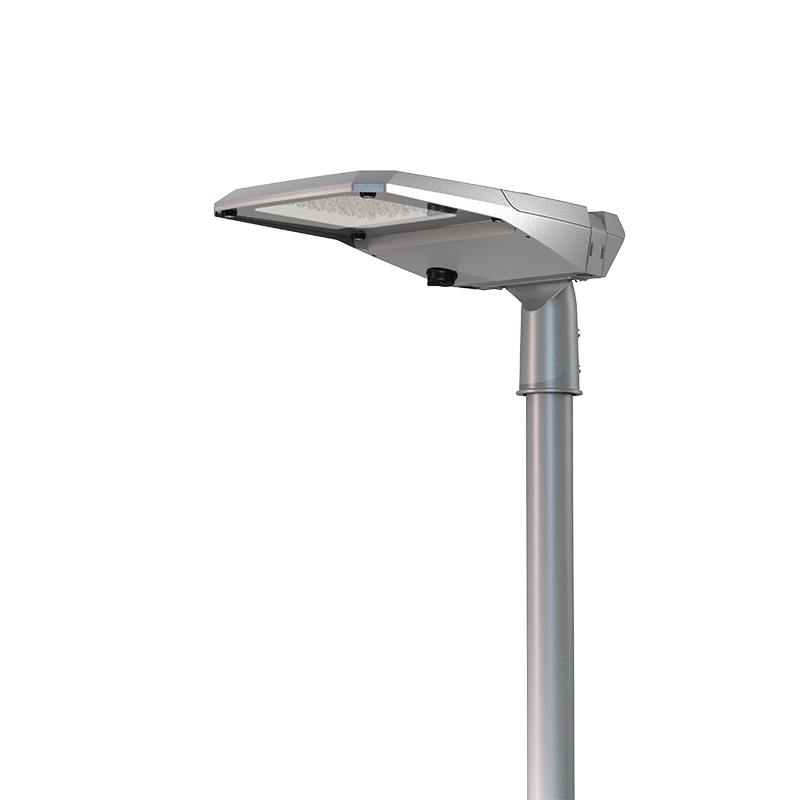

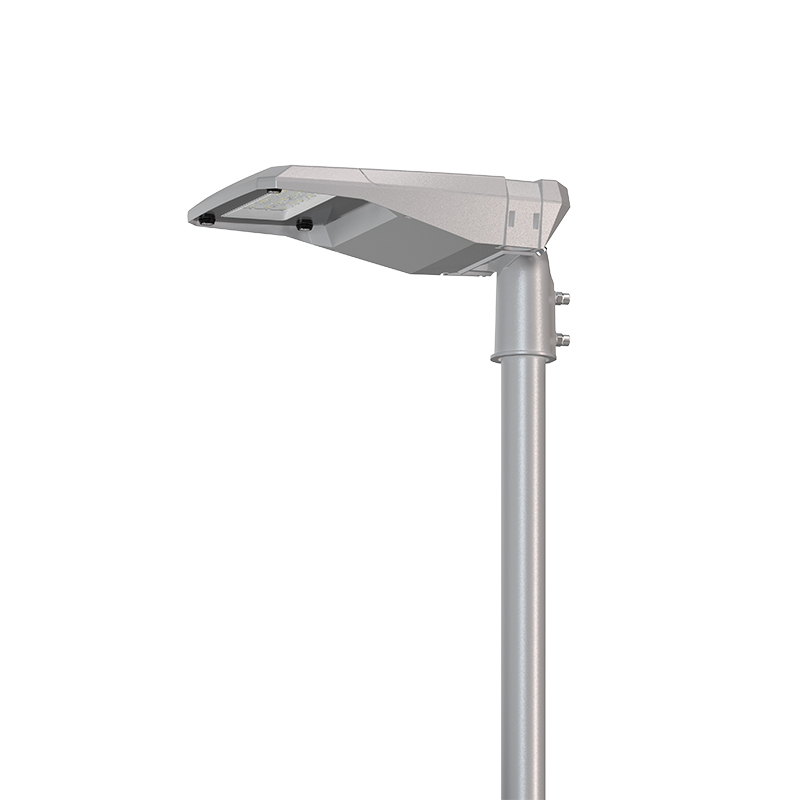

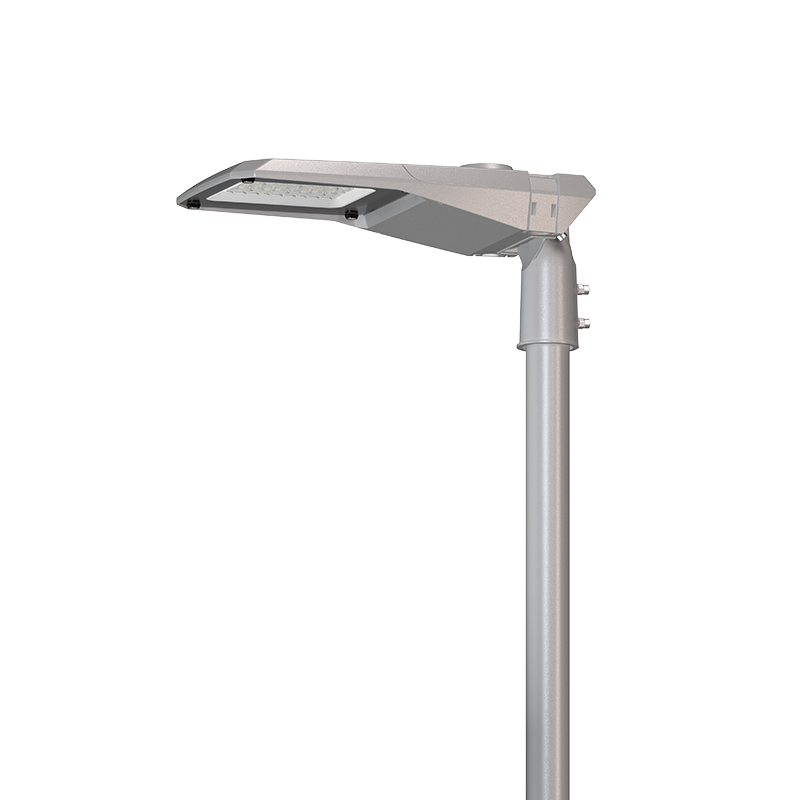

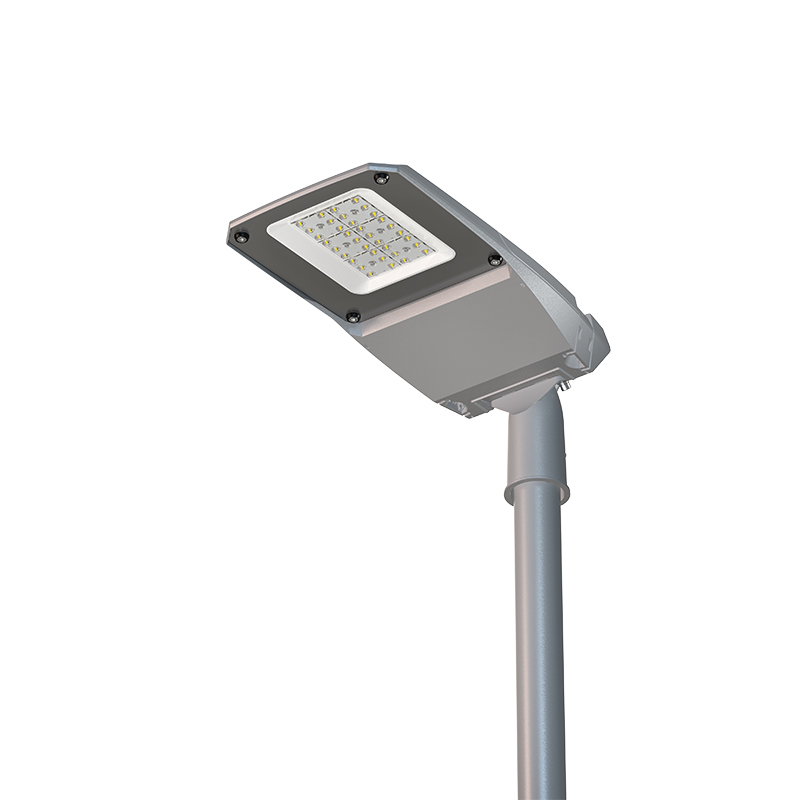

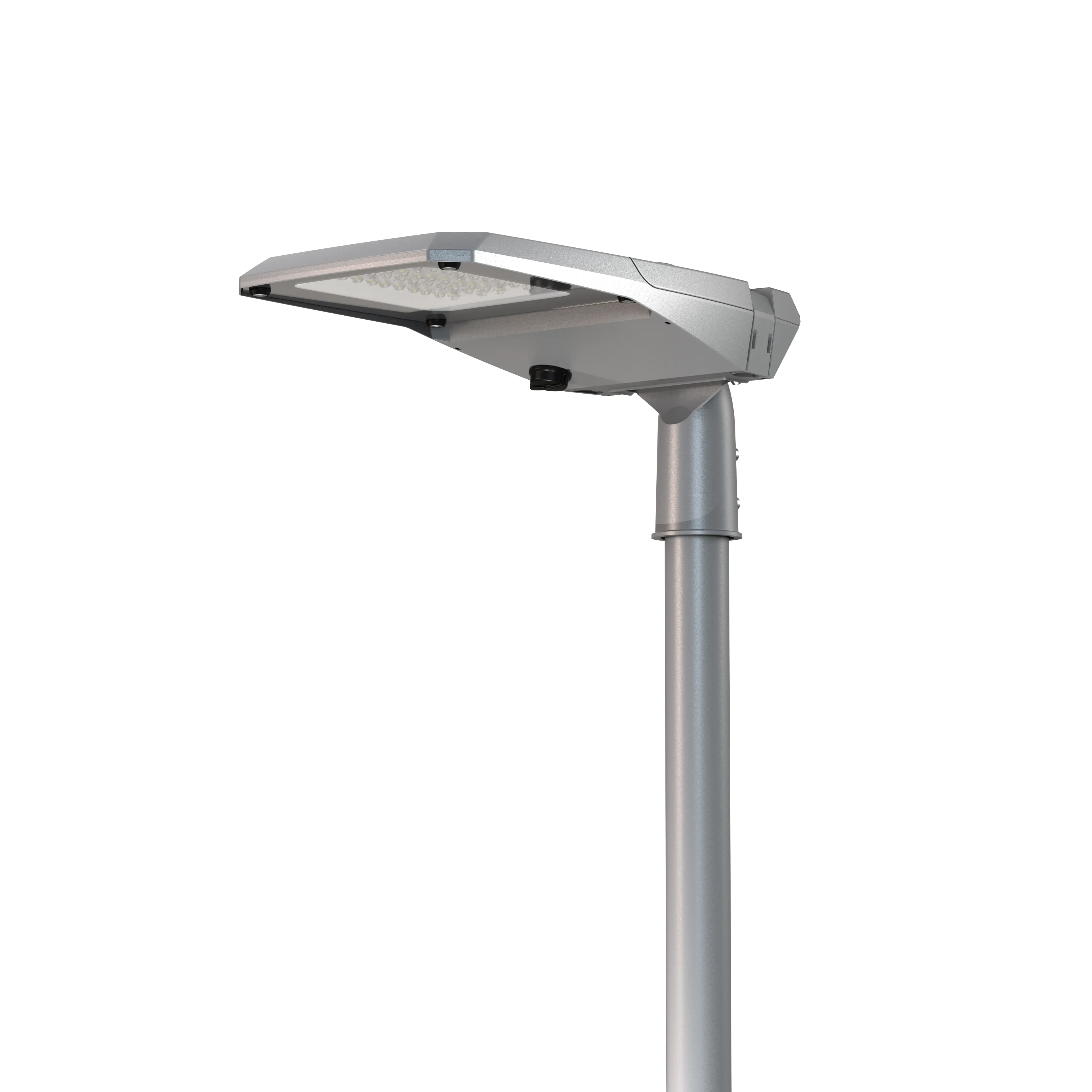

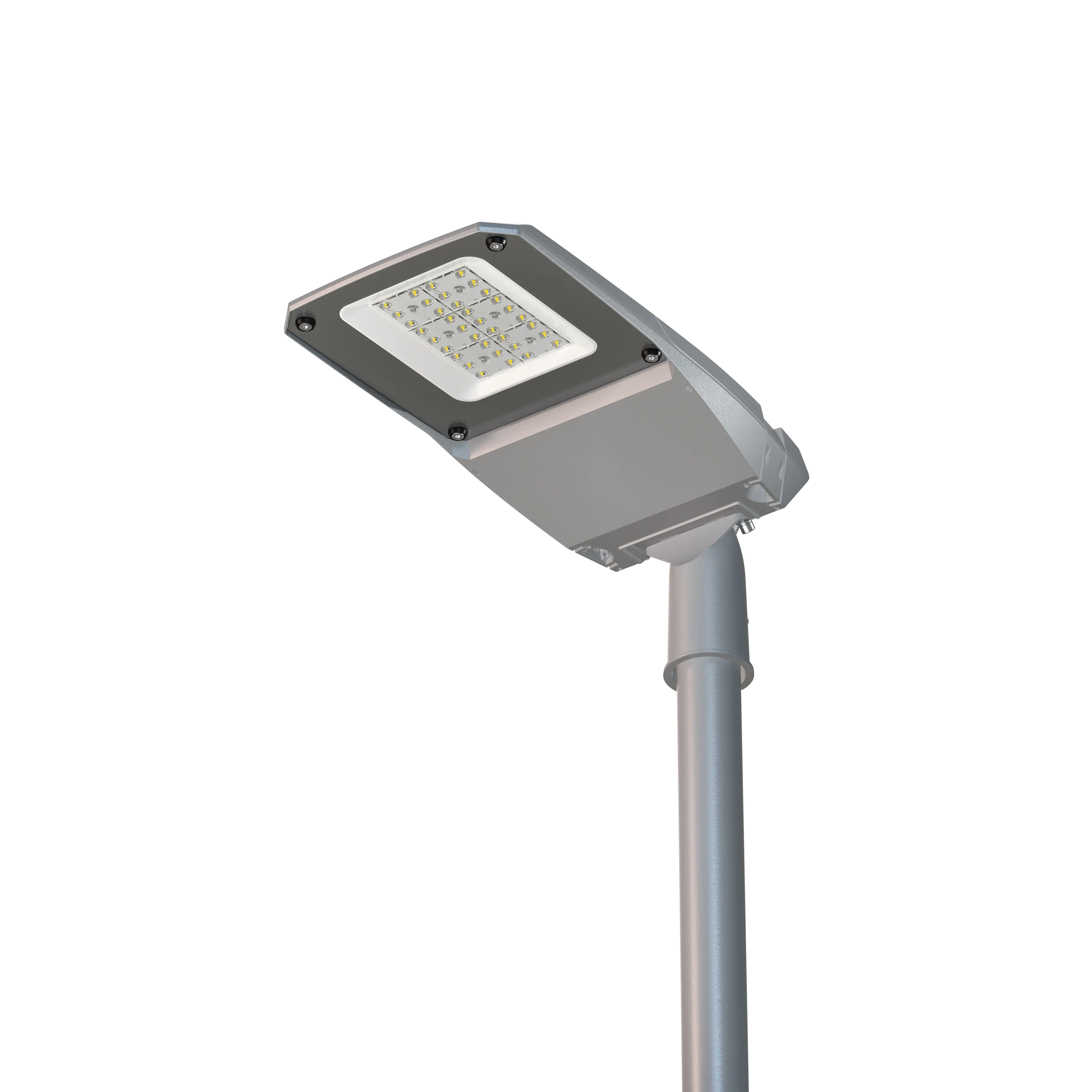

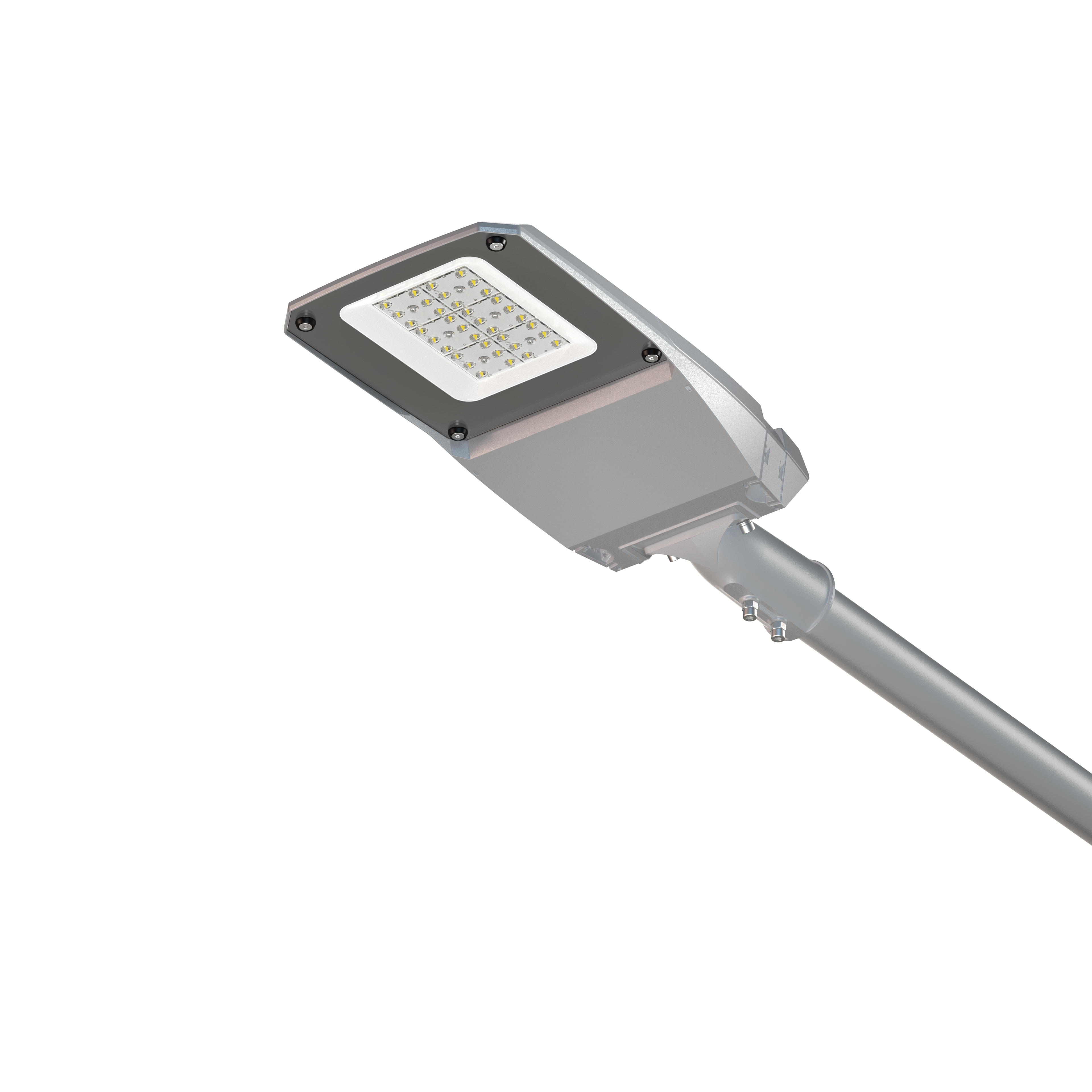

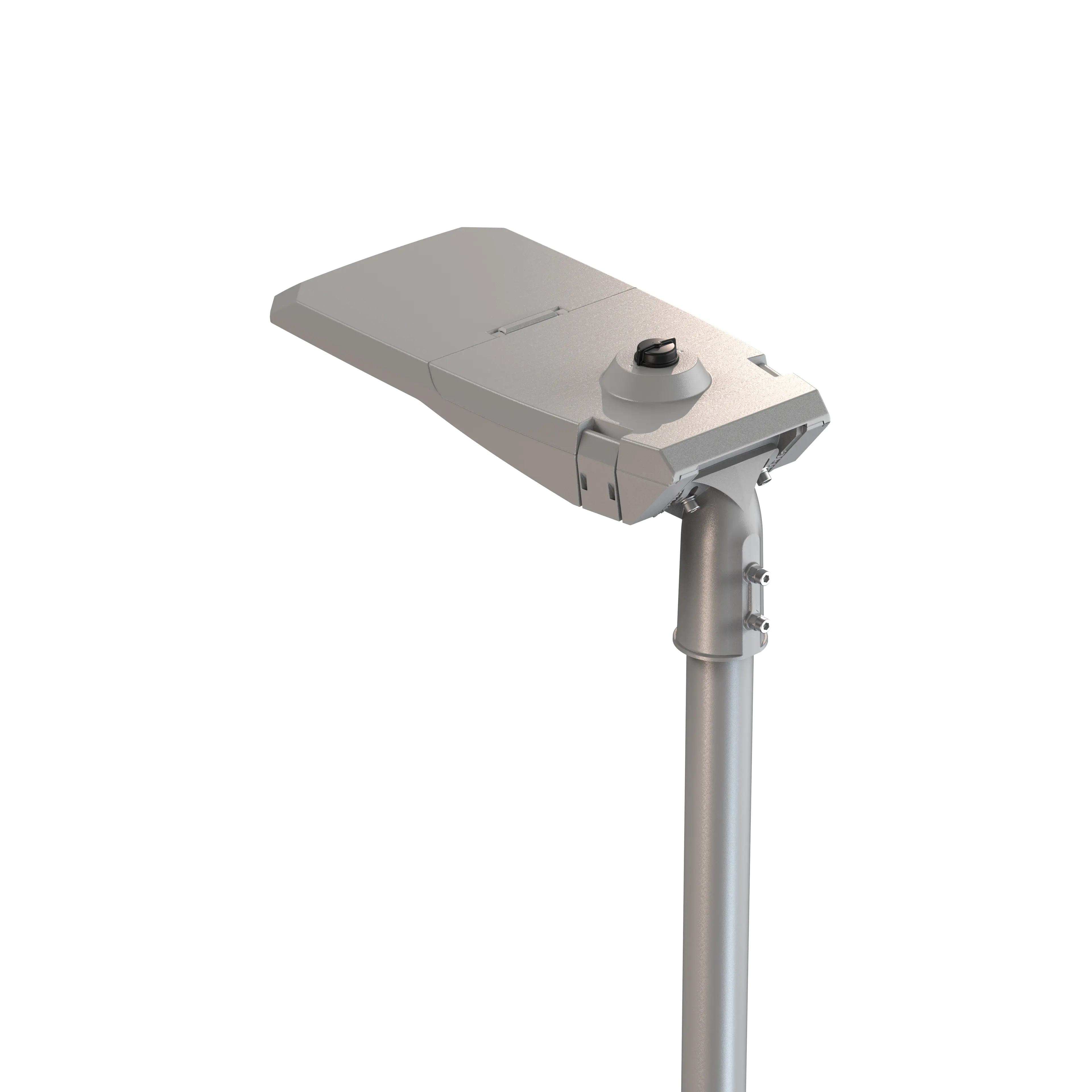

CB ENEC ENEC+ LED street light

ELUXPRO is a professional street light series for public lighting tenders, it was designed with a user-centric approach which can really achieve tool-free opening and maintenance, excellent performance in all aspects.

Contact us
PREV: Super high efficiency street lighting NEXT:Die-cast aluminum tool free street lamp

Specification

・4 sizes from 20W to 240W
・The global popular appearance
・Tempered glass cover
・Tool-free open and maintenance
・High efficiency up to 170lm/w
・ENEC+ LED module
・Multiple optic lenses
・Smart-ready, Zhaga on both top and downward
・Ø48/60/76 adaptor, post top or side entry
・Tilt adjustable ±15°(5° per step)

Details

Product model EL-SL15

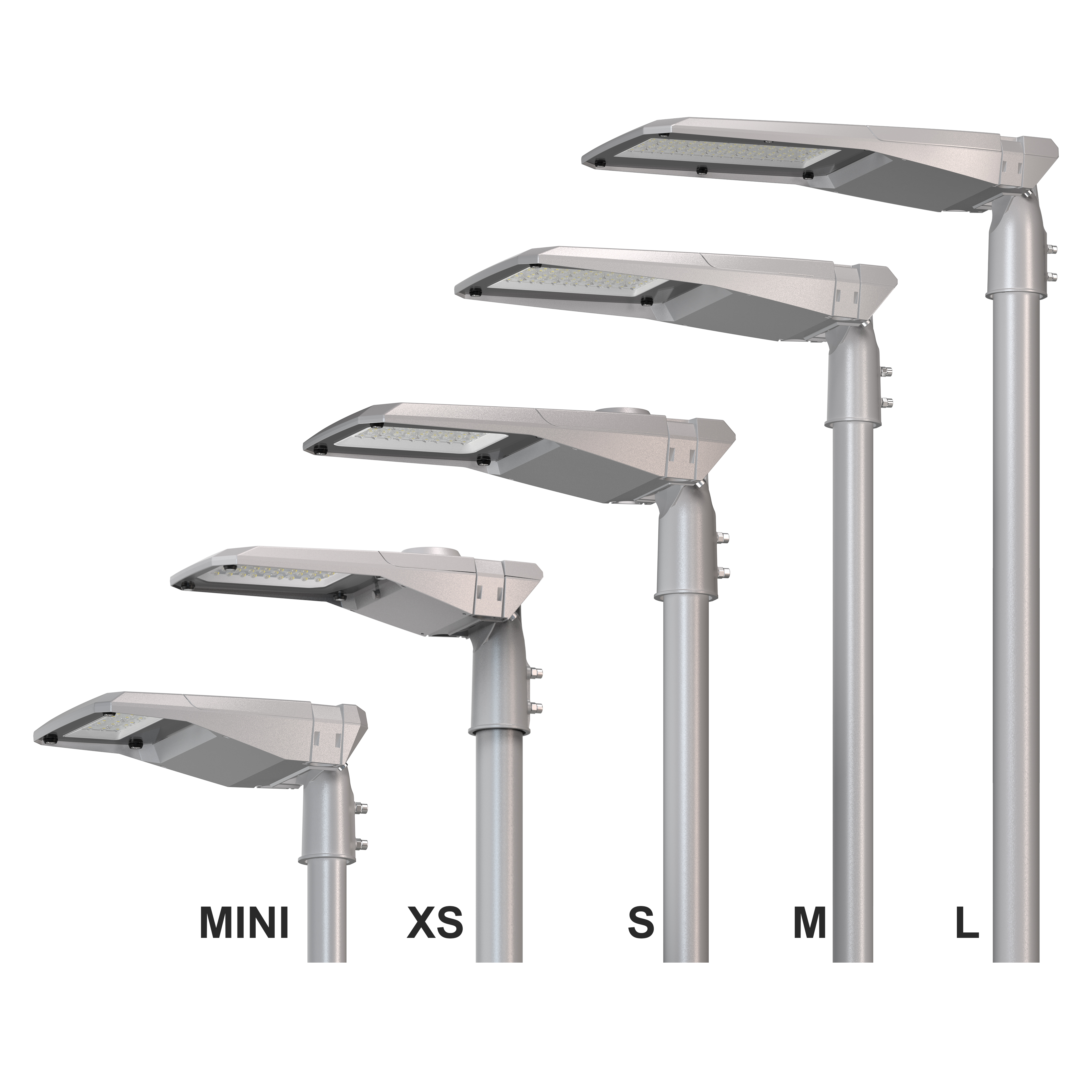

Size MINI/S/M/L
Nominal power 10-50W/50-100W/100-150W/150-240W
LED type 5050
CCT 1800-6500K
CRI Ra>70 (Ra>80 optional)
Max luminous efficiency 170lm/w
Max luminous flux 40,800lm
Optics Type II/III/IV
Driver function On-Off /0-10V/Timer Dim./DALI2/D4i
Insulation Class I/II
Glass cover Yes
Housing material Die-cast aluminum
IP Rating IP66
IK Rating IK09
Colour of finish Grey
Operation Temperature -40°C to +50°C
Mounting Post top/Side entry on pole
Pole diameter to fit Ø48/60/76
Extension interface NEMA/ZHAGA
Certificate CB/ENEC/CE/RoHS
