All in one solar street light

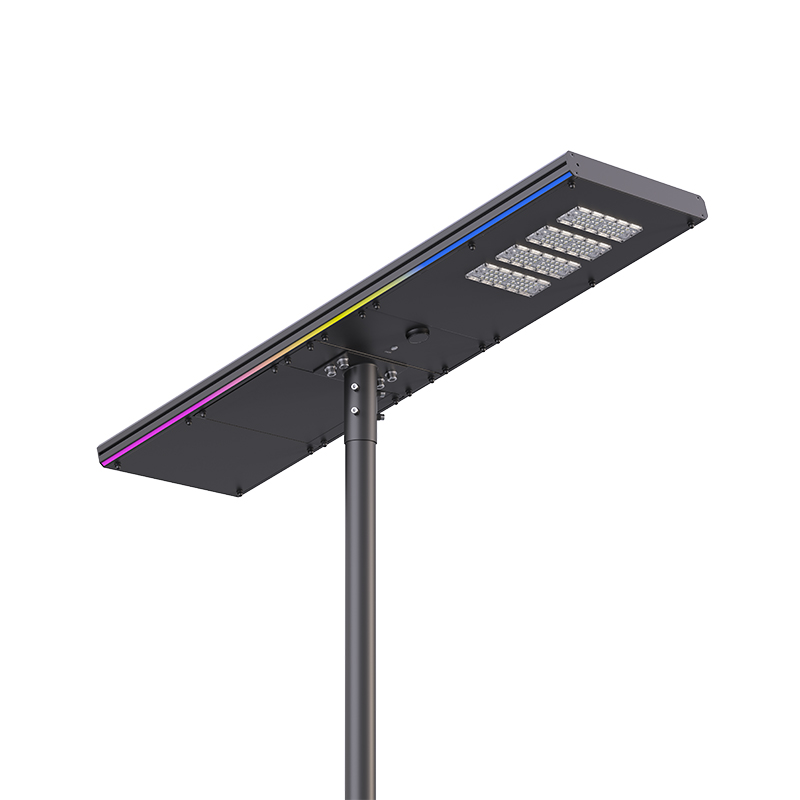

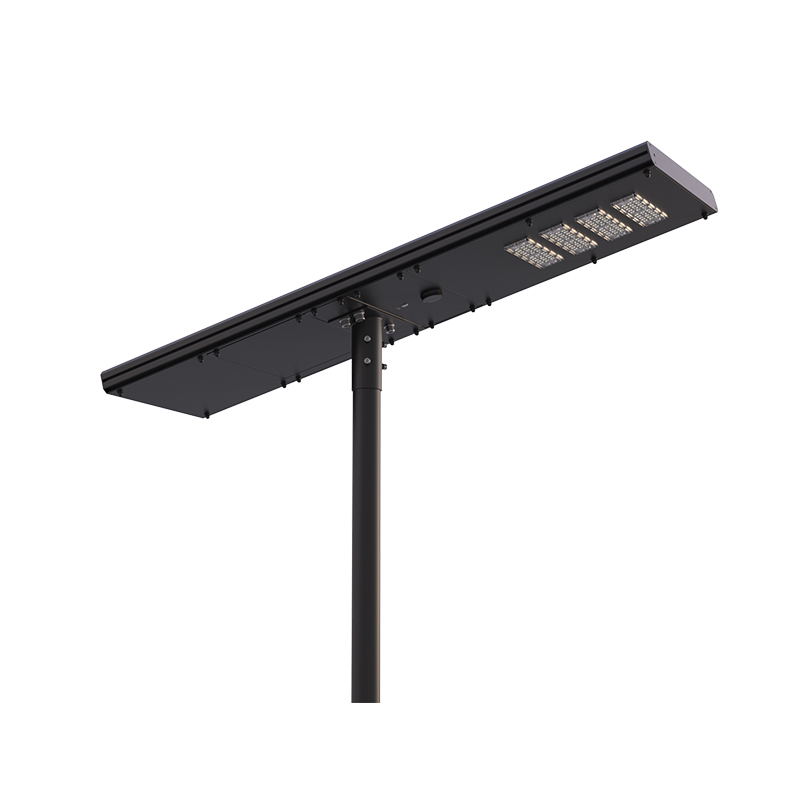

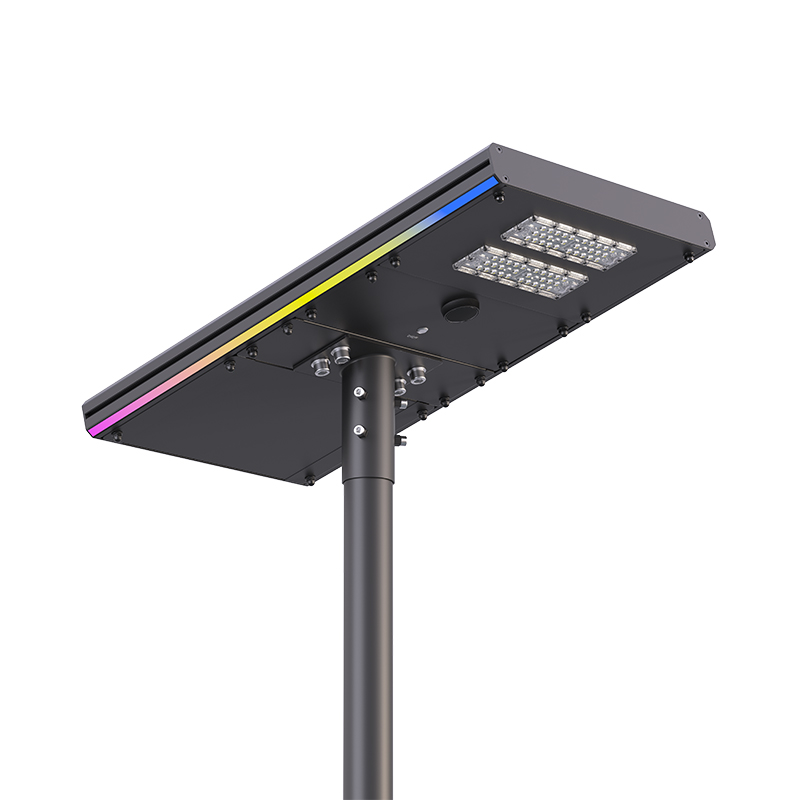

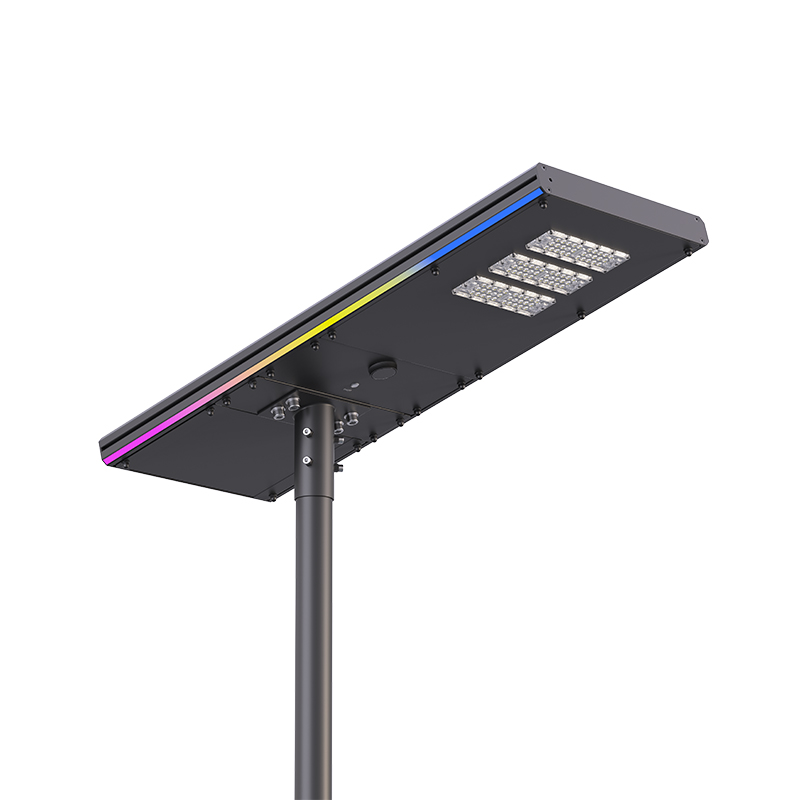

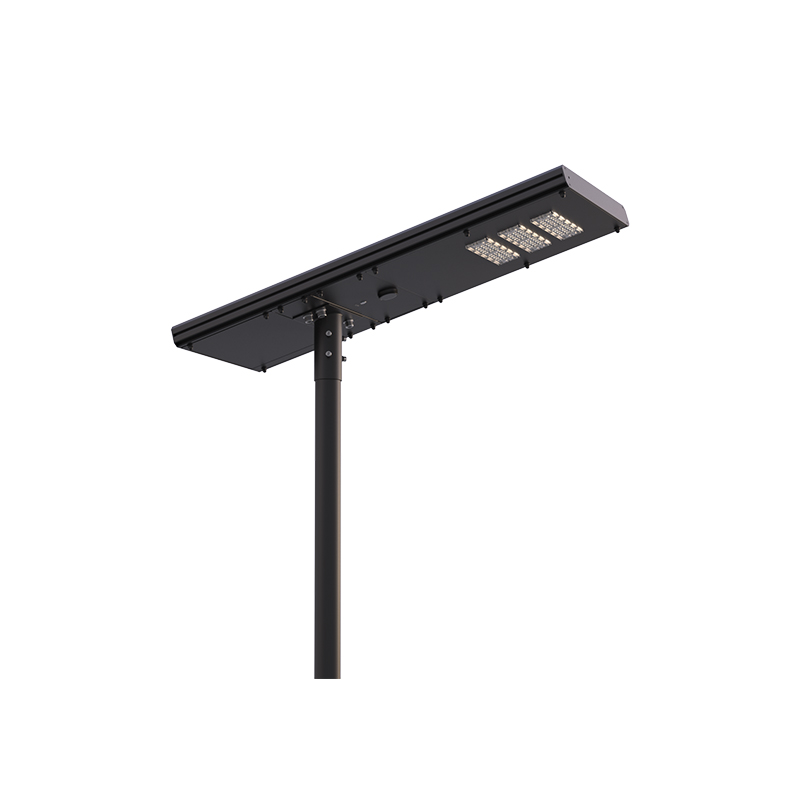

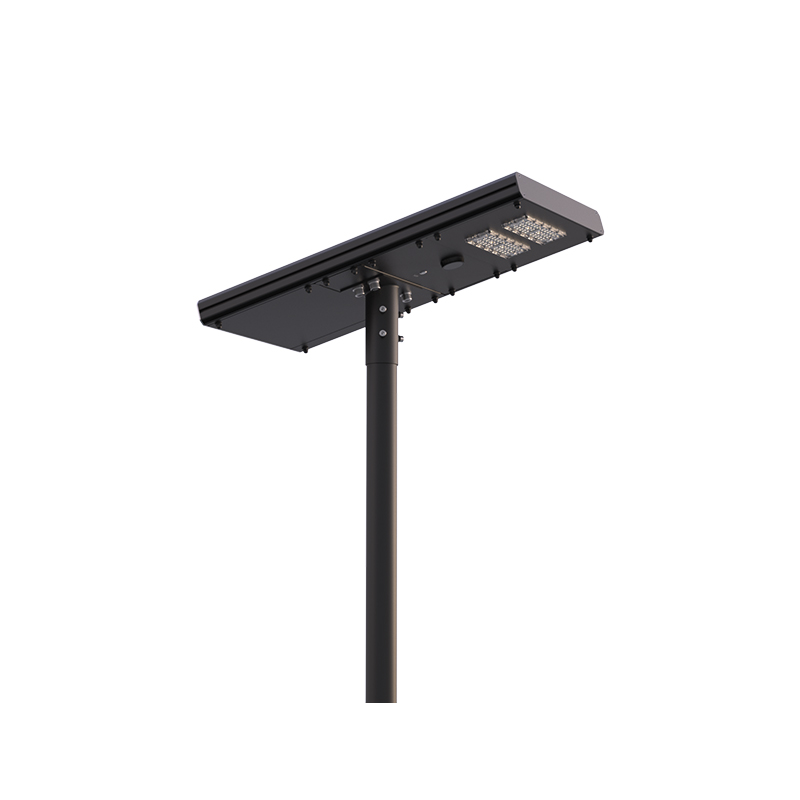

The SKY EYE Solar Street Light series is a smart innovation developed by the EVERLITE team. This advanced solar lighting system combines bifacial solar panels with high conversion efficiency, high-luminous LED lamps, long-lasting eco-friendly batteries featuring an intelligent battery management system, and stable, intelligent controllers.

With such a smart and compact design, the SKY EYE Solar Street Light is exceptionally easy to install, maintain, and transport, offering users a highly convenient and efficient off-grid lighting solution.

Contact us
PREV: Professional solar street light system NEXT:High quality bright all in one solar lighting

Specification

・Versatile solar power system with multi-functional capabilities
・RGB decorative strip lighting on the frame for enhanced visibility and a distinctive look
・Adjustable tilt design for both LED modules and the solar panel, ensuring ideal performance
・High-efficiency LED chips delivering high 230lm/w
・MPPT solar controller supporting multi-time dimming and remote control functionality
・Optimized solar energy utilization for up to efficiency
・Optional PIR/motion sensor for enhanced functionality
・Simple installation and minimal maintenance costs, offering a practical and cost-effective solution
・Optional monitoring solution available

Details

Product model EL-ASL18
Type All in one

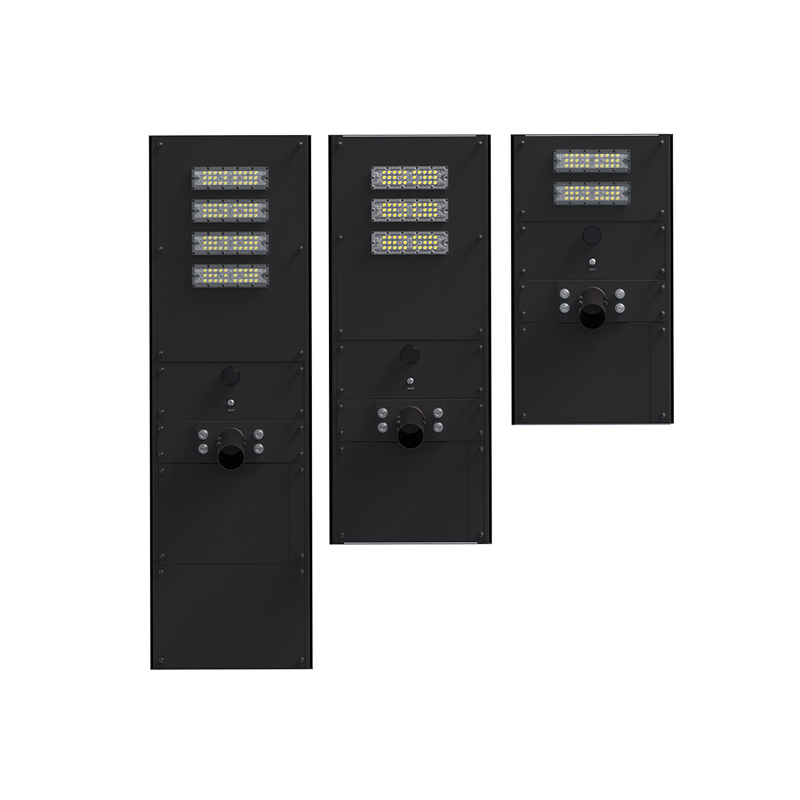

Size 2M/3M/4M
Max LED power 30W/60W/80W
LED type 5050
CCT 5700K (Other options upon request)
CRI Ra>70
Max luminous efficiency 210lm/w
Max luminous flux 16,800lm
Optics Type II
Housing material Profiled aluminum
Solar panel type Monocrystalline
Solar panel power(Wp) 70W/110W/140W
Battery type LiFePO4
Battery capacity 12.8V 30Ah/12.8V 60Ah/12.8V 75Ah
Solar controller type MPPT
Sensor PIR/Motion
Mounting Post top on pole
Mounting height 6-10m
Pole diameter to fit Ø76
Operation time 12h per day, 3 rainy day backup
Operation temperature 0°C to 60°C
Life cycles >2000 times

Download

Embrace a green future

As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
