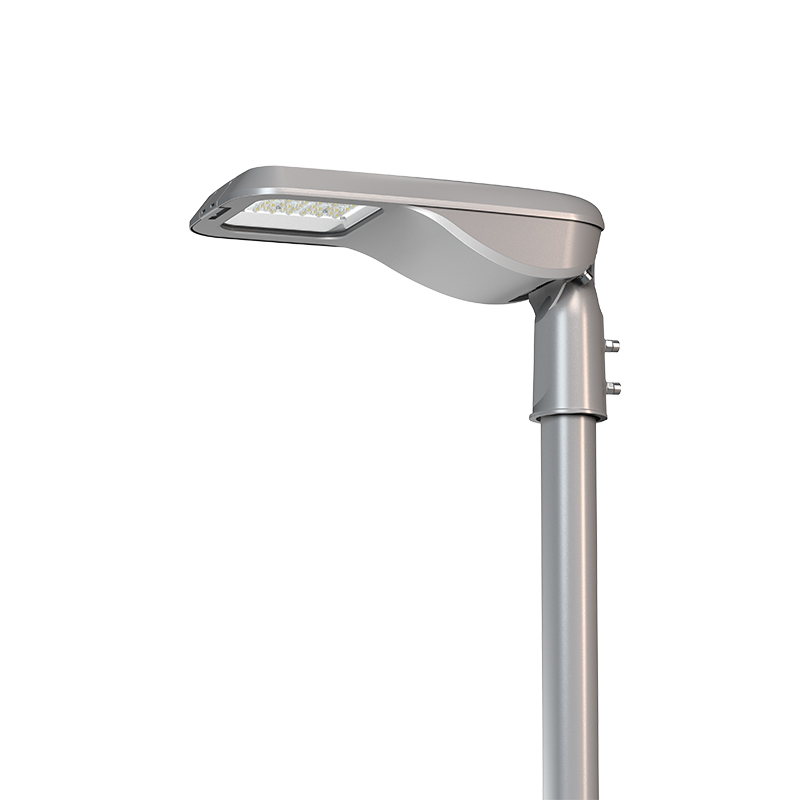

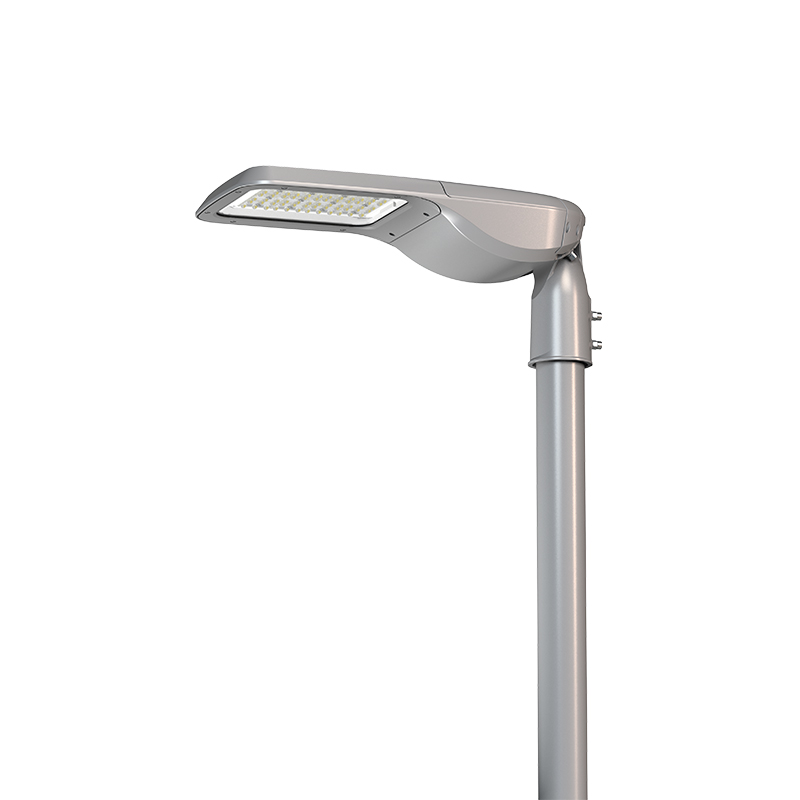

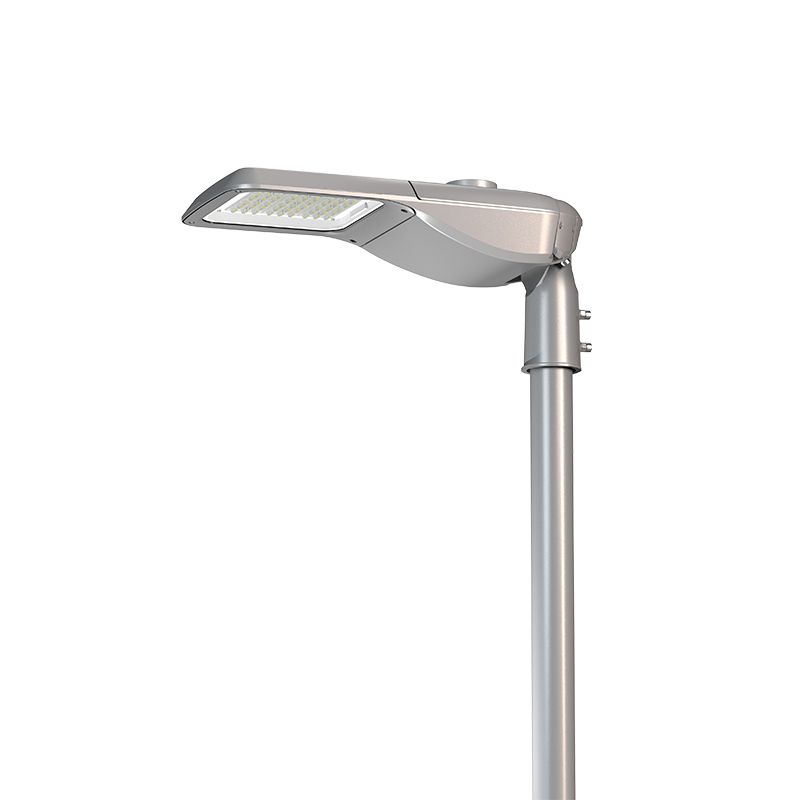

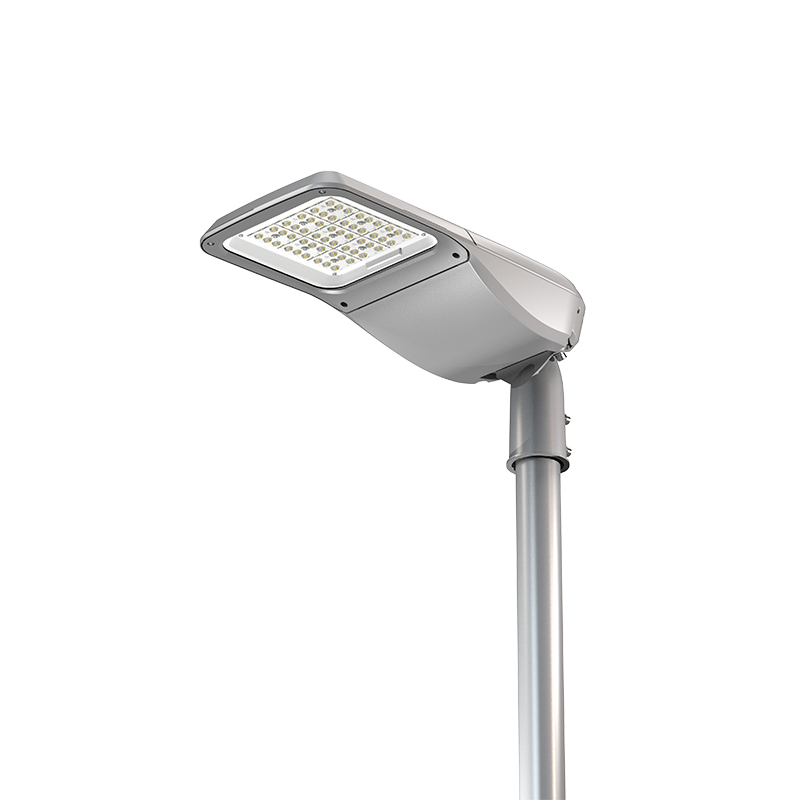

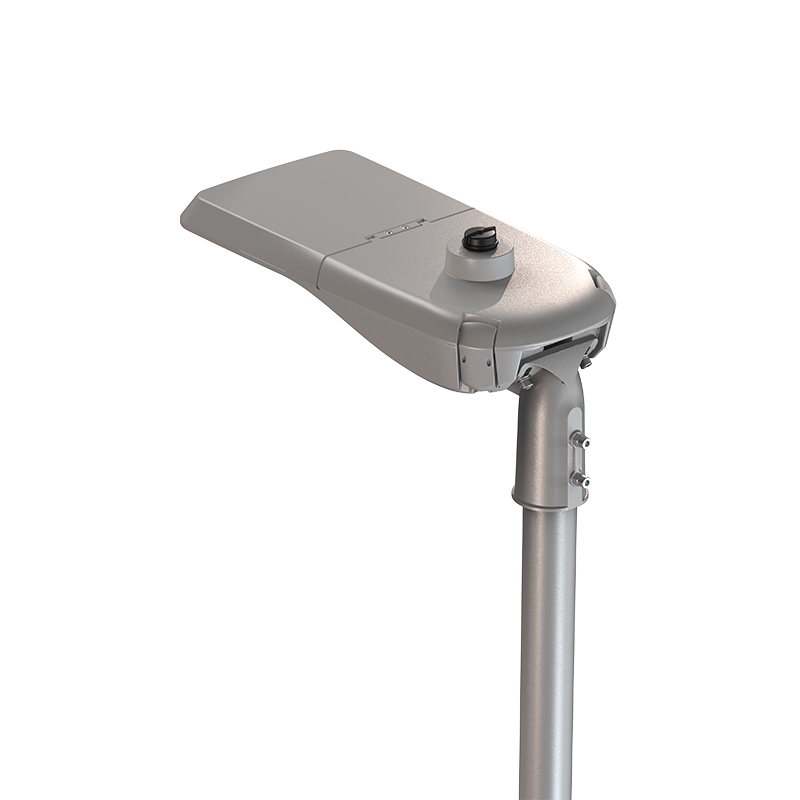

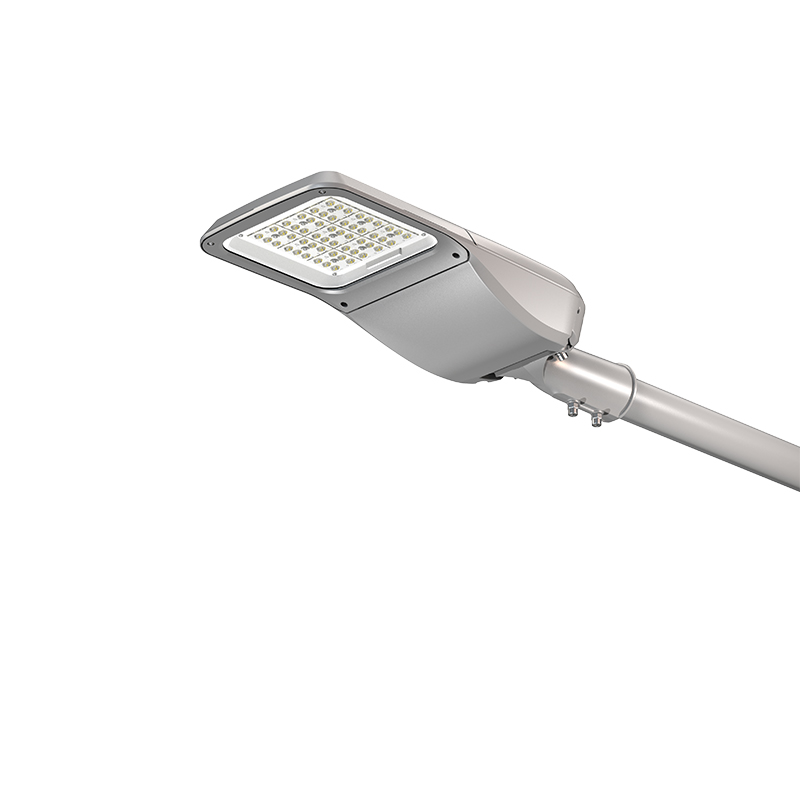

ELUX is An LED street lamp series with original design from everlite and is popular all over the world, exquisite appearance design, fine workmanship and consistent quality make it lasting vitality.
ELUX is An LED street lamp series with original design from everlite and is popular all over the world, exquisite appearance design, fine workmanship and consistent quality make it lasting vitality.
Specification
・4 sizes from 20W to 240W
・Tempered glass cover
・Up to IK10
・Tool-free open
・High efficiency up to 160lm/w
・Multiple optic lenses
・Compatible with NEMA/ZHAGA on the top
・Ø48/60/76 adaptor, post top or side entry
・Tilt adjustable ±15°(5° per step)
Details
| Product model | EL-SL68 |
| Size | MINI/S/M/L |
| Nominal power | 10-50W/50-100W/100-150W/150-240W |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 (Ra>80 optional) |
| Max luminous efficiency | 170lm/w |
| Max luminous flux | 40800lm |
| Optics | Type II/III/IV |
| Driver function | On-Off /0-10V/Timer Dim./DALI2/D4i |
| Insulation | Class I/II |
| Glass cover | Yes |
| Housing material | Die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK09(Up to IK10) |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +50°C |
| Mounting | Post top/Side entry on pole |
| Pole diameter to fit | Ø48/60/76 |
| Extension interface | NEMA/ZHAGA |
| Certificate | CB/ENEC/CE/RoHS |
