HD broadcasting sports lighting UL

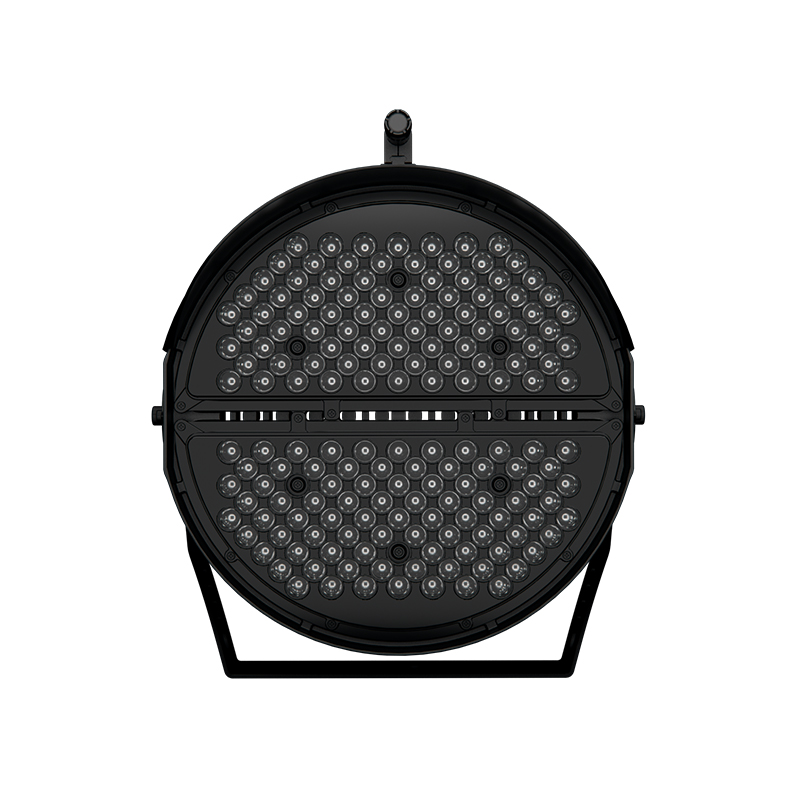

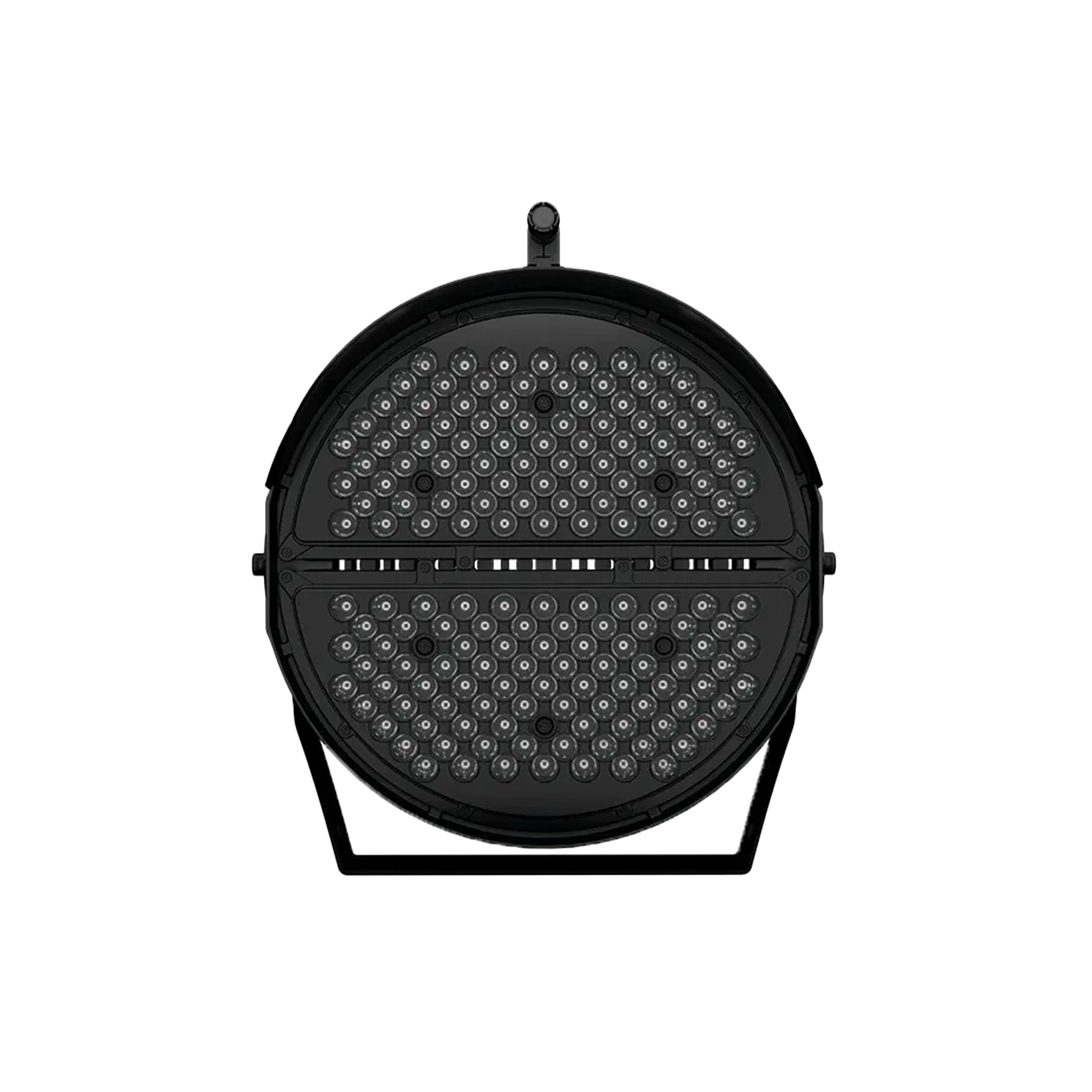

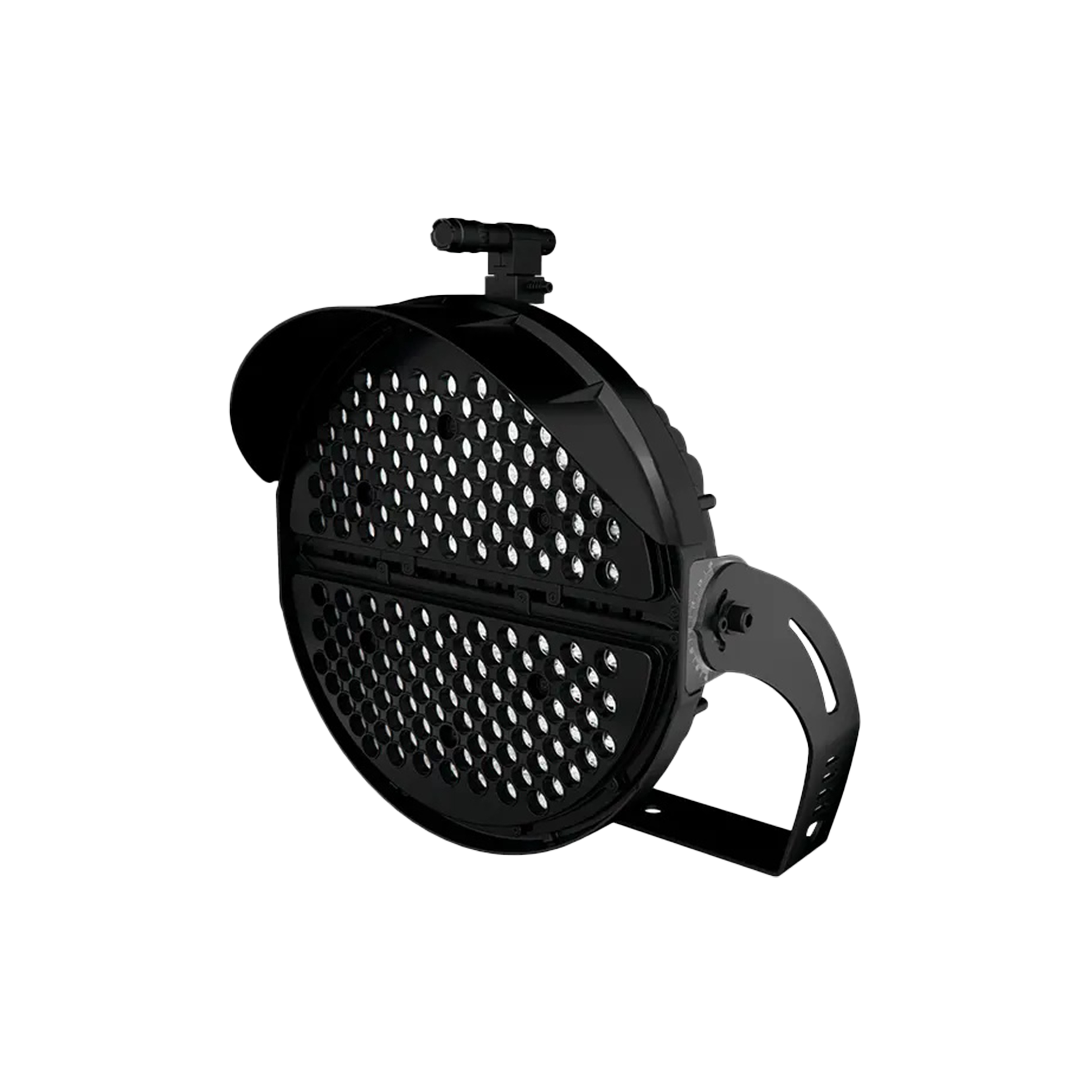

APPLO is an ultra-high-performance round shaped stadium lighting with 3 sizes from 300W to 1600W, CRI&TLCI more than 96, low flicker rate less than 1%, R9 value more than 45, narrow beam angles, which specialized for HD TV broadcasting.

Contact us
PREV: ENEC professional stadium lighting NEXT:No next product

Specification

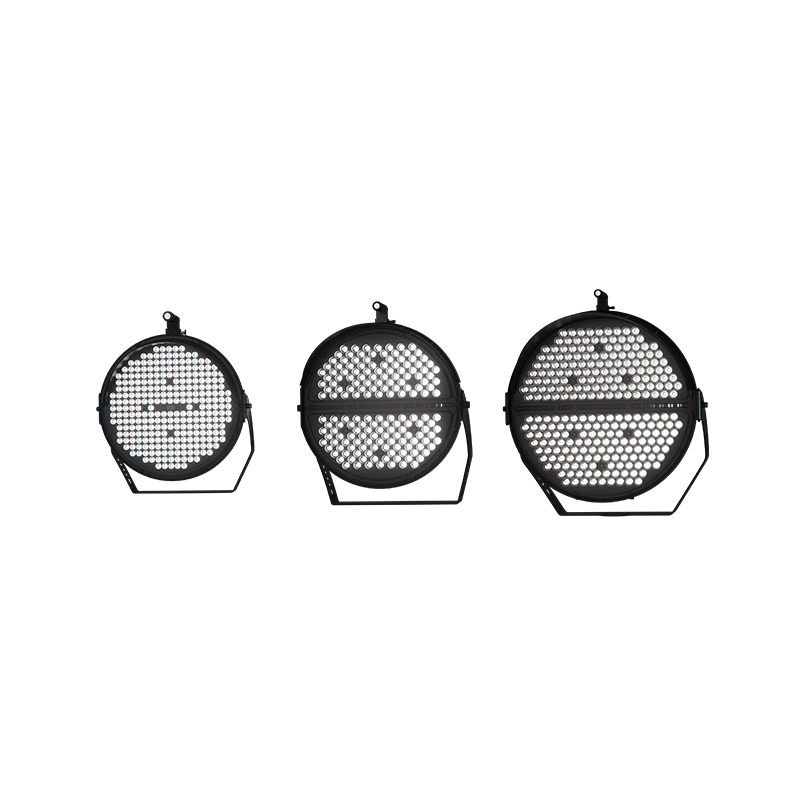

・3 sizes from 600-1600W
・High pressure 1800T die-cast aluminum housing
・High power CREE or SAMSUNG LED
・The high sports light standard CRI&TLCI>96
・Designed for HDTV broadcasting
・Narrow beam angles for high mast up to 50m

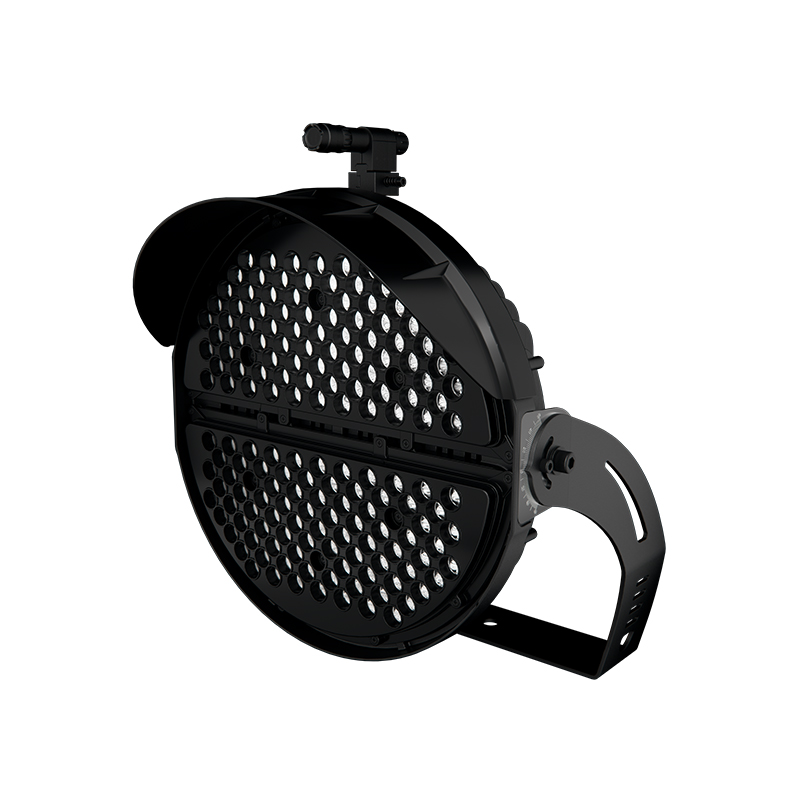

・360° light cut off anti-glare device plus the external light shield gives 0 light overflow
・Comfortable lighting environment and no light pollution

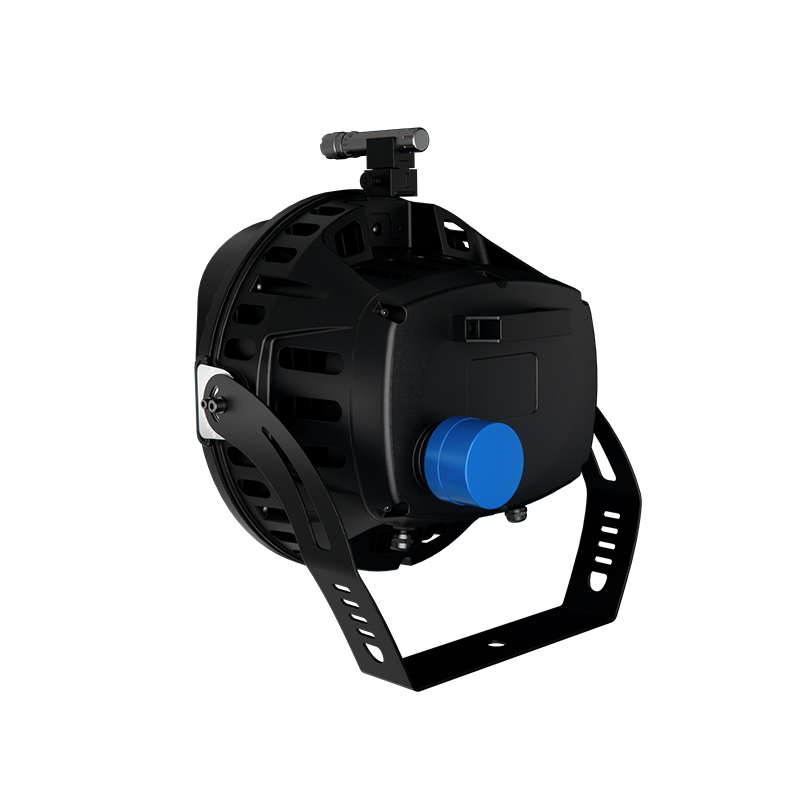

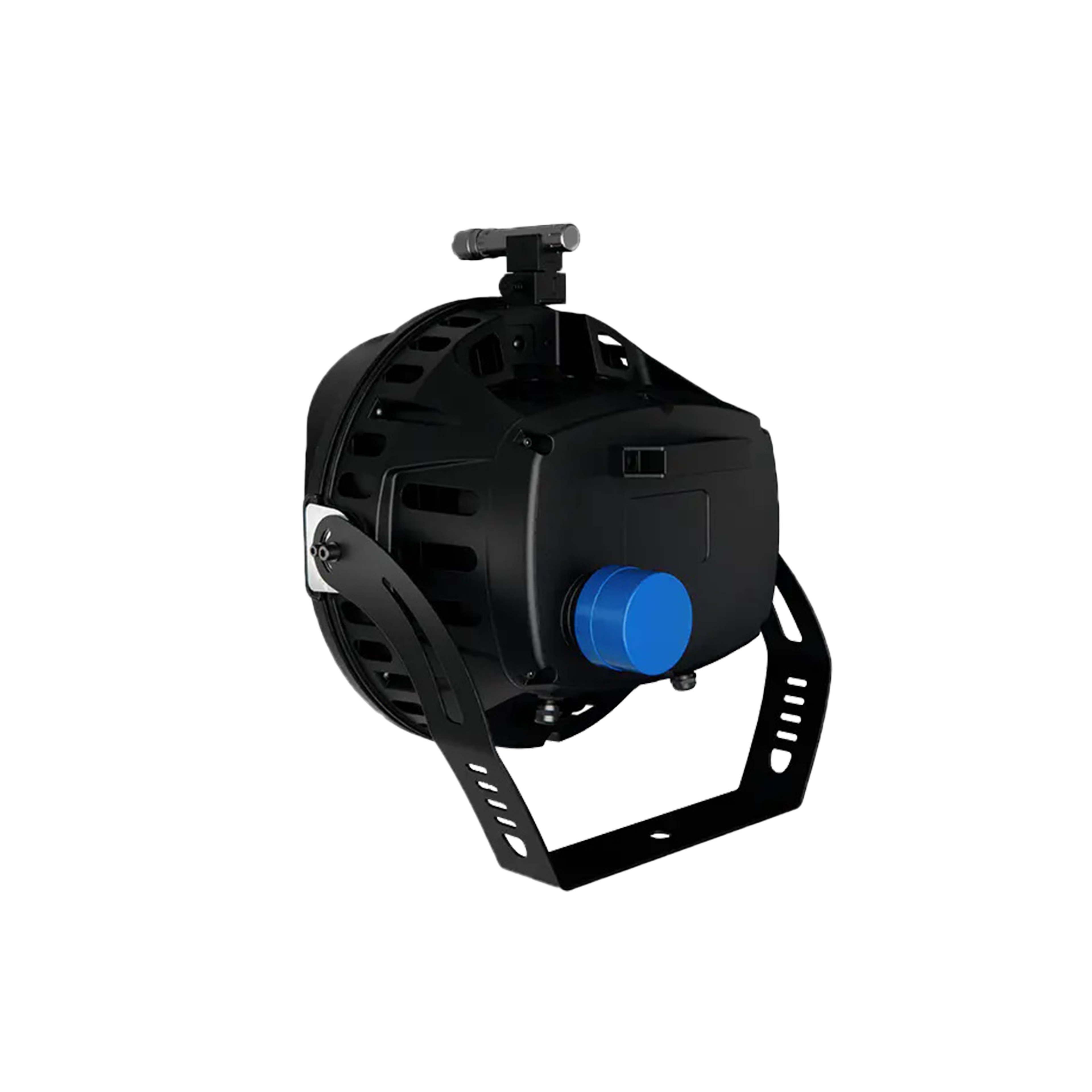

・Both of driver built-in and driver remote installation solution available

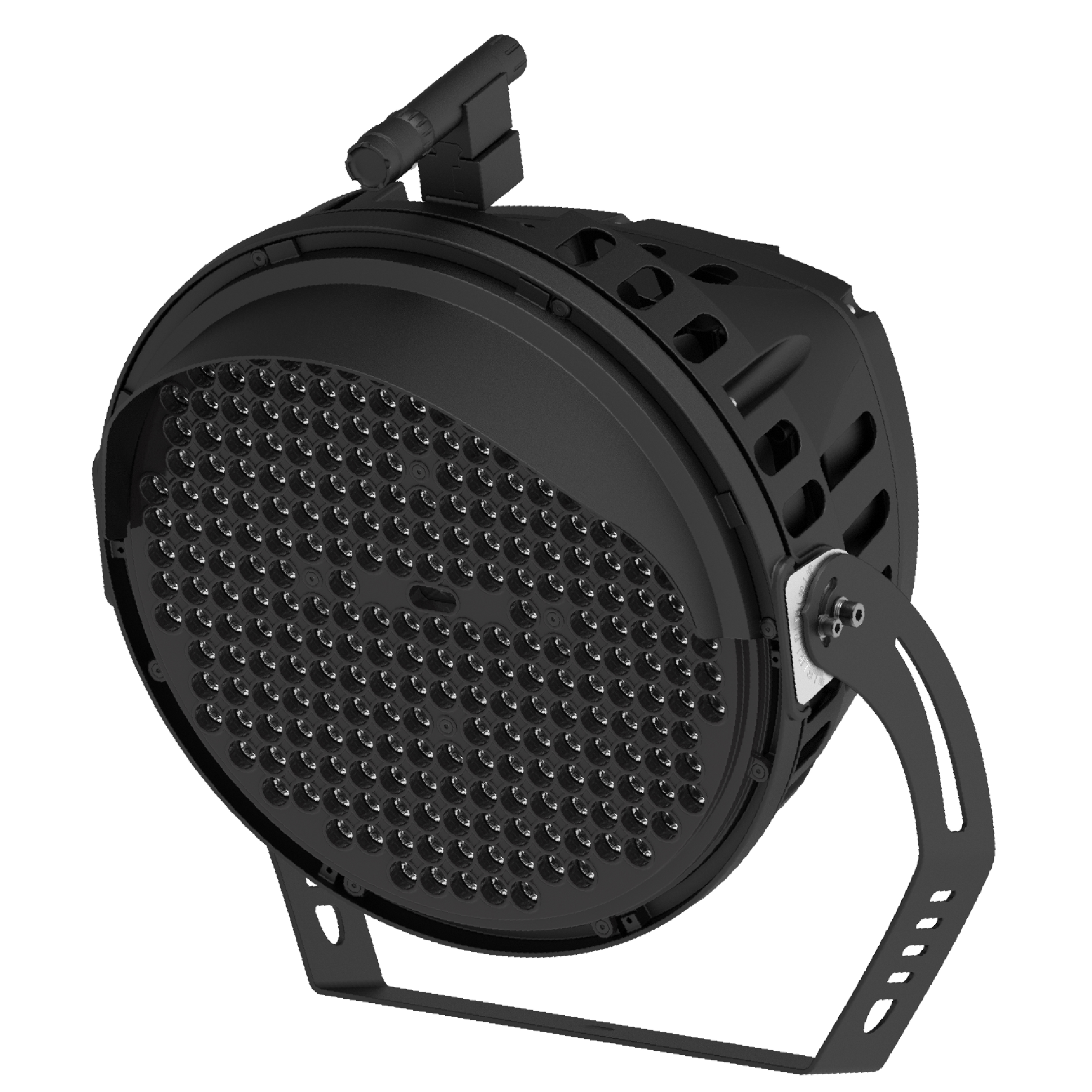

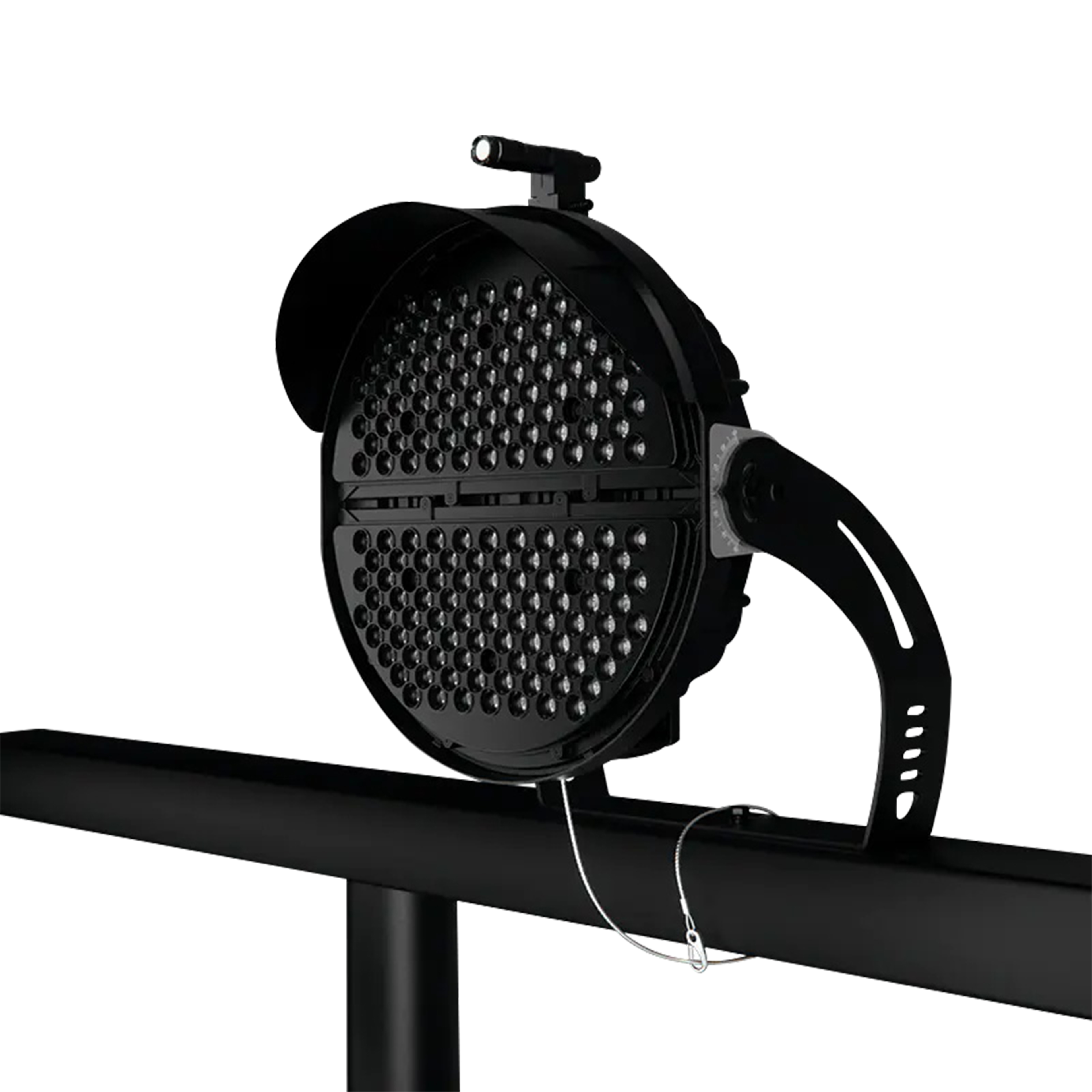

・With aiming device for easy installation and commissioning
・DALI/DMX control

Details

Product model EL-FL68

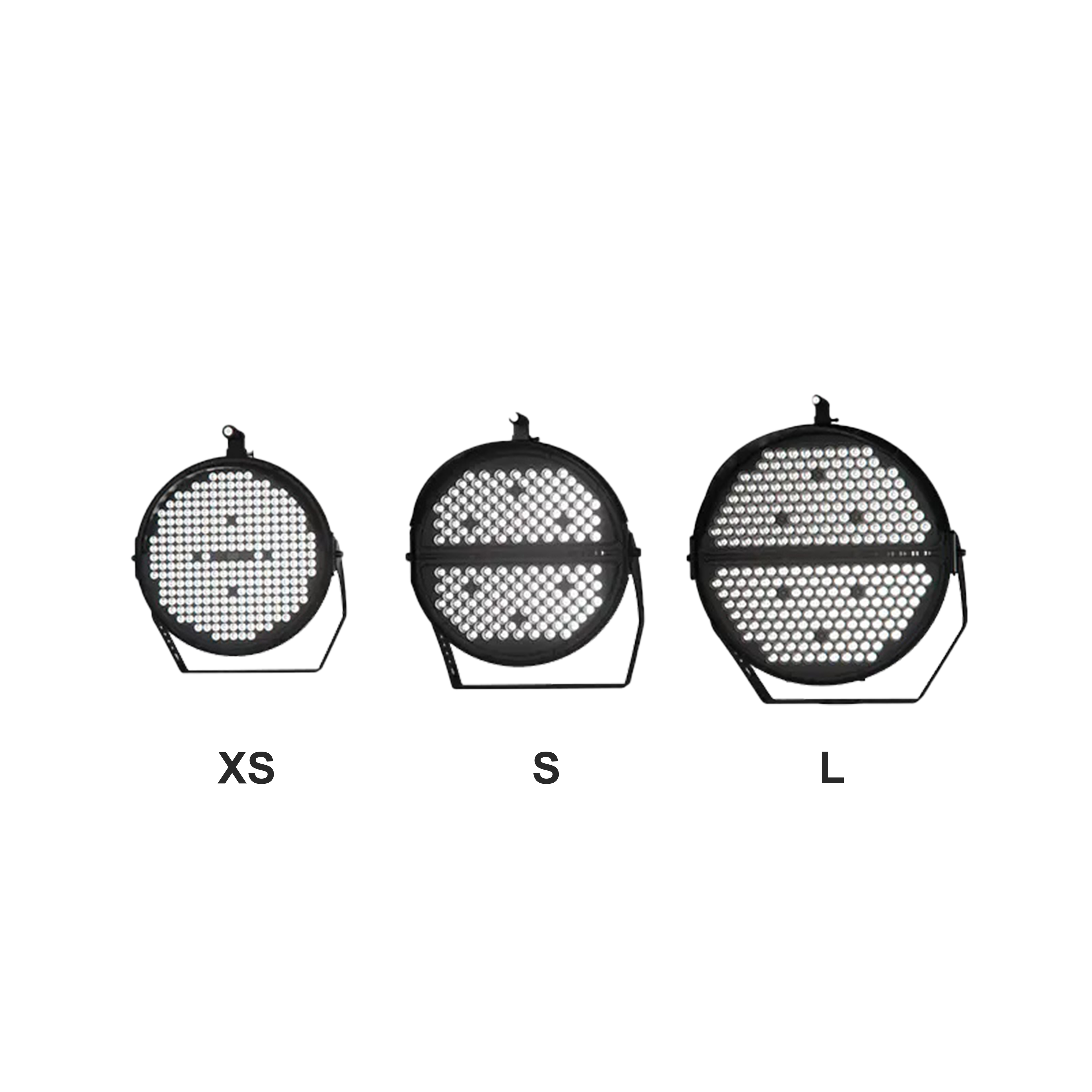

Size XS/S/L
Nominal power 300-600W/510-1150W/910-1600W
Max projected area
LED type 3535
CCT 5700K (Others upon request)
CRI Ra>96
Max luminous efficiency 100lm/w
Max luminous flux 160,000lm
Beam angle 12-60°(Symmetric)
Driver function 0-10V/DALI/DMX
Insulation Class I
Housing material Die-cast aluminum
Glass cover No
IP Rating IP66
IK Rating IK10
Colour of finish Black

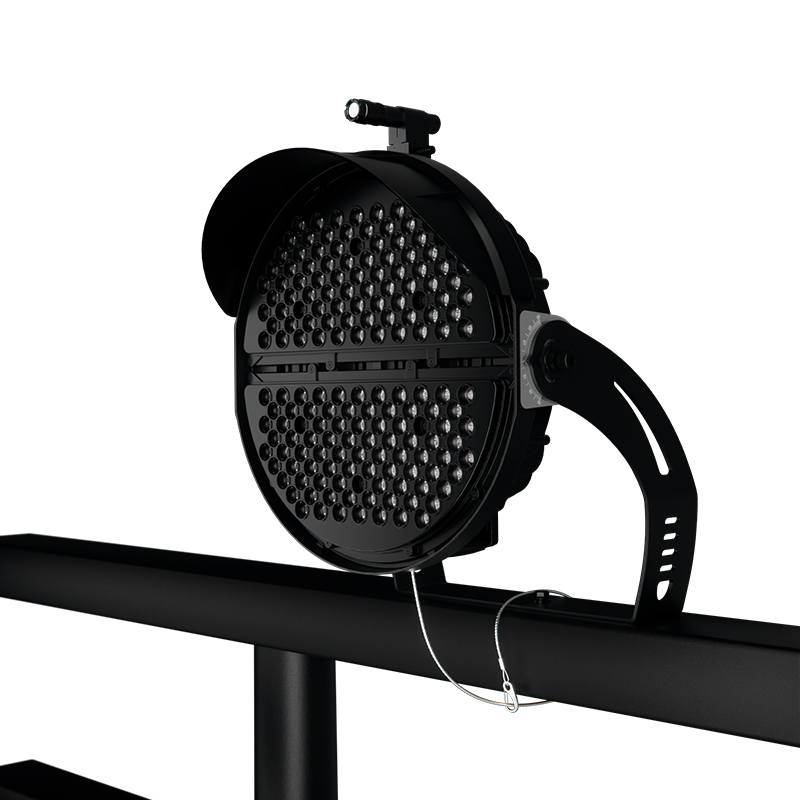

Mounting High mast/Wall mounted/Suspended
Operation Temperature -40°C to +40°C
Net weight
Certificate CB/ENEC/CE/RoHS
