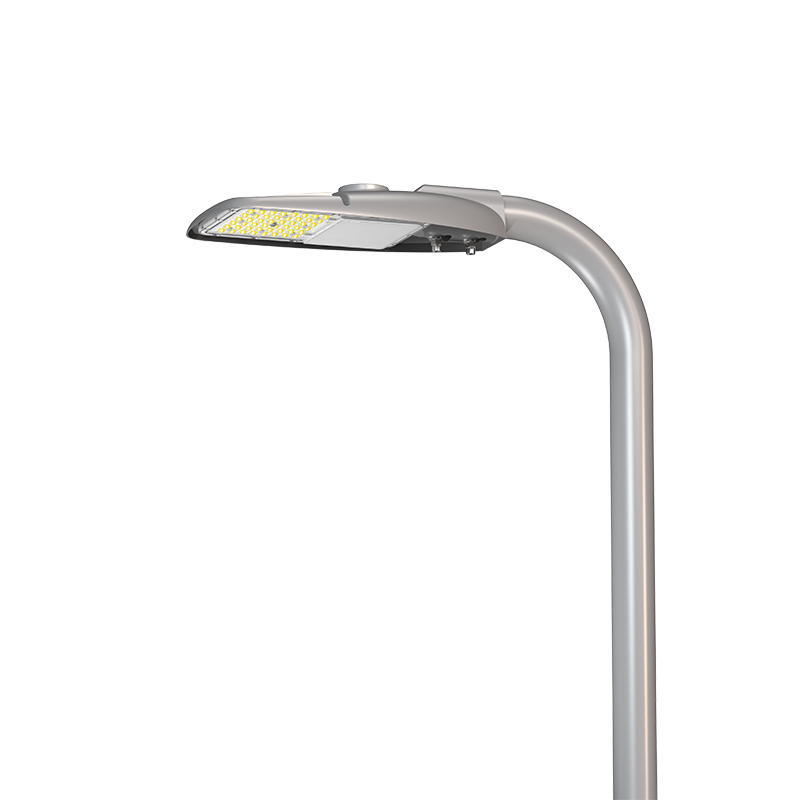

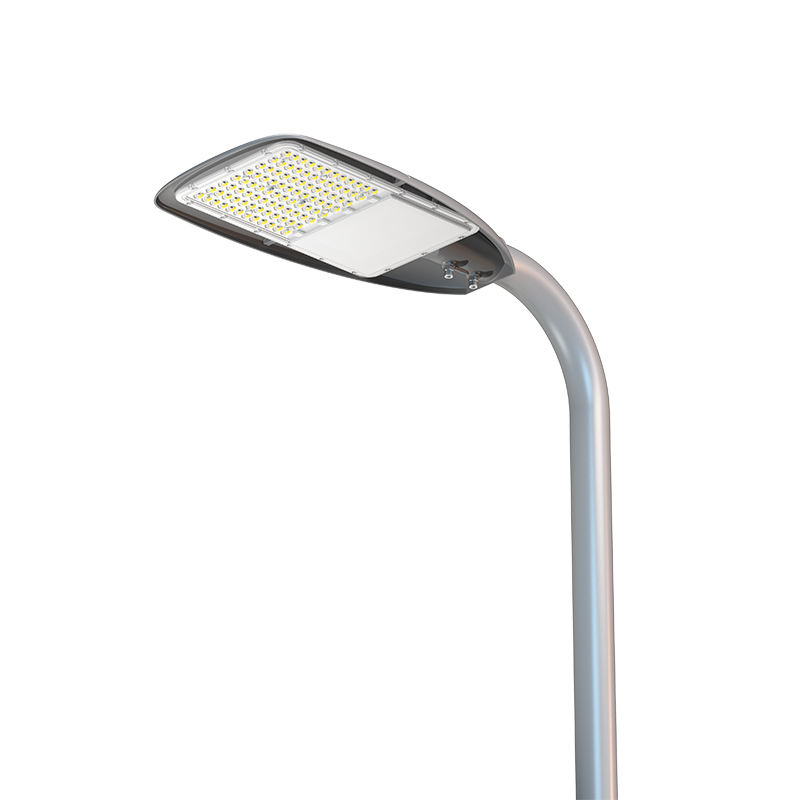

ECOBRIGHT SL12 is a high luminous performance LED street light series in ultimate lightweight design, super high efficiency up to 180lm/w which is a very good choice for traditional light source street light replacement projects, it is also a friendly street light option for distributors.
Specification
・3 sizes from 10W to 150W
・Ultra simplified structure
・Fins for fast cooling
・All-in-one PC lens cover
・High efficiency up to 180lm/w
・Professional type II-S optic for roadway
・Reliable waterproof performance
・Easy side entry installation
・Compatible with NEMA/ZHAGA on the top
Details
| Product model | EL-SL12 |
| Size | MINI/S/M |
| Nominal power | 10-50W/50-100W/100-150W |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 (Ra>80 optional) |
| Max luminous efficiency | 180lm/w |
| Max luminous flux | 27,000lm |
| Optics | Type II |
| Driver function | On-Off /1-10V/Timer Dim. |
| Insulation | Class I |
| Glass cover | No |
| Housing material | Die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +50°C |
| Mounting | Side entry on pole |
| Pole diameter to fit | Ø48(MINI), Ø60(S/M) |
| Extension interface | NEMA/ZHAGA |
| Certificate | CE/RoHS |
Download
Embrace a green future
As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
