ENEC professional stadium lighting

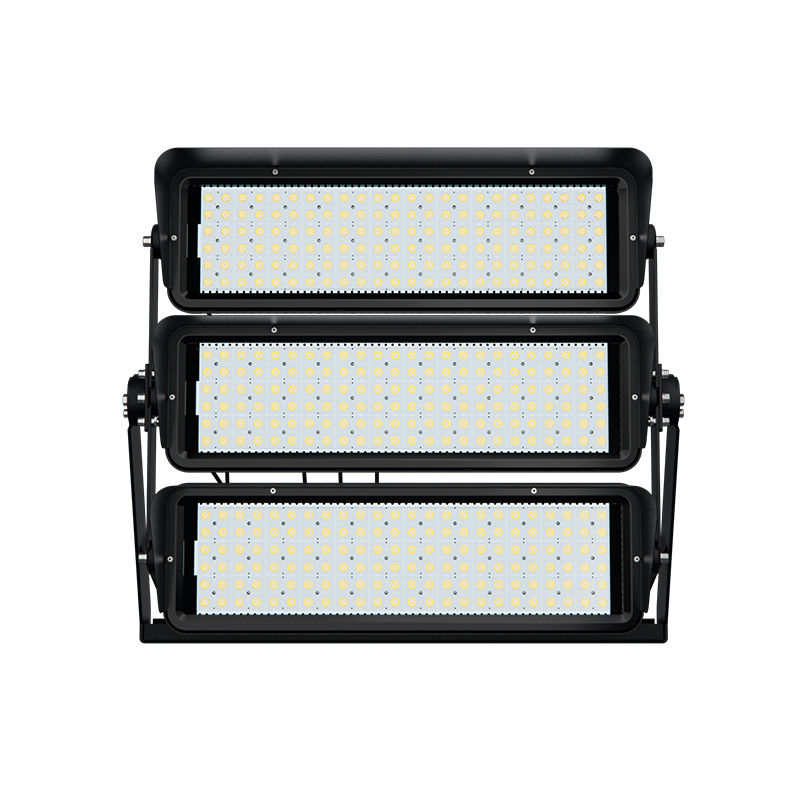

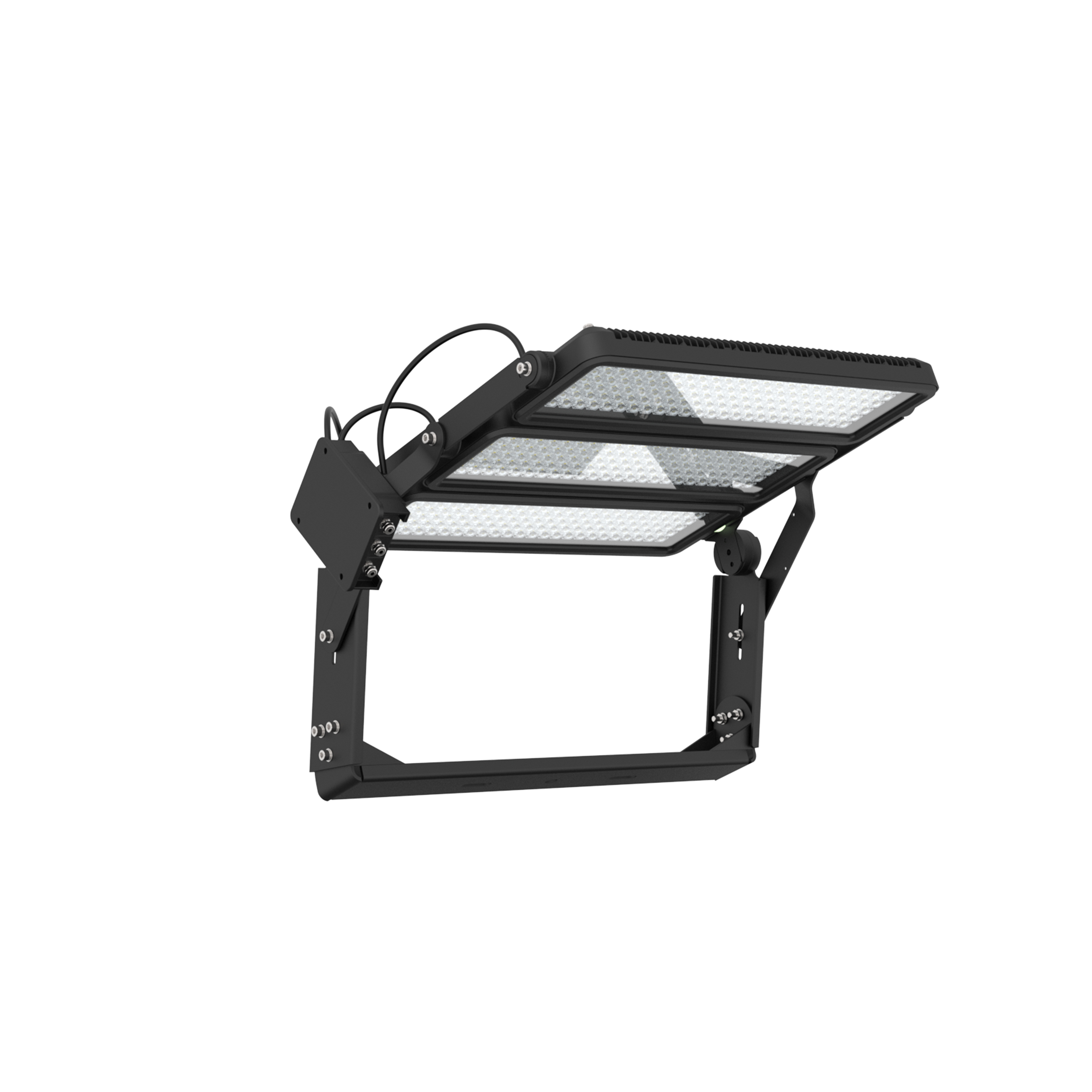

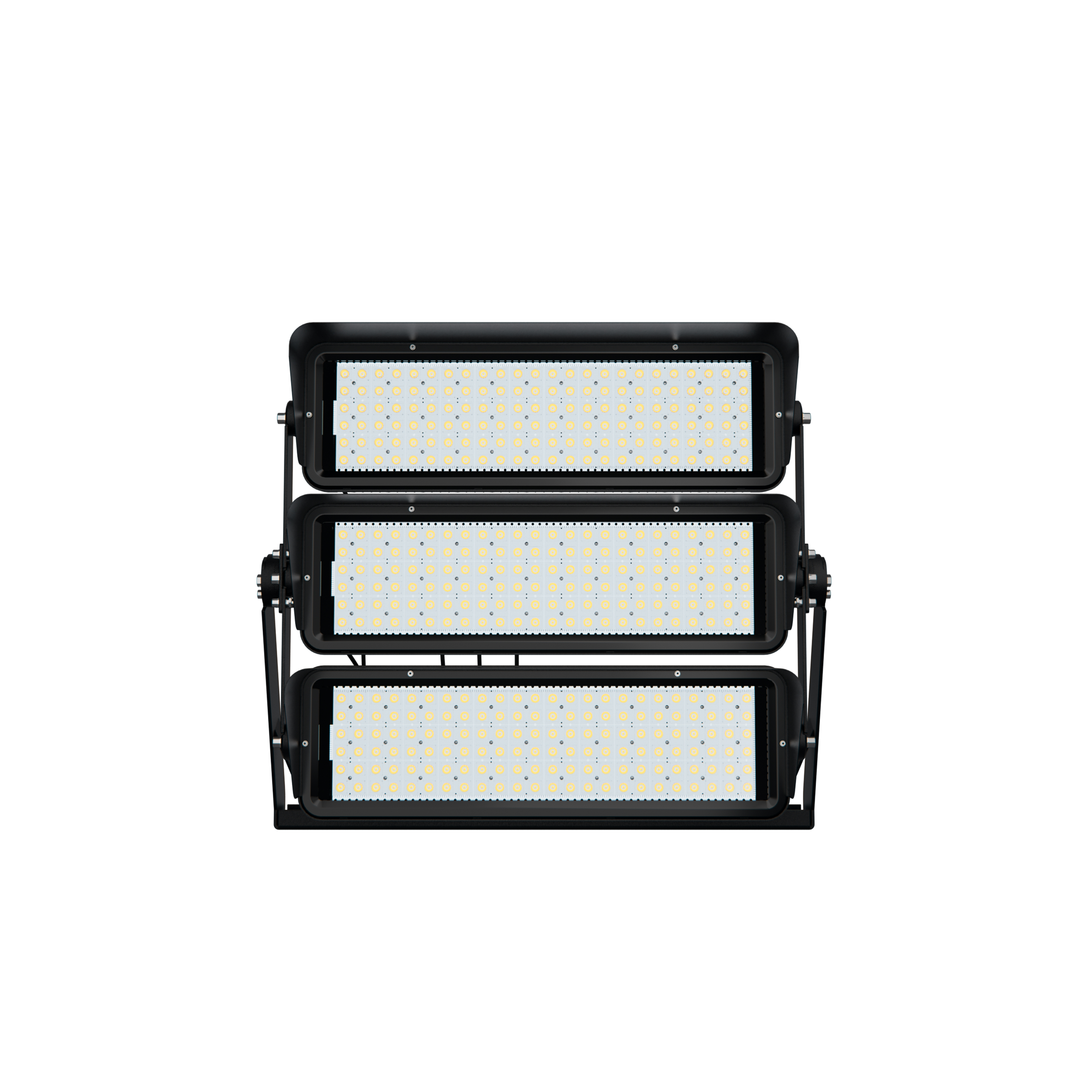

The ELUMI is a professional LED sports lighting series with a modular design and glass cover. It offers multiple optics options including narrow, medium, wide, and asymmetric beams, making it suitable for both simple and complex sports and area lighting applications. With professional glare control and robust construction, ELUMI delivers reliable performance for recreational fields as well as professional stadiums.

Contact us
PREV: IP66 outdoor LED flood light NEXT:HD broadcasting sports lighting UL

Specification

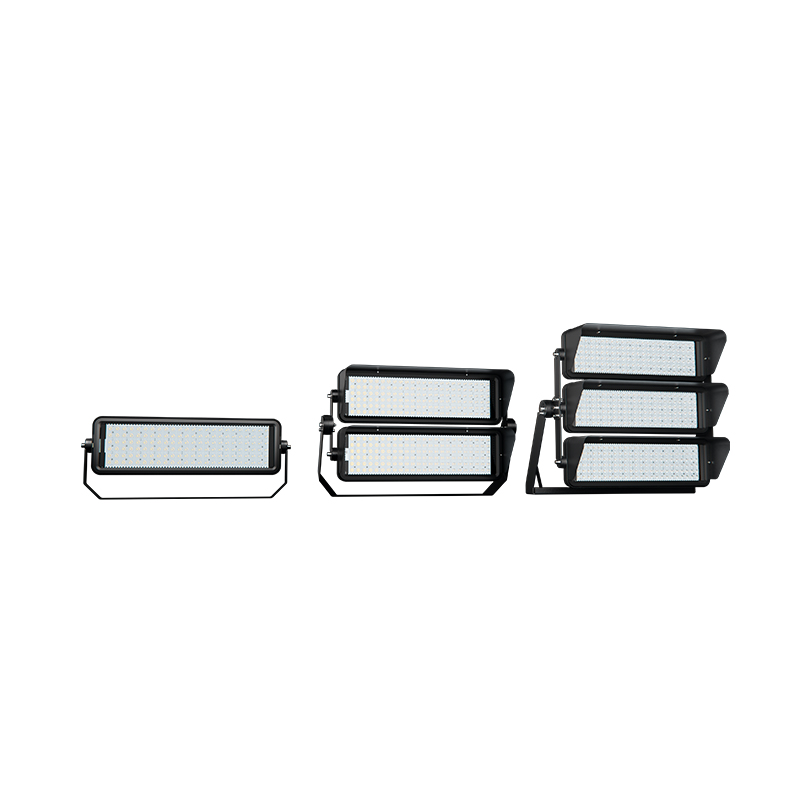

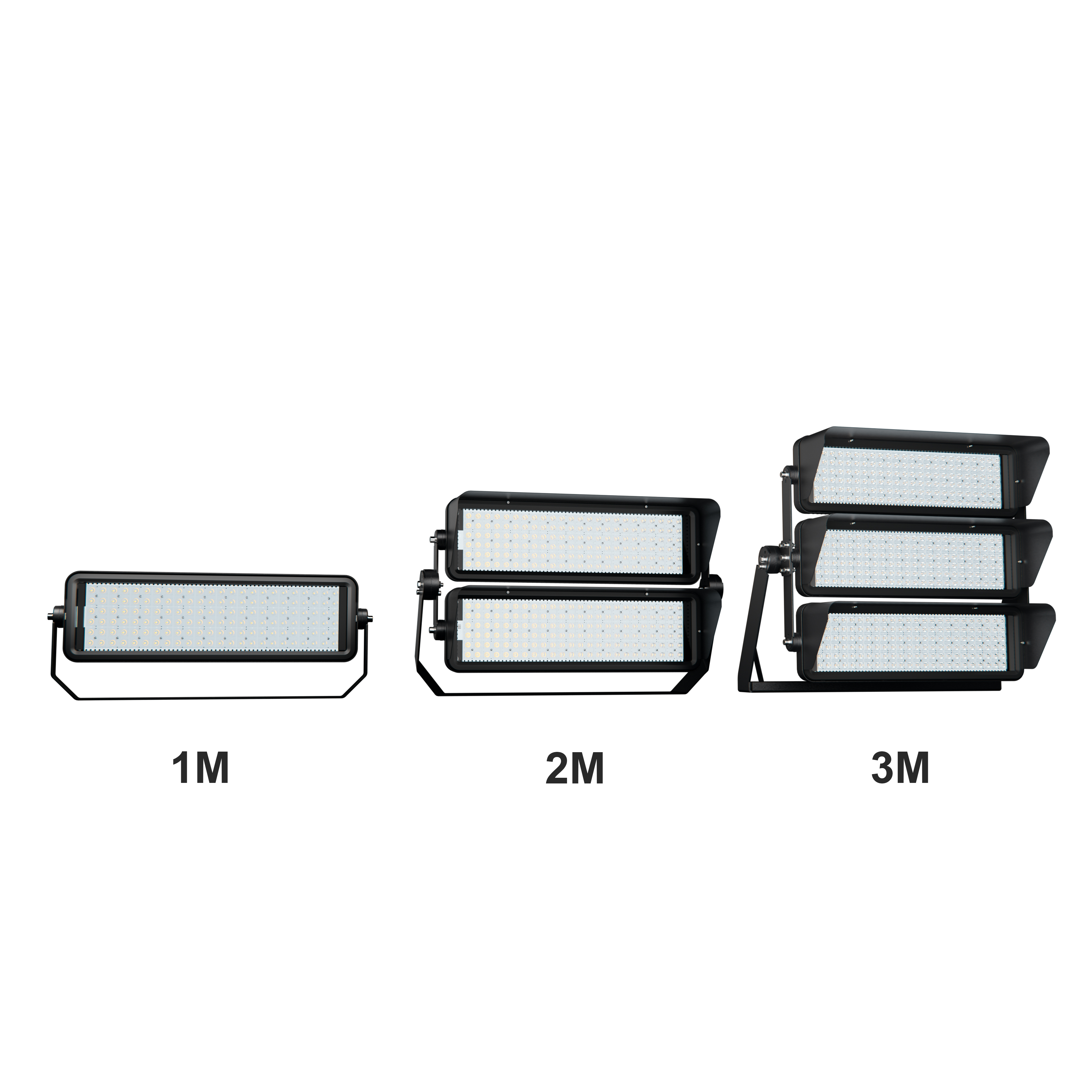

・Modular design 1M/2M/3M in 3 sizes
・Wide power range from 300-1500W
・Super white glass cover
・Protection level up to IP66, IK10
・3030/5050/3535 LED options for different application for both recreational fields and professional stadiums
・Narrow beam, medium beam, wide beam and asymmetric beam all available

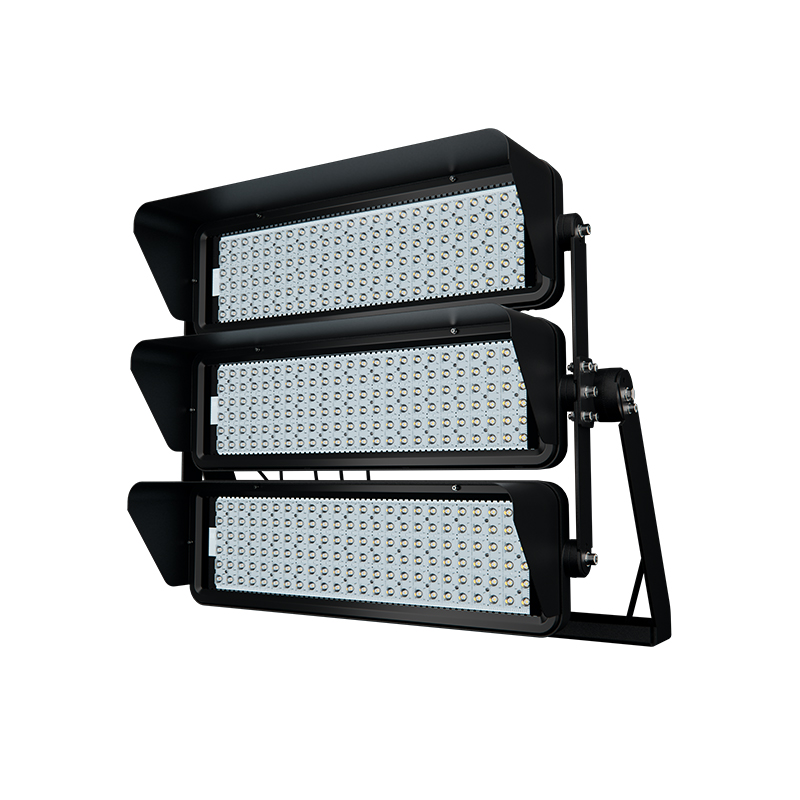

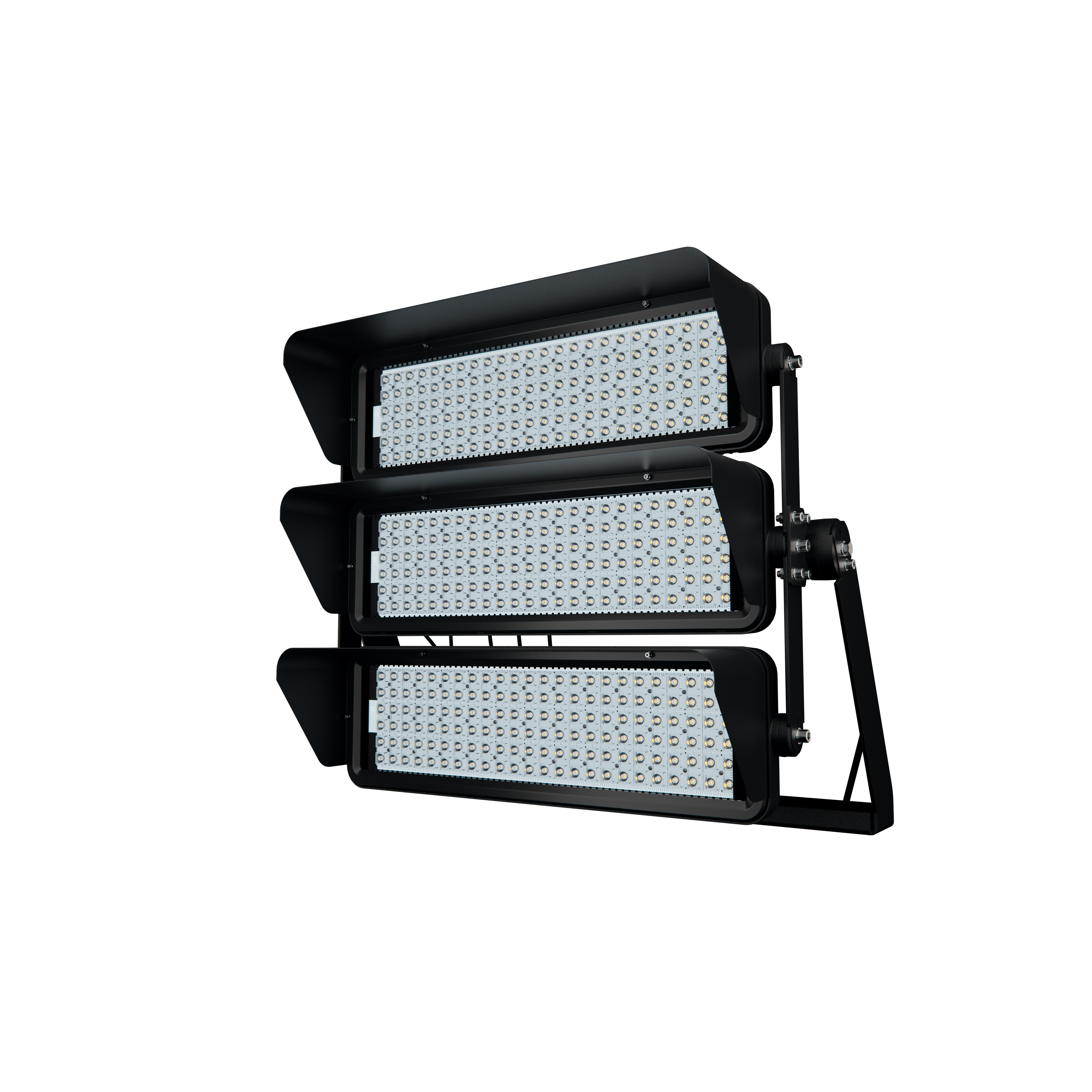

・Professional glare control, available with inner light cut-off anti glare device and external light shield
・Strong 304 stainless steel bracket, 3G vibration test passed

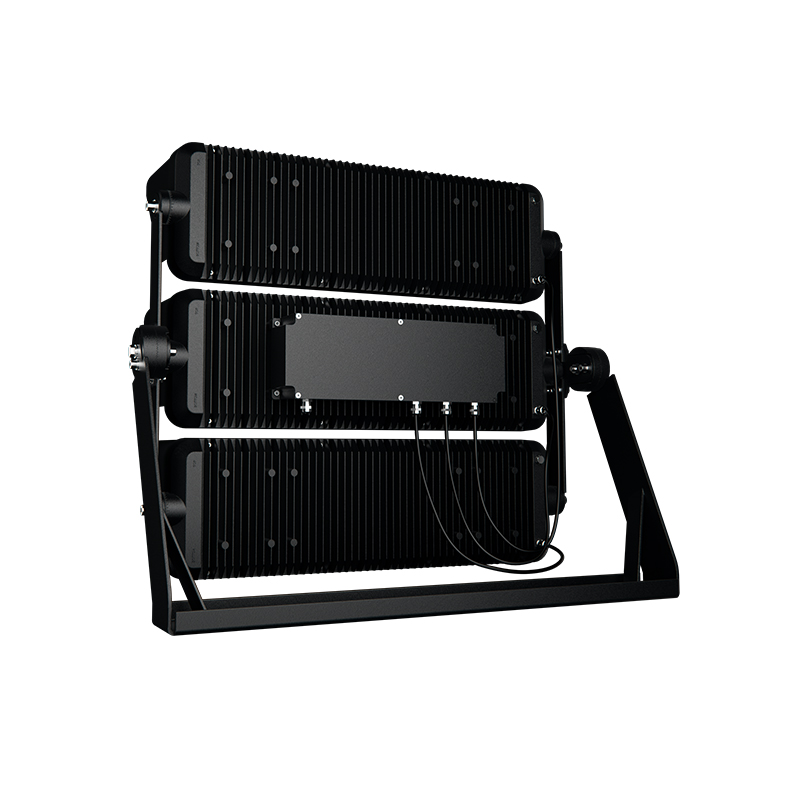

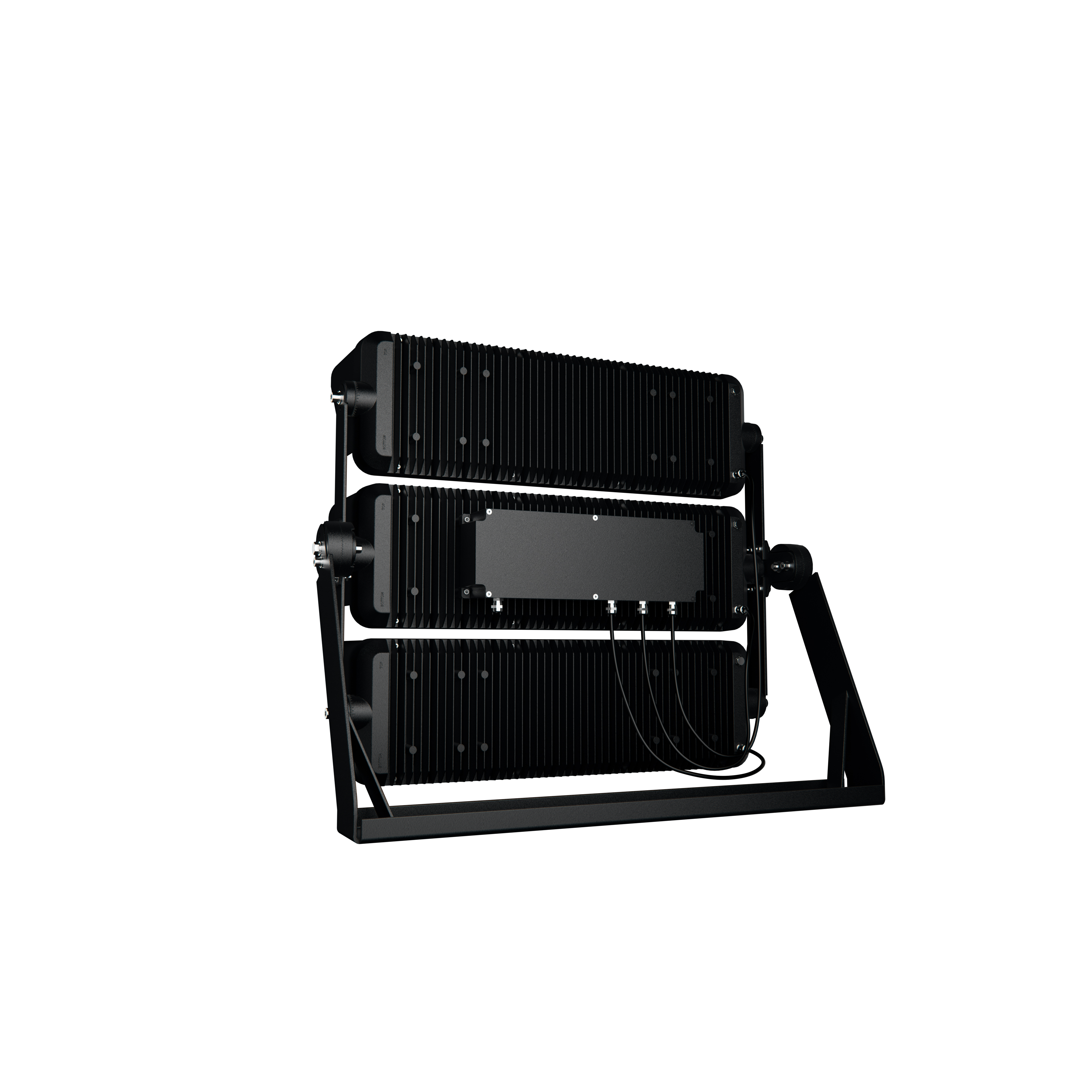

・Integrated driver box available
・DALI/DMX control

Details

Product model EL-FL18
Size 1M/2M/3M
Nominal power 70-500W/500-1000W/900-1500W
Max projected area
LED type 5050/3535
CCT 1800-6500K
CRI Ra>70(Ra>80/90 optional)
Max luminous efficiency 150lm/w
Max luminous flux 225,000lm
Beam angle 11-90°(Symmetric)+Asymmetric
Driver function 0-10V/DALI/DMX
Insulation Class I
Housing material Die-cast aluminum
Glass cover Yes
IP Rating IP66
IK Rating IK10
Colour of finish Black
Mounting High mast/Wall mounted/Suspended
Operation Temperature -40°C to +40°C
Net weight
Certificate CB/ENEC/CE/RoHS
