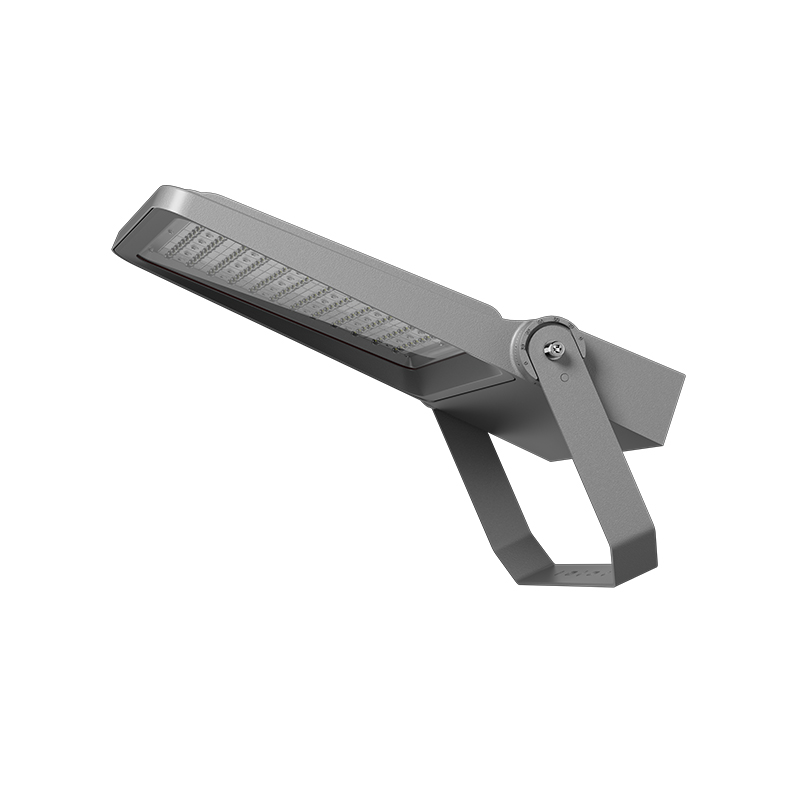

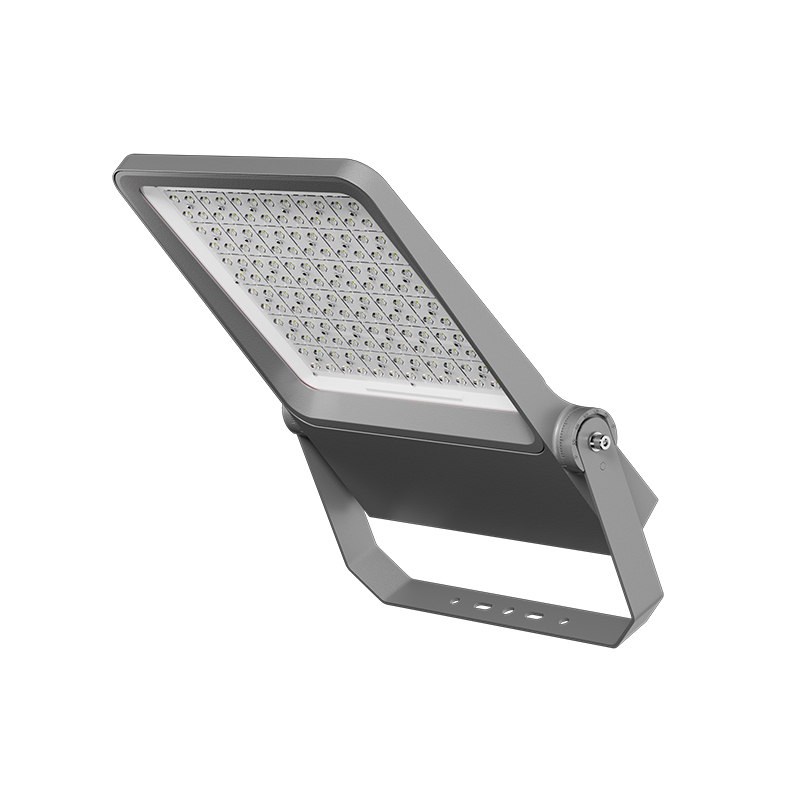

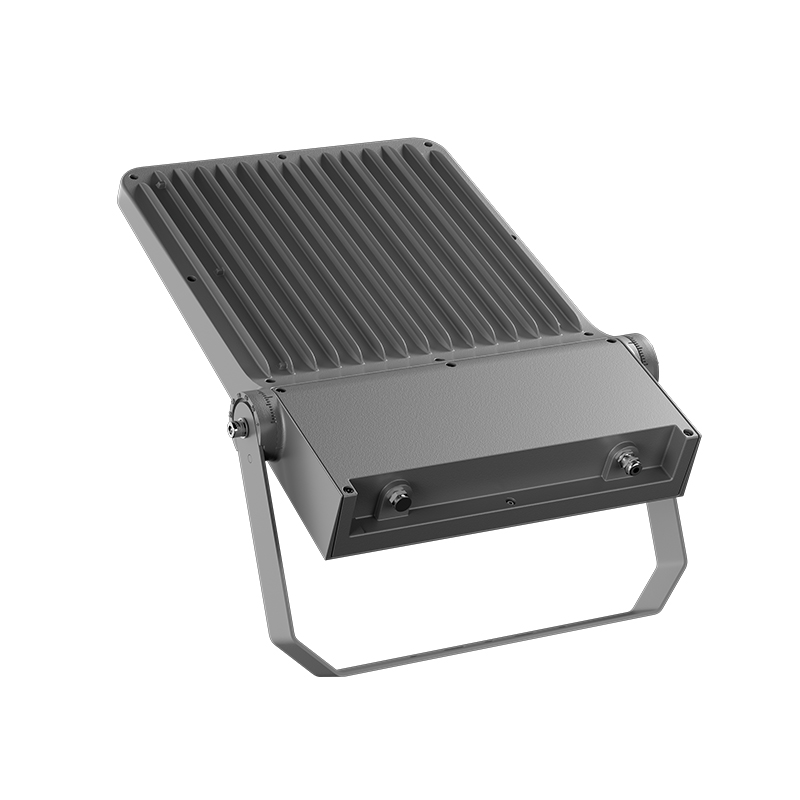

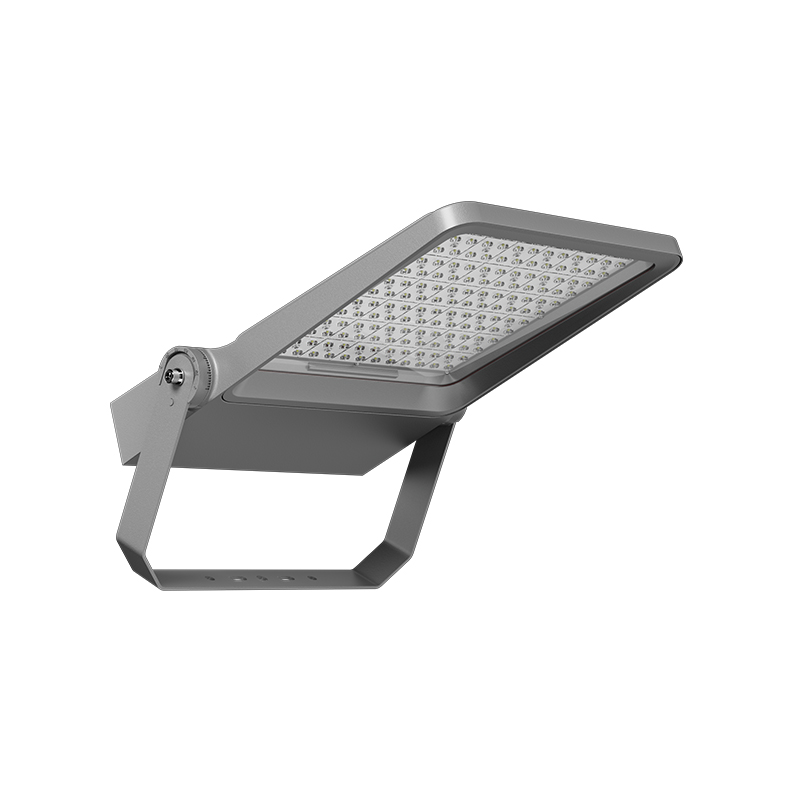

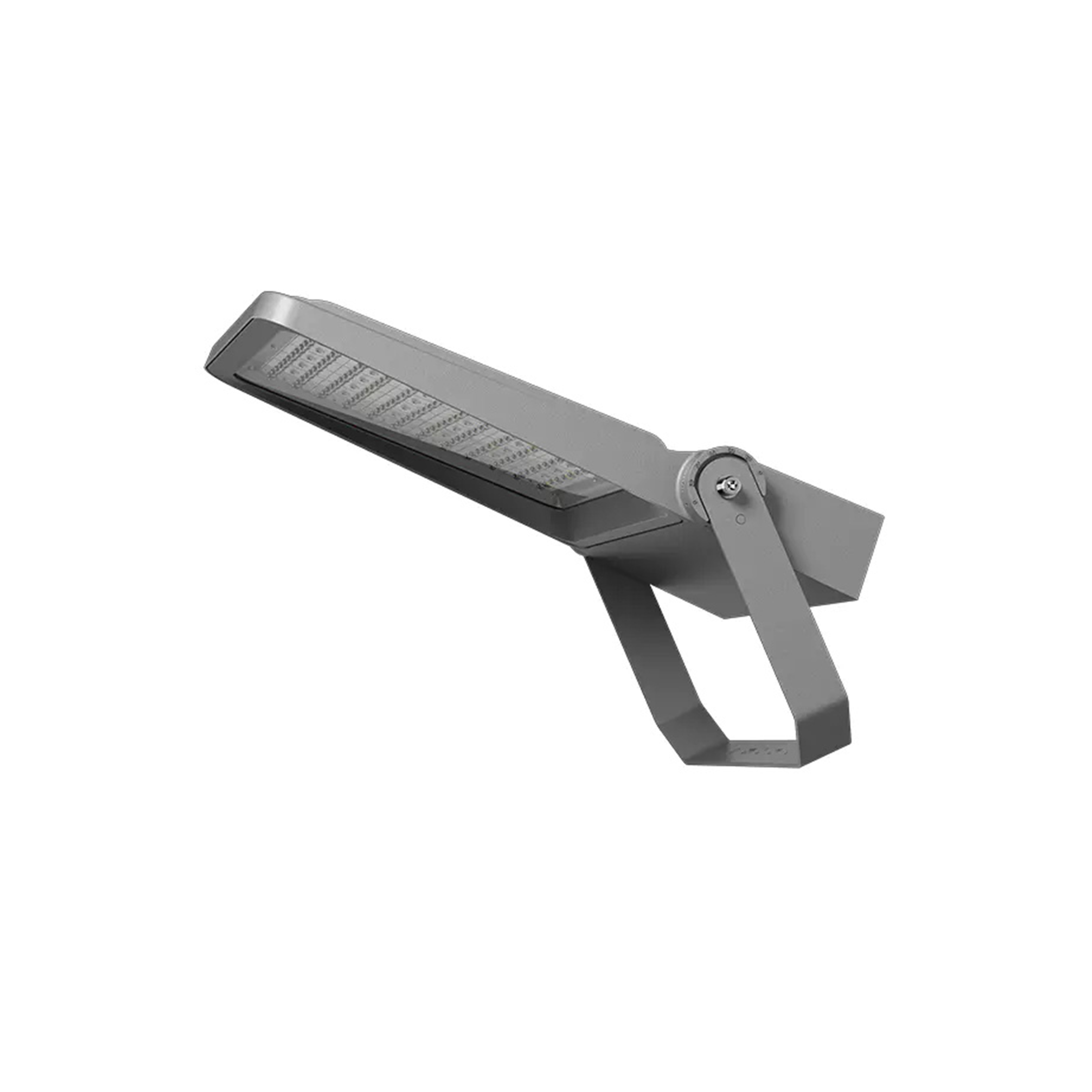

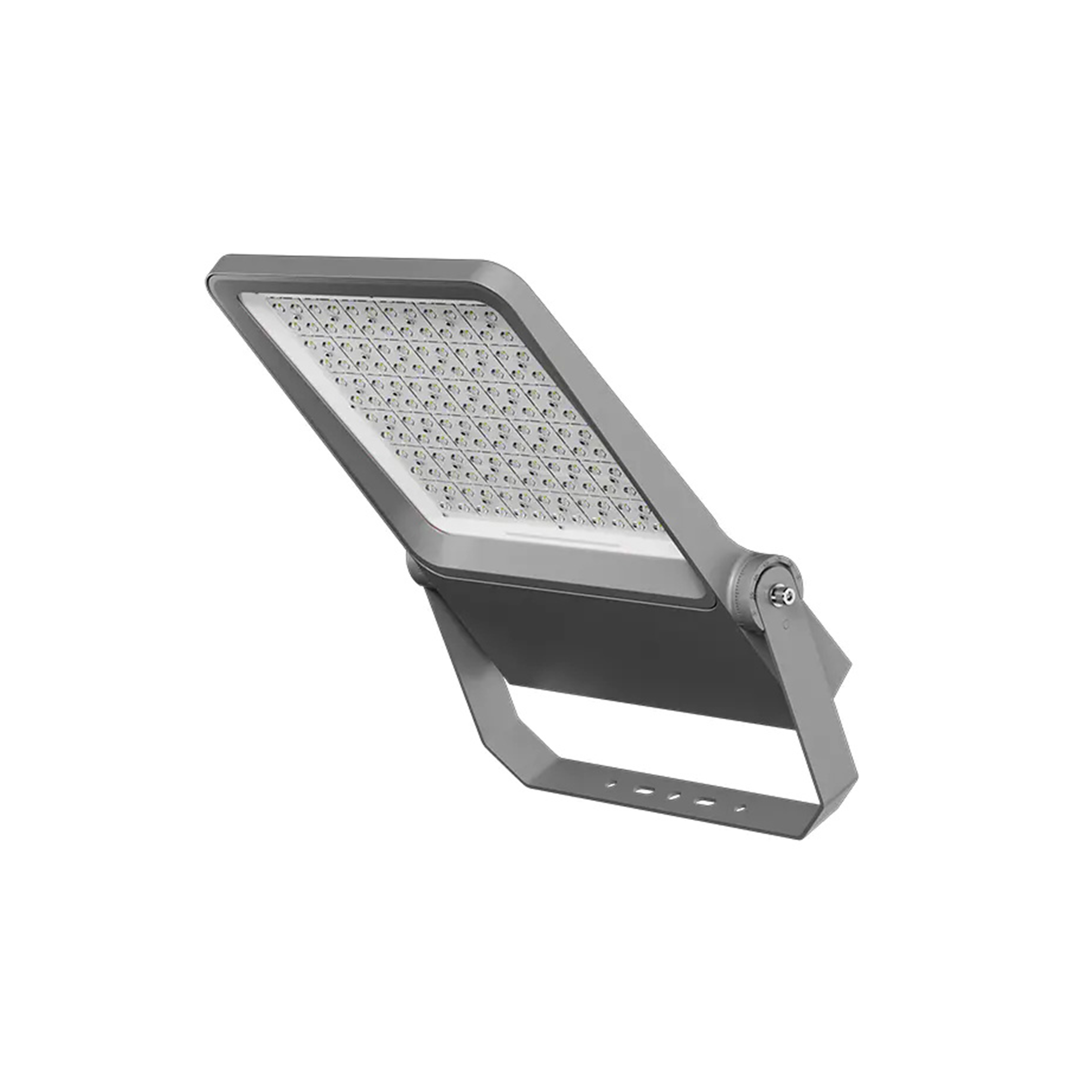

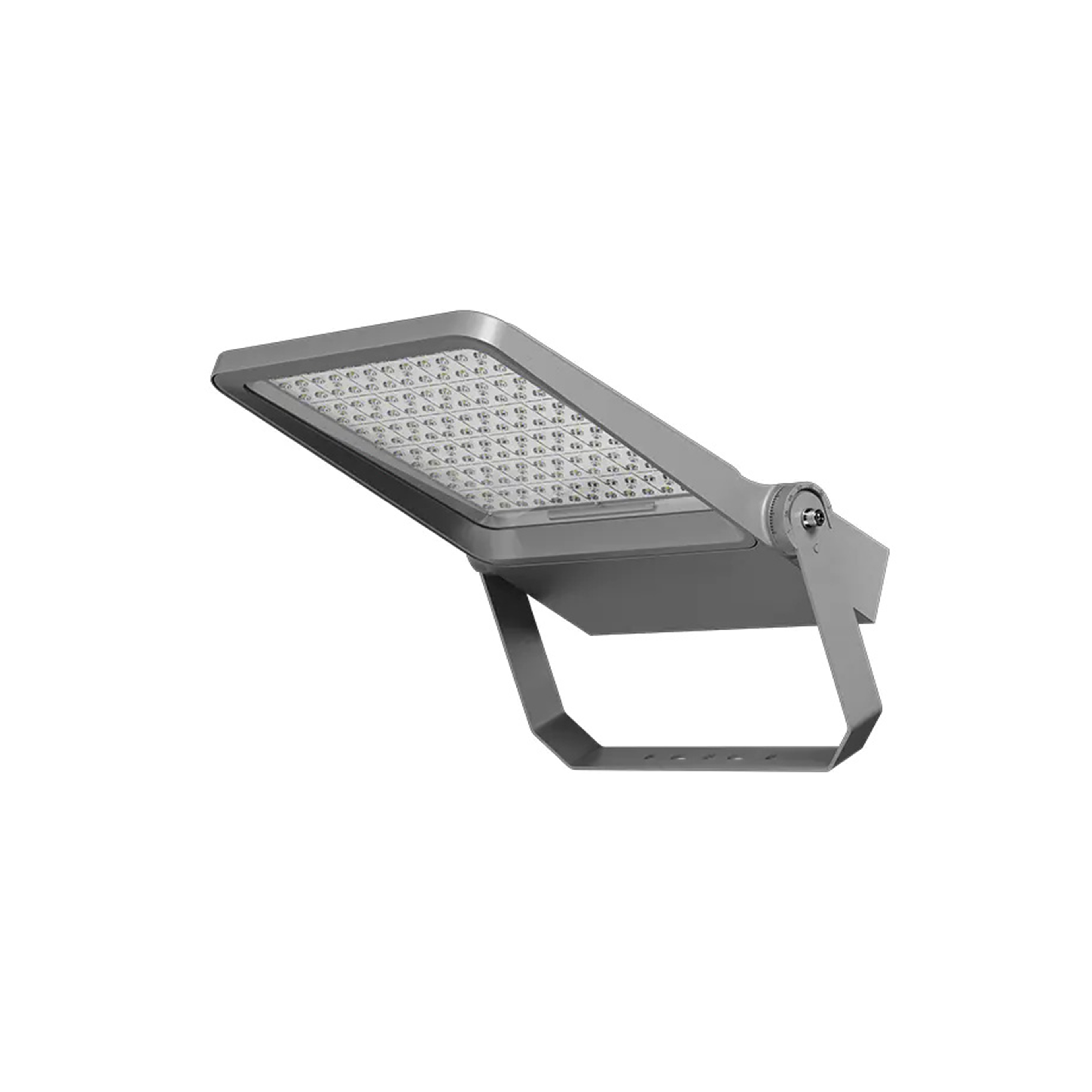

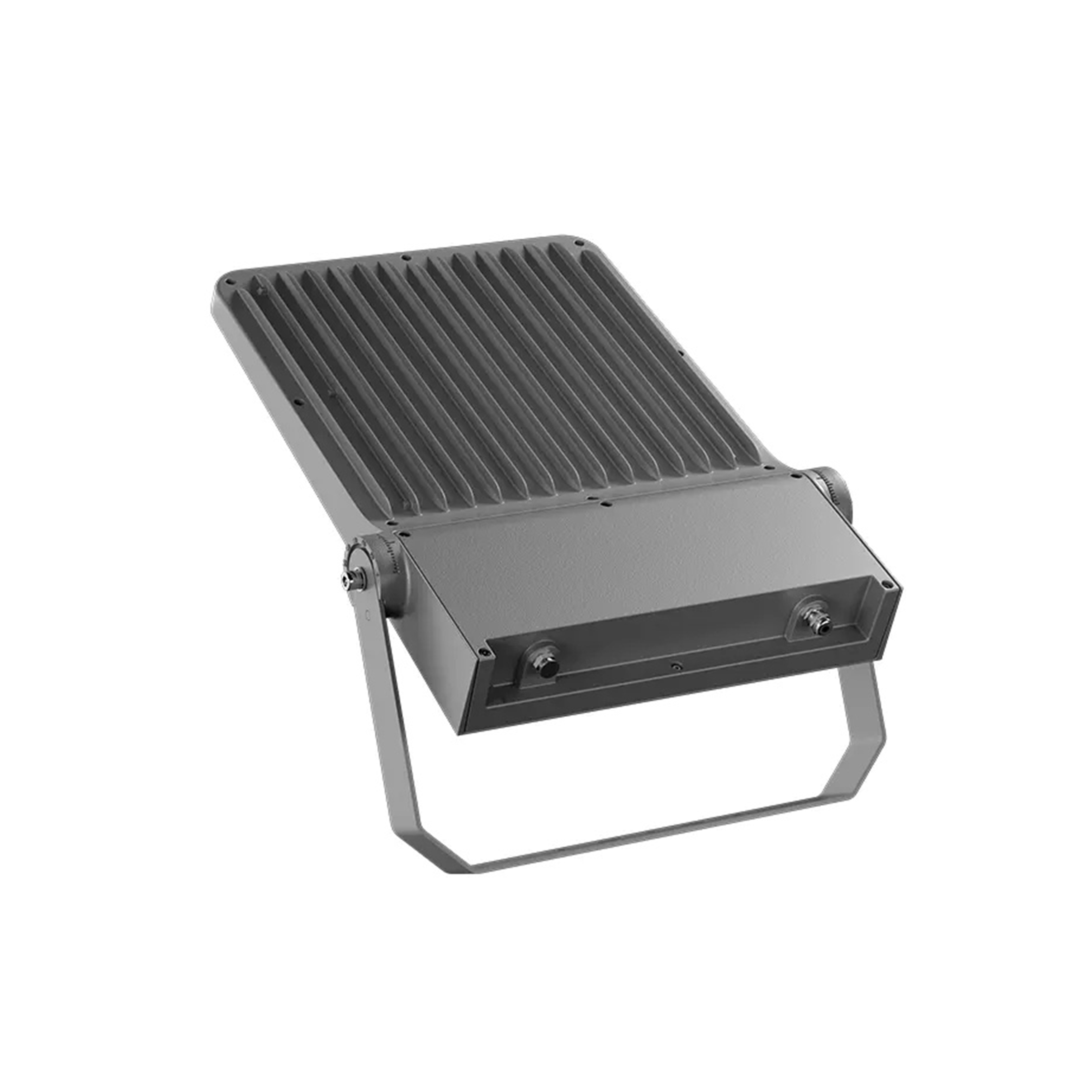

The Maxflood LED is a cost-effective, lightweight, ultra-thin flood light series, excellent thermal management by aluminum radiator from die-casting, wide power range from 50W to 600W in 3 sizes which can be widely used in outdoor sports venues, swimming pools, industrial sites, logistics etc.
Specification
・The popular square shape
・Wide power range 50-600W
・High luminous efficiency up to170lm/w
・Tempered glass cover
・Multiple beam angles option 11-90°& asymmetric
・Large driver chamber supports more driver options
・±120° adjustable bracket with precise angle marks to support more installation situation
・Robust structure up to IP66 IK10
・Long lifetime guaranteed
Details
| Product model | EL-FL02 |

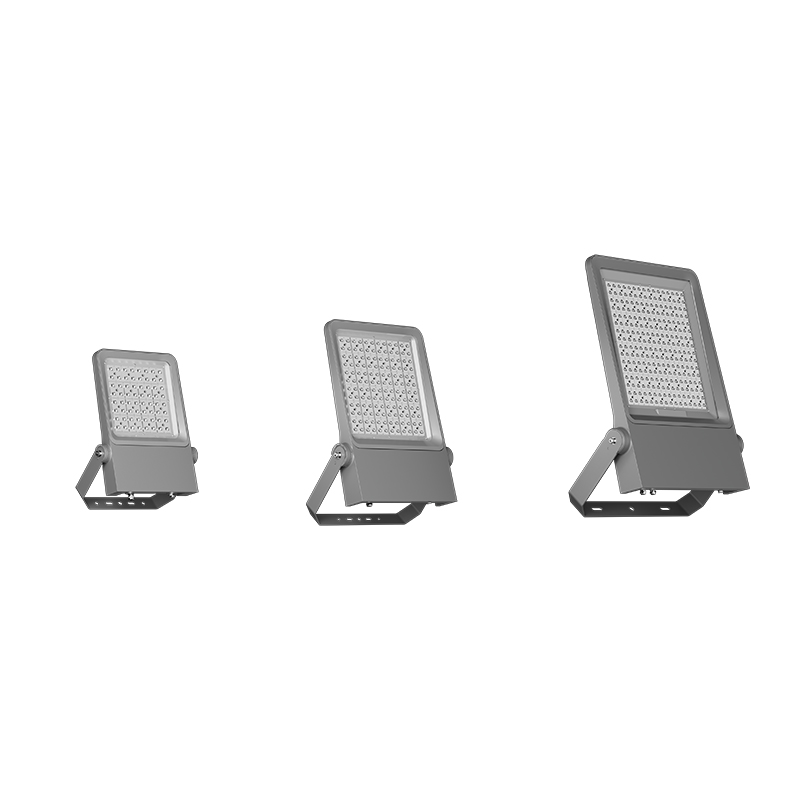

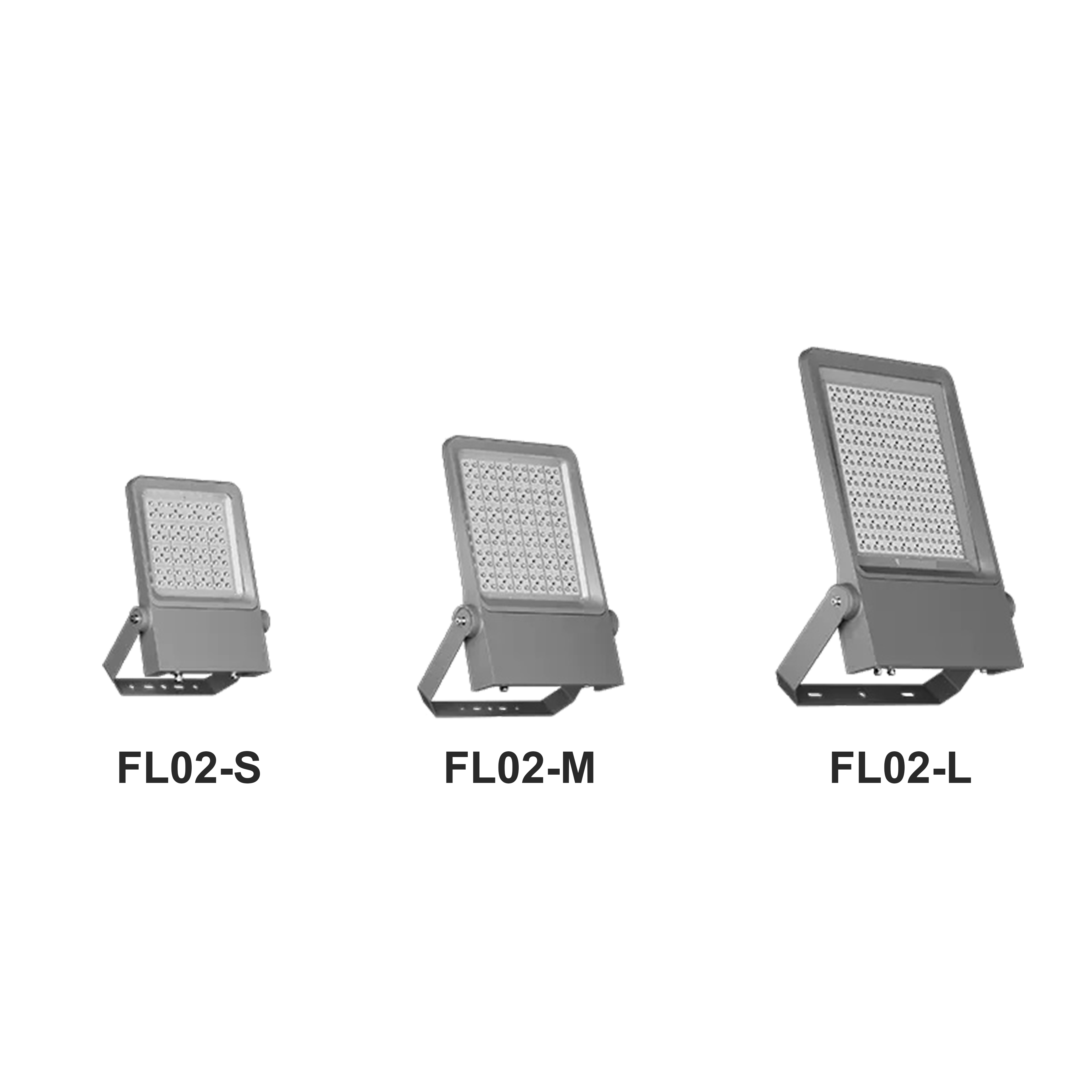

| Size | S/M/L |
| Nominal power | 50-200W/200-400W/400-600W |
| Max projected area | |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70(Ra>80 optional) |
| Max luminous efficiency | 170lm/w |
| Max luminous flux | 102,000lm |
| Beam angle | 11-90°(Symmetric)+Asymmetric |
| Driver function | 0-10V/DALI/DMX |
| Insulation | Class I |
| Housing material | Die-cast aluminum |
| Glass cover | Yes |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Colour of finish | Grey |
| Mounting | High mast/Wall mounted/Suspended |
| Operation Temperature | -40°C to +40°C |
| Net weight | |
| Certificate | CB/ENEC/CE/RoHS |
