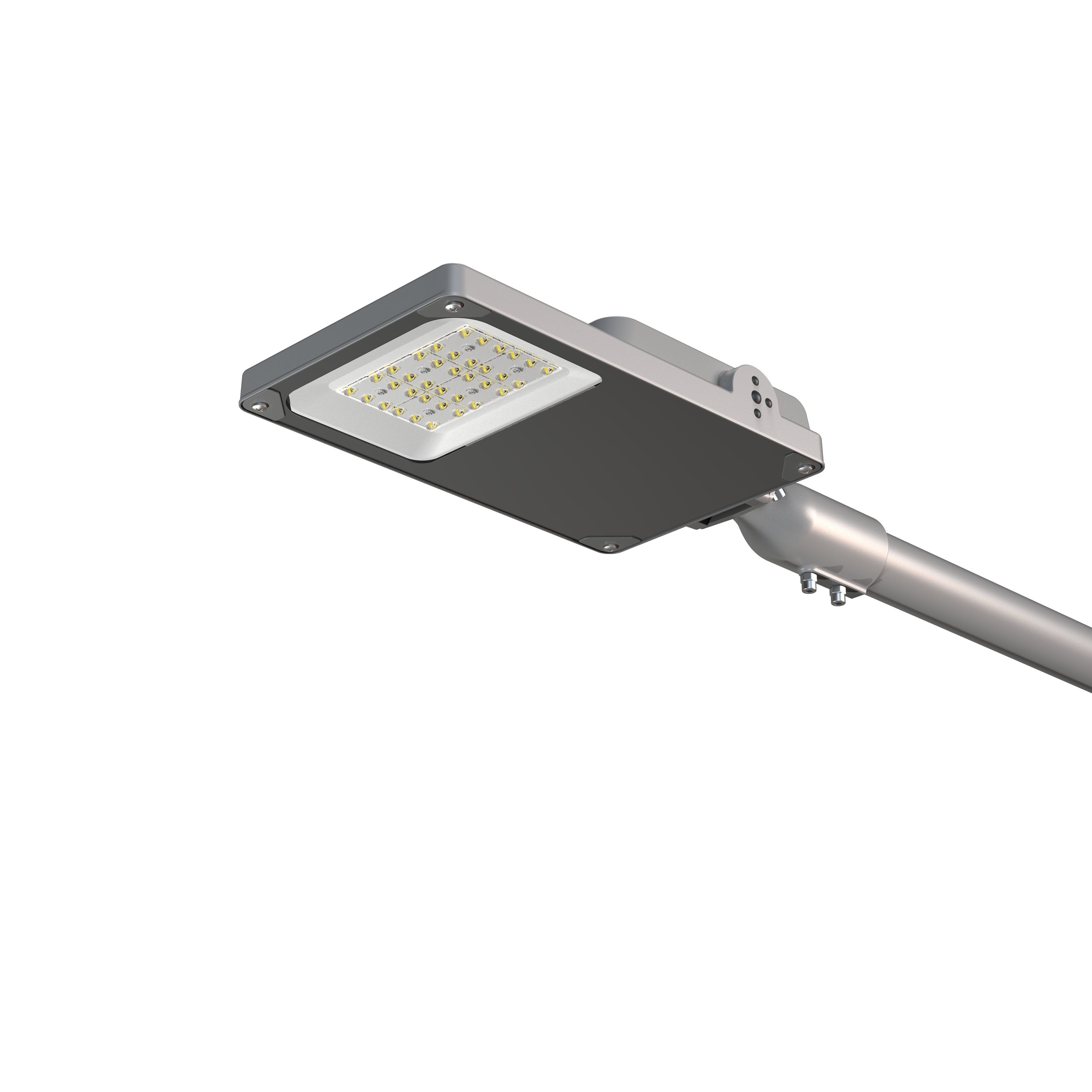

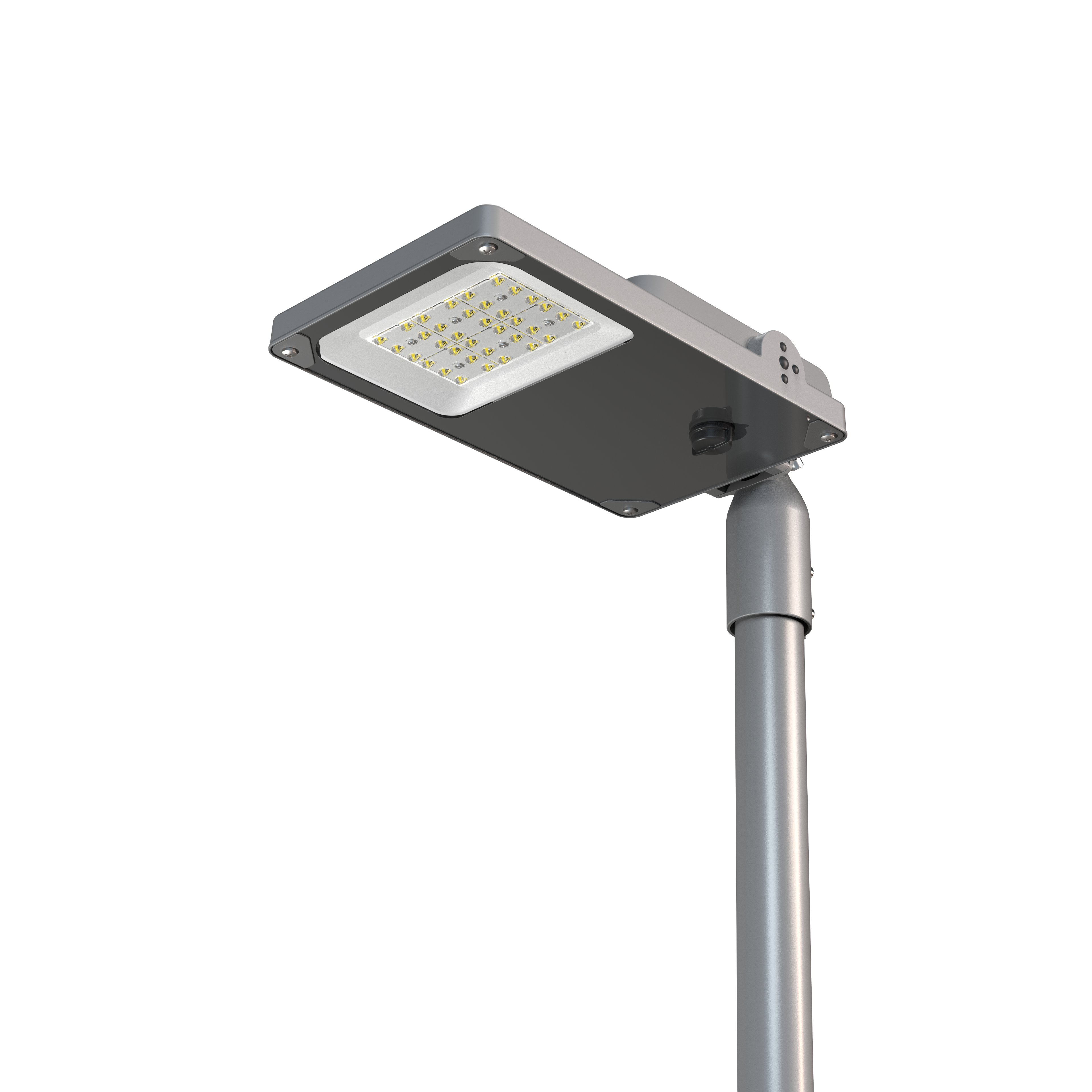

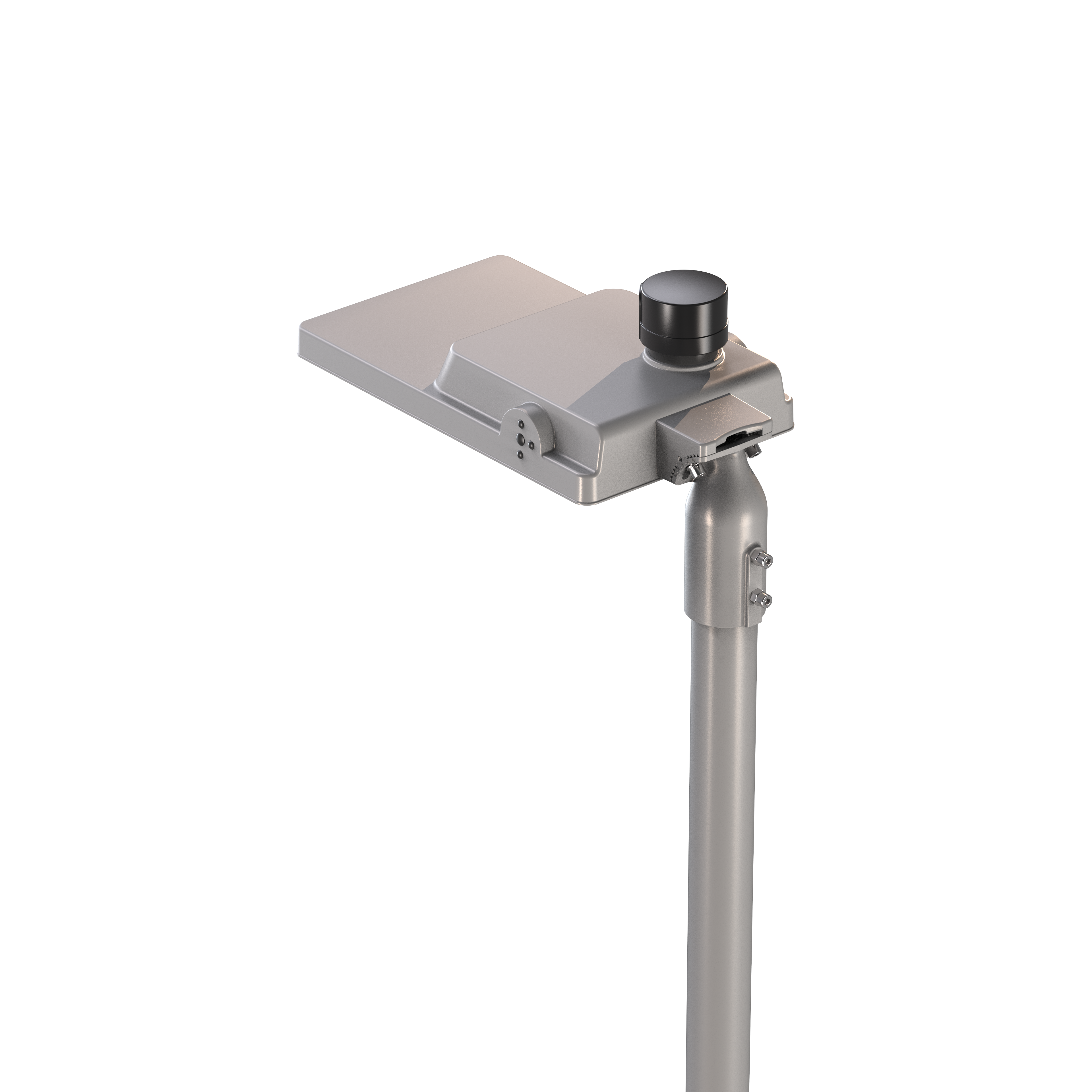

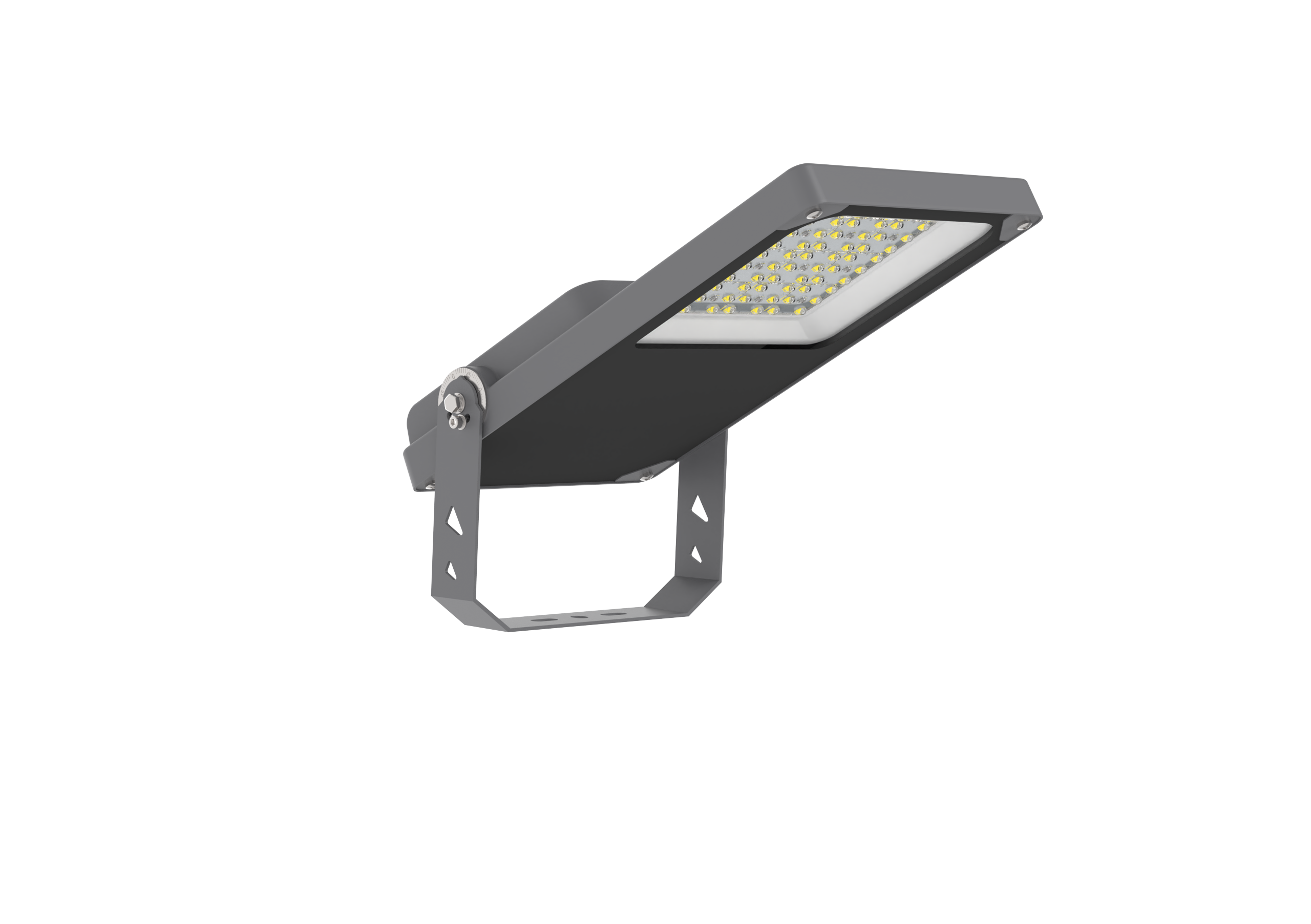

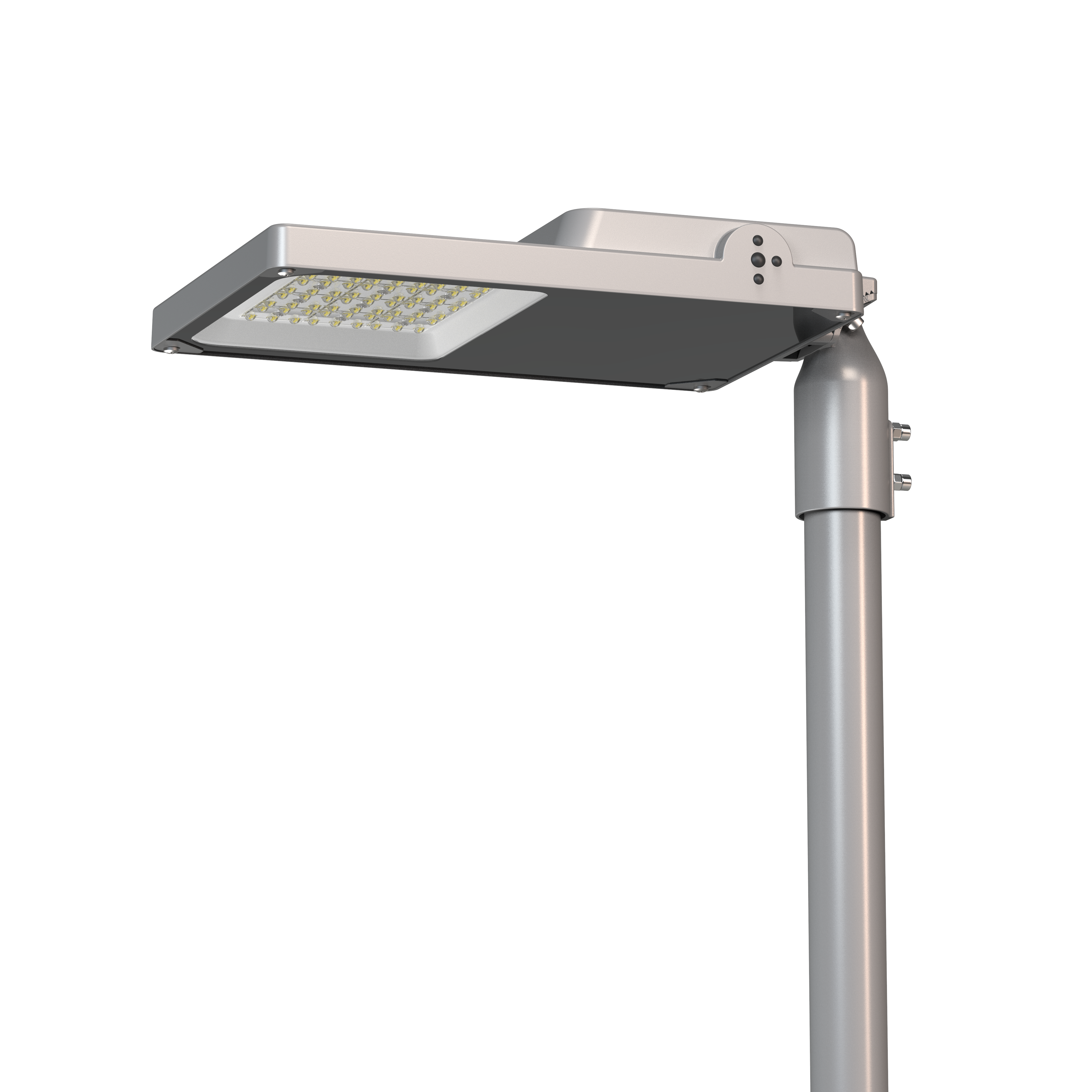

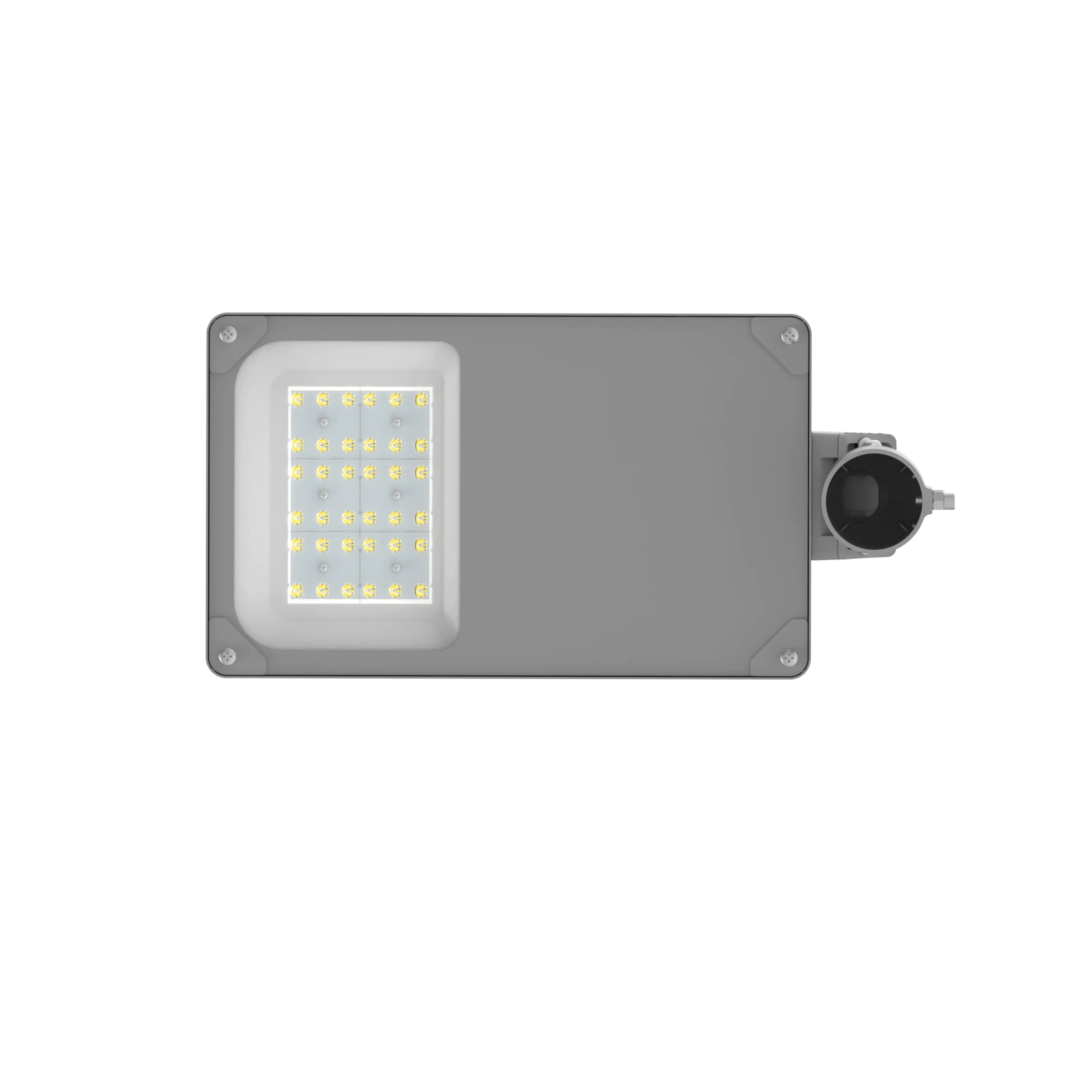

Equation is a square shape outdoor luminaire which has 2 versions SL and FL, SL is street light version with spigot and FL version is flood light version with U bracket, shared a same body, the two forms can be flexibly converted, aim to reduce your SKU and storage cost.
Specification
• Modern square shape
• Complete flat bottom
• Multiple functions to be SL and FL
• Glass cover
• A wide range of lens options
• High efficiency up to 180lm/w
• Zhaga on top and bottom
• Post top or side entry, easy installation
Details
| Prodcust model | EL-SL05 |

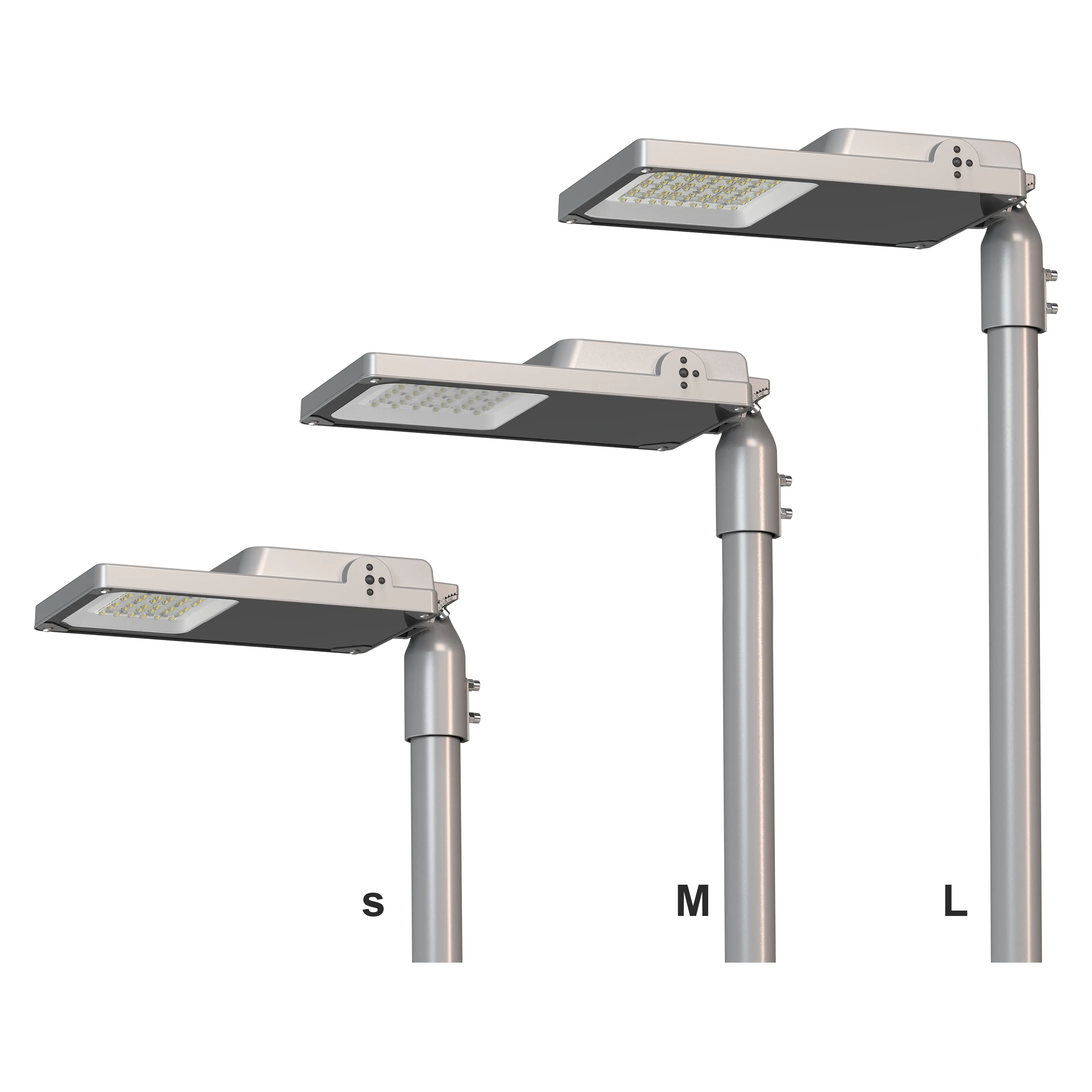

| Size | S/M/L |
| Nonimal power | 10-50W/50-100W/100-150W |
| LED type | 3030/5050 |
| CCT | 1800-6500K |
| CRI | Ra>70 |
| Max luminous efficiency | 180lm/w |
| Max luminous flux | 27,000lm |
| Optics | Type II/III, 30/60/90°/Asy |
| Driver function | On-Off/0-10V/Timer Dim./DALI2/D4i |
| Insulation | Class I/II |
| Glass cover | Yes |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +45°C |
| Mounting | Post top/Side entry/Wall mounted |
| Pole diameter to fit | φ60 |
| Certification | CB/ENEC/CE/RoHS |
Download
