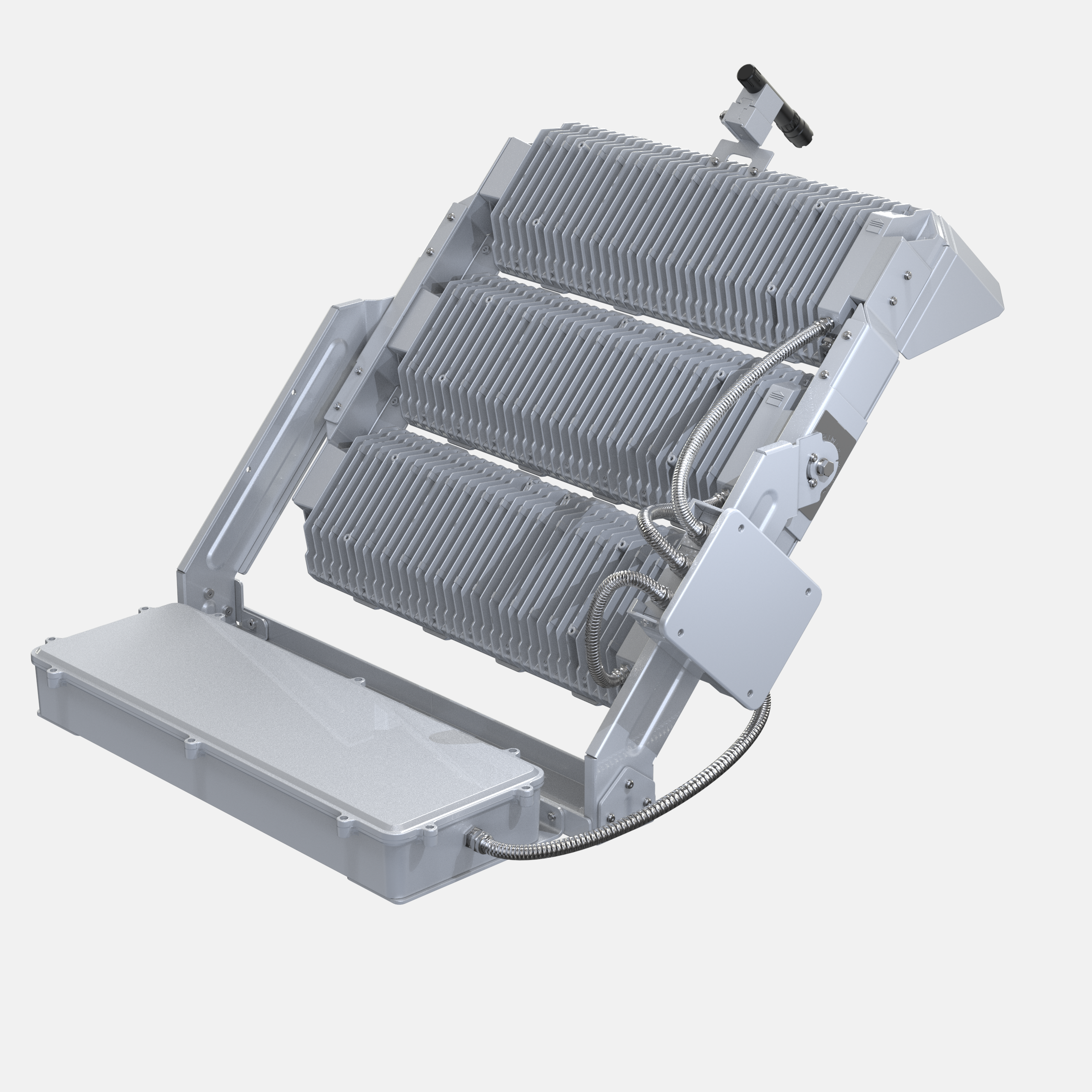

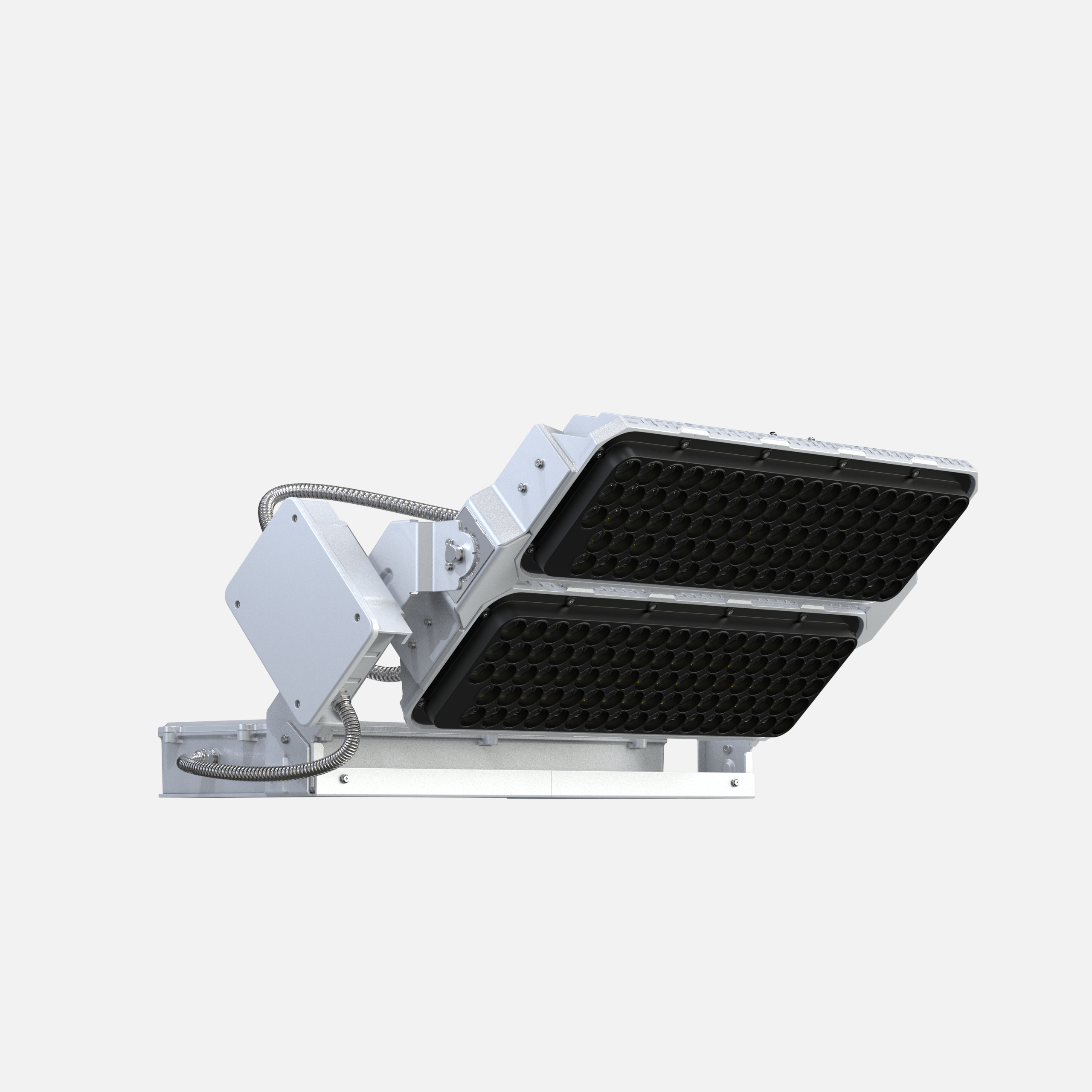

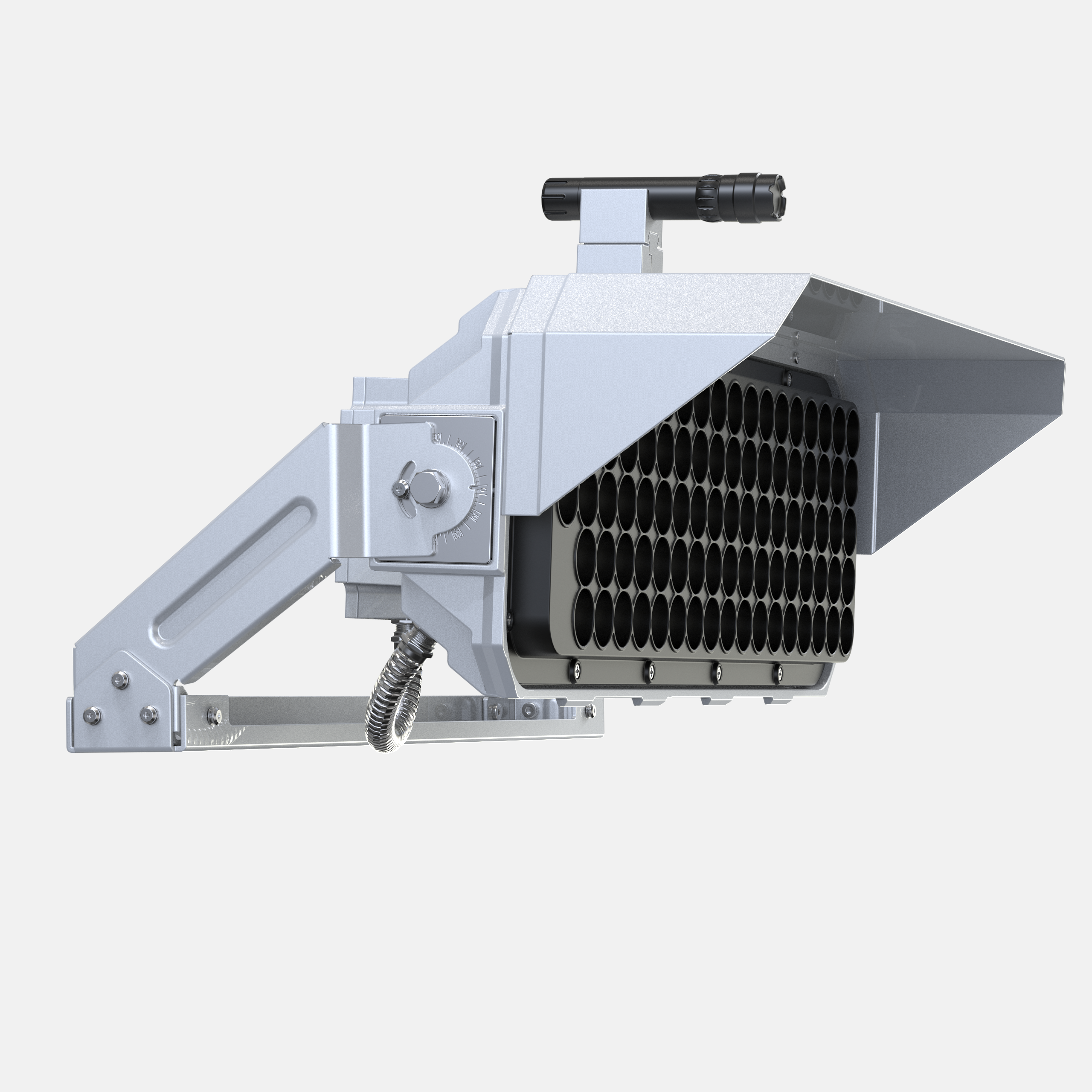

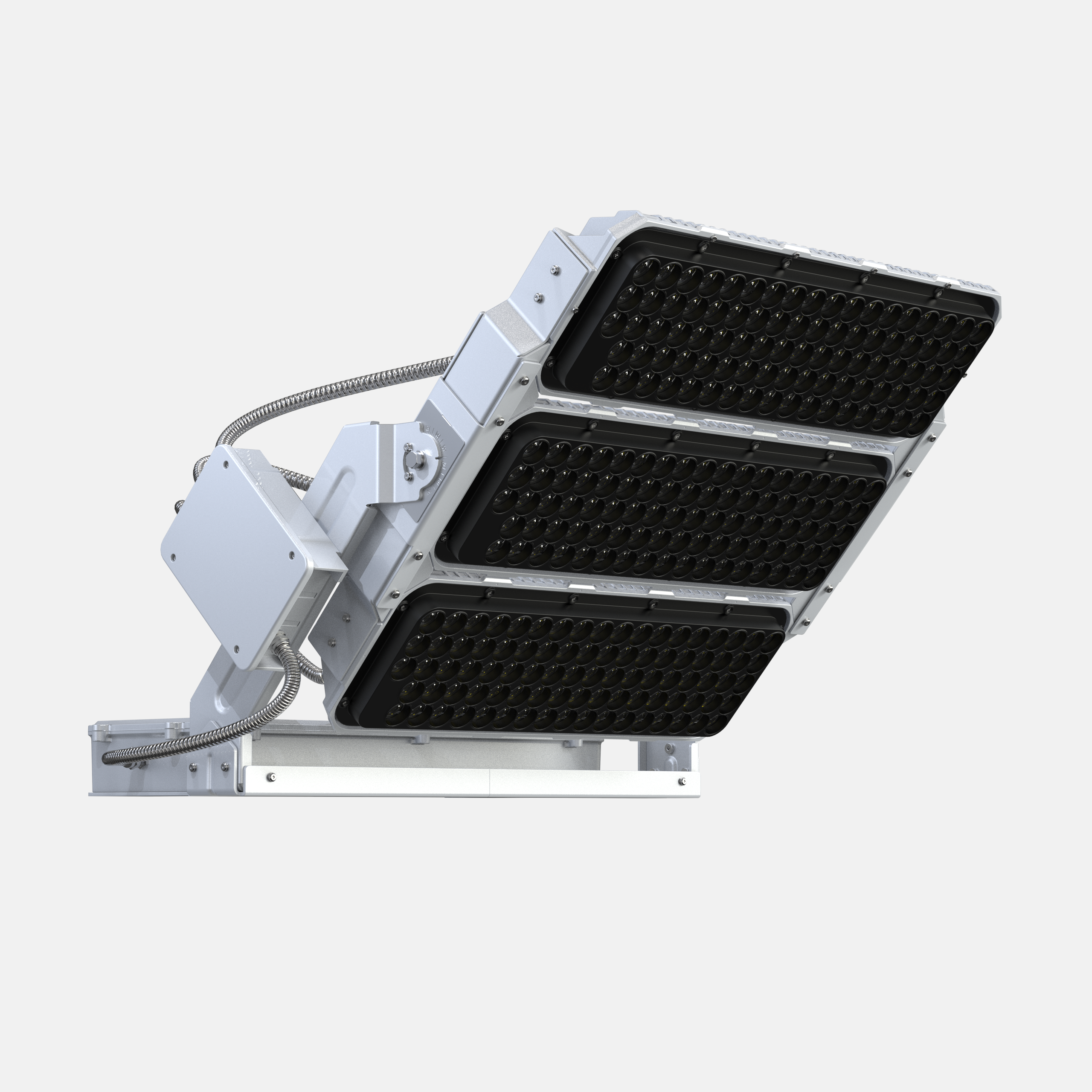

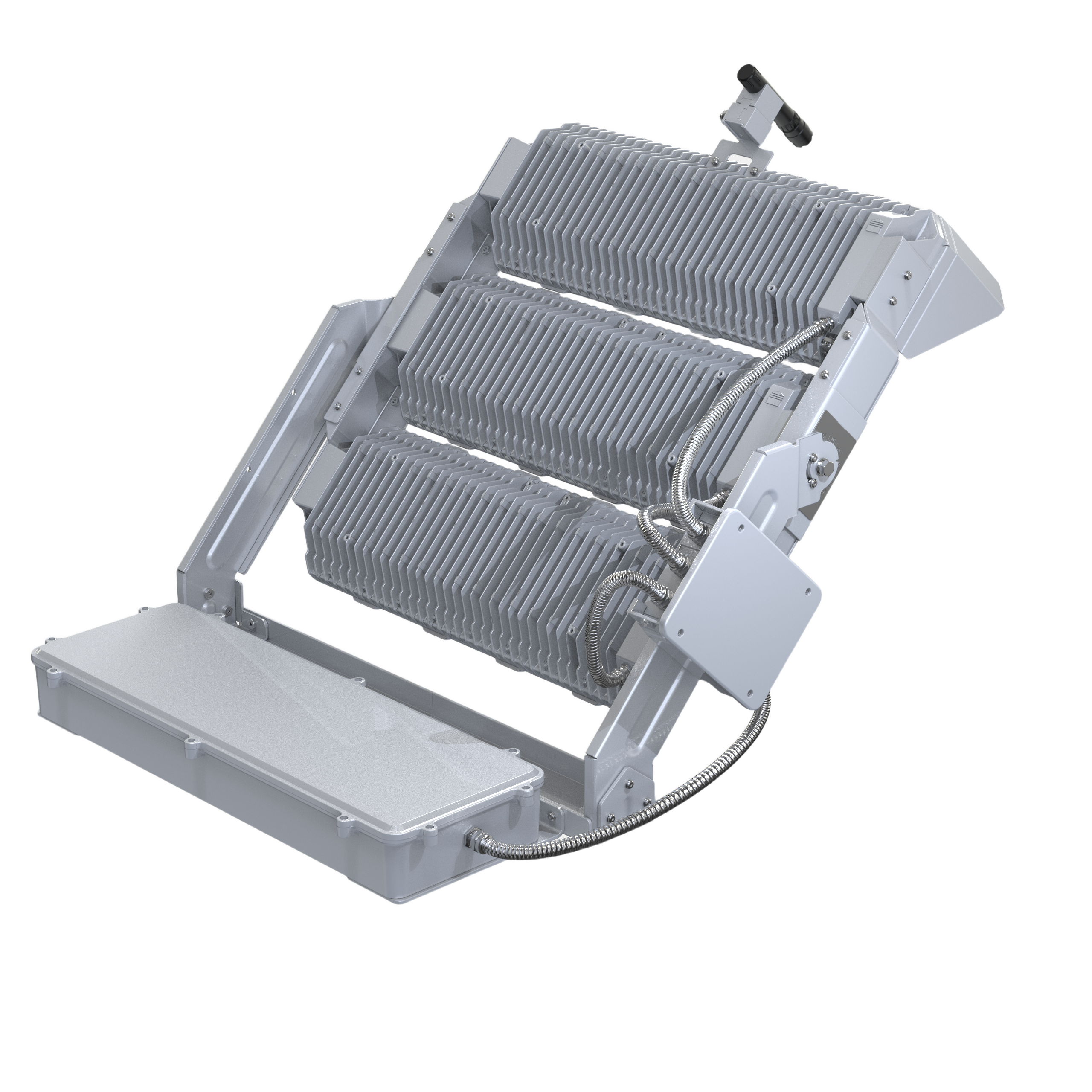

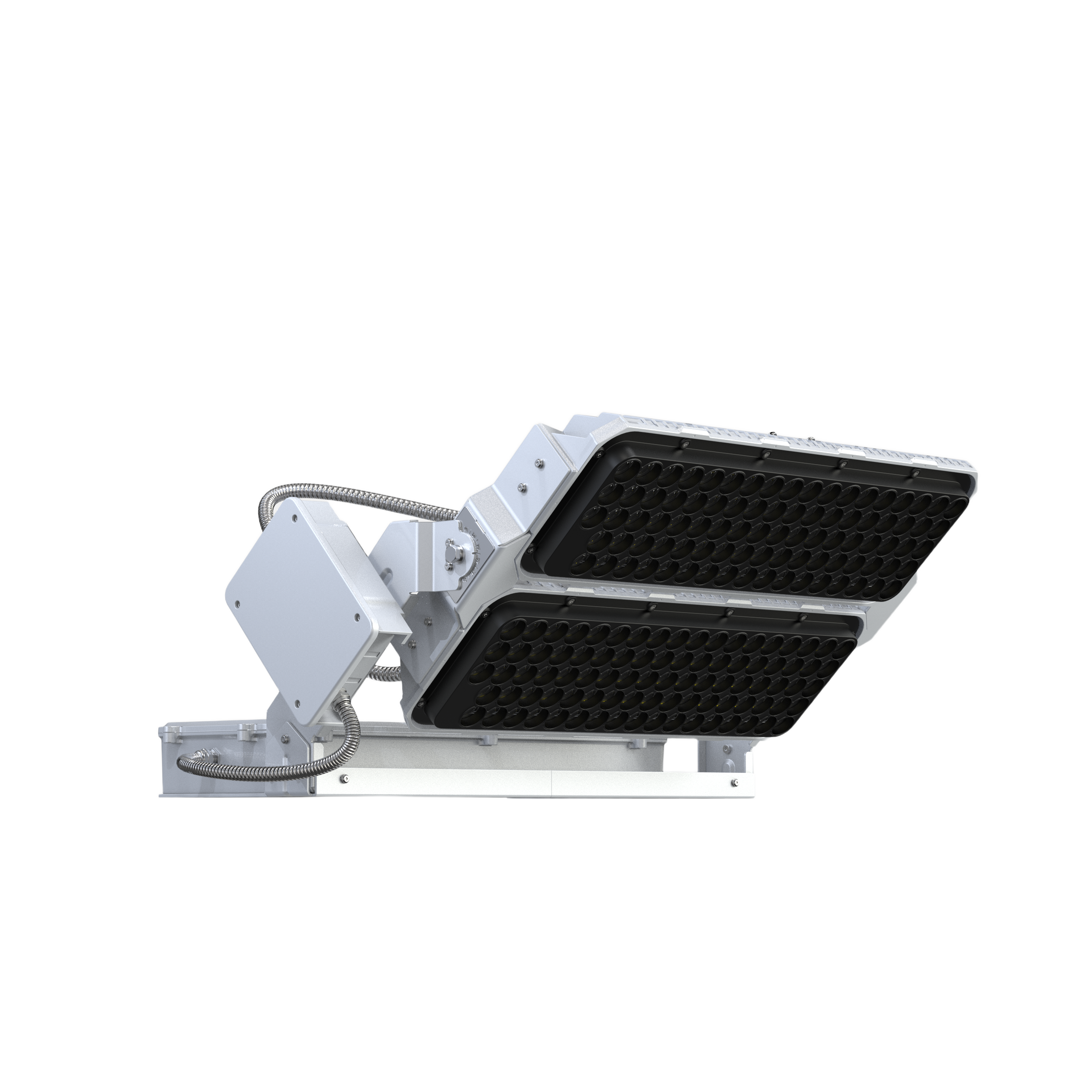

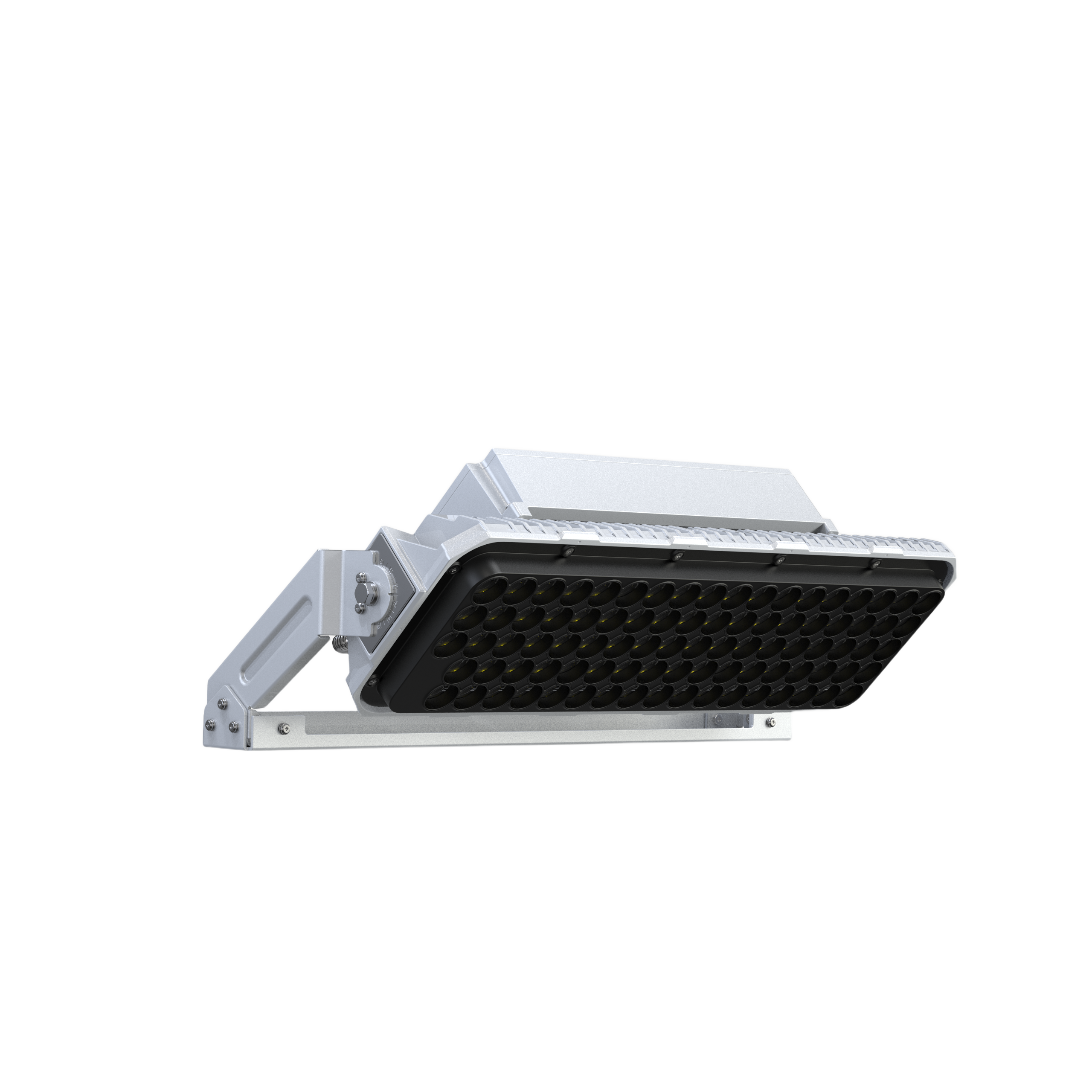

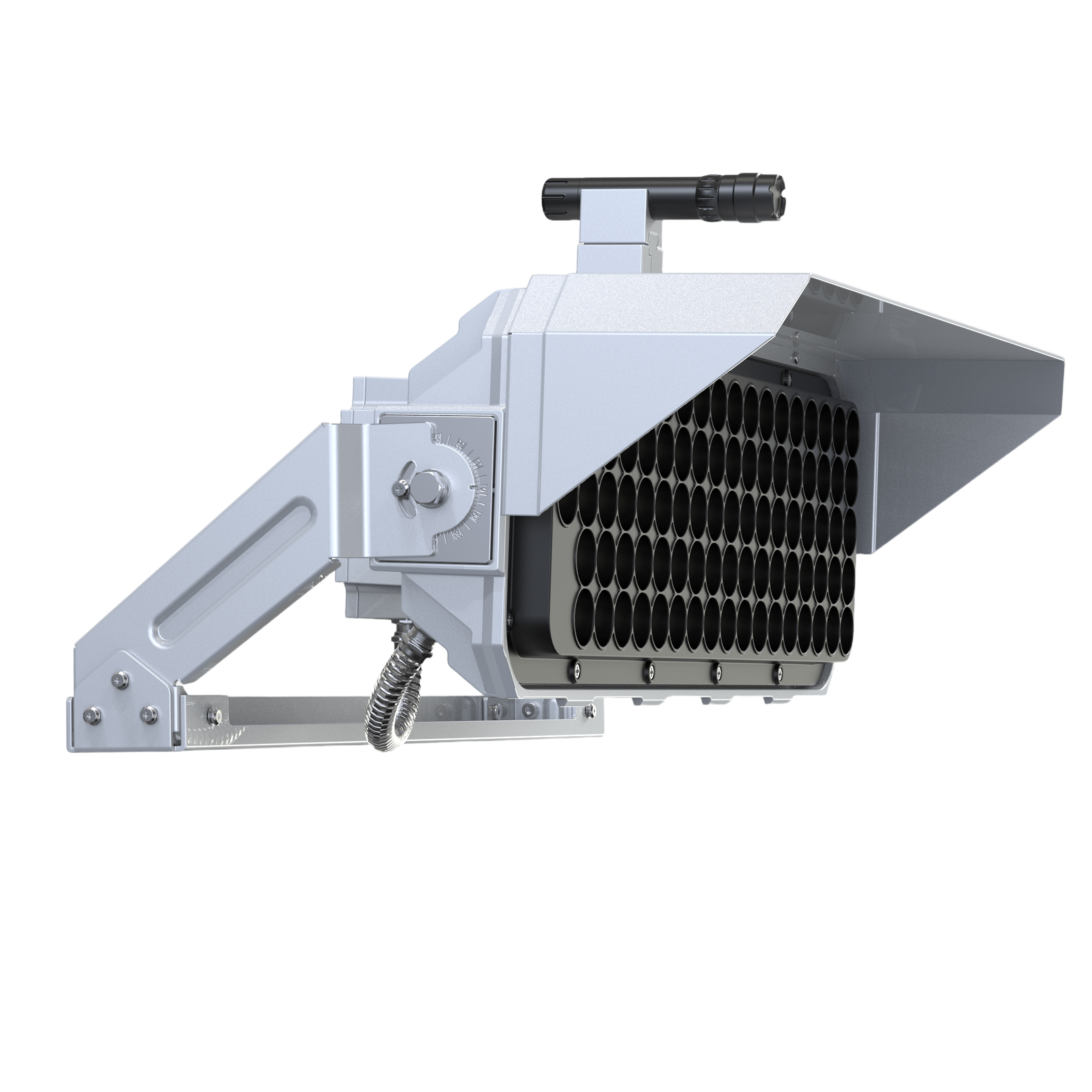

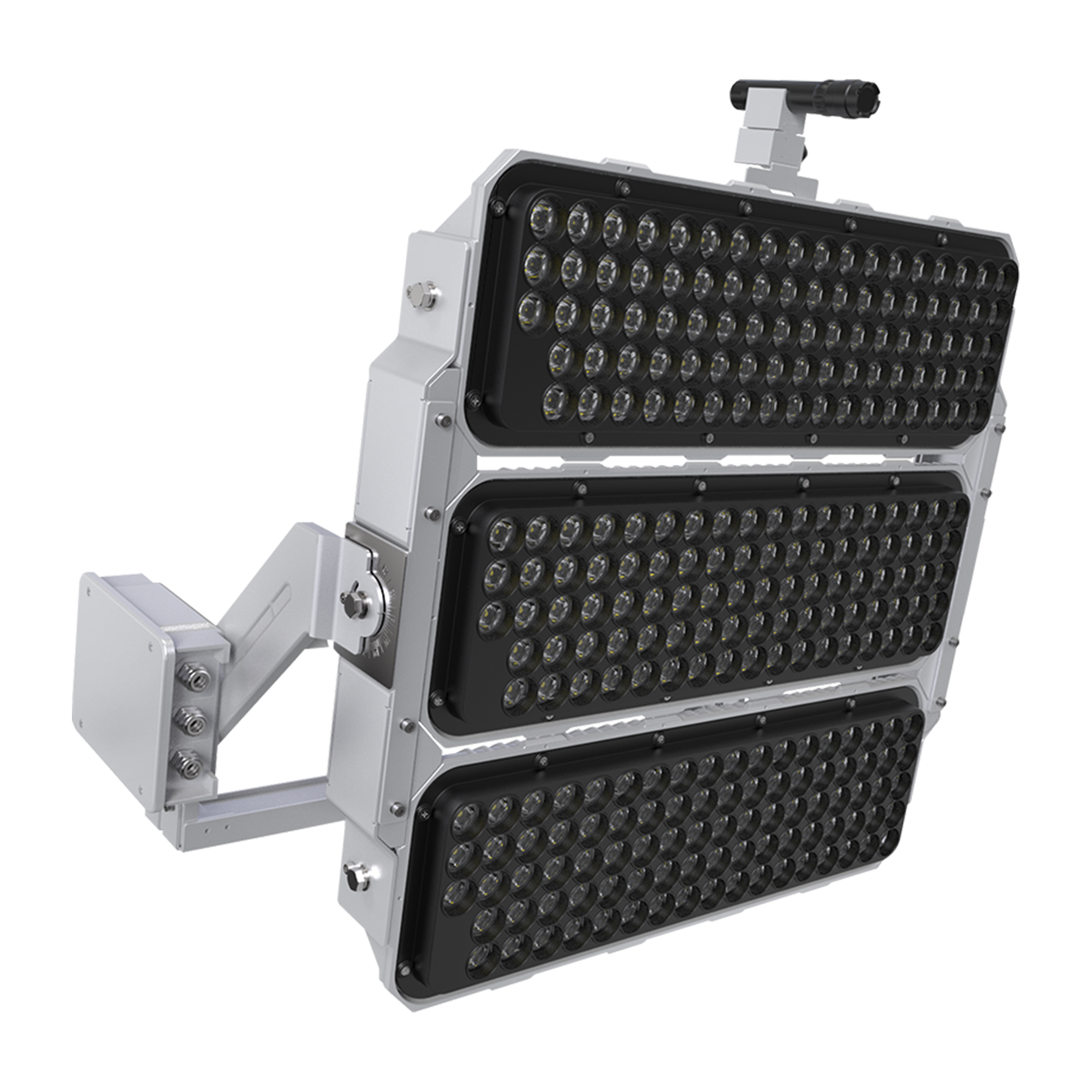

Altas Pro was born for FIFA standard professional fields arena lighting, it can be equipped with top level CREE XP-L2 LED chipset and reached a narrow beam angle of 12°, plus a 360° light cut off anti-glare device comes with perfect light controller for HD broadcasting to capture every wonderful moment.
Specification
• Modulare design, sturdy structure

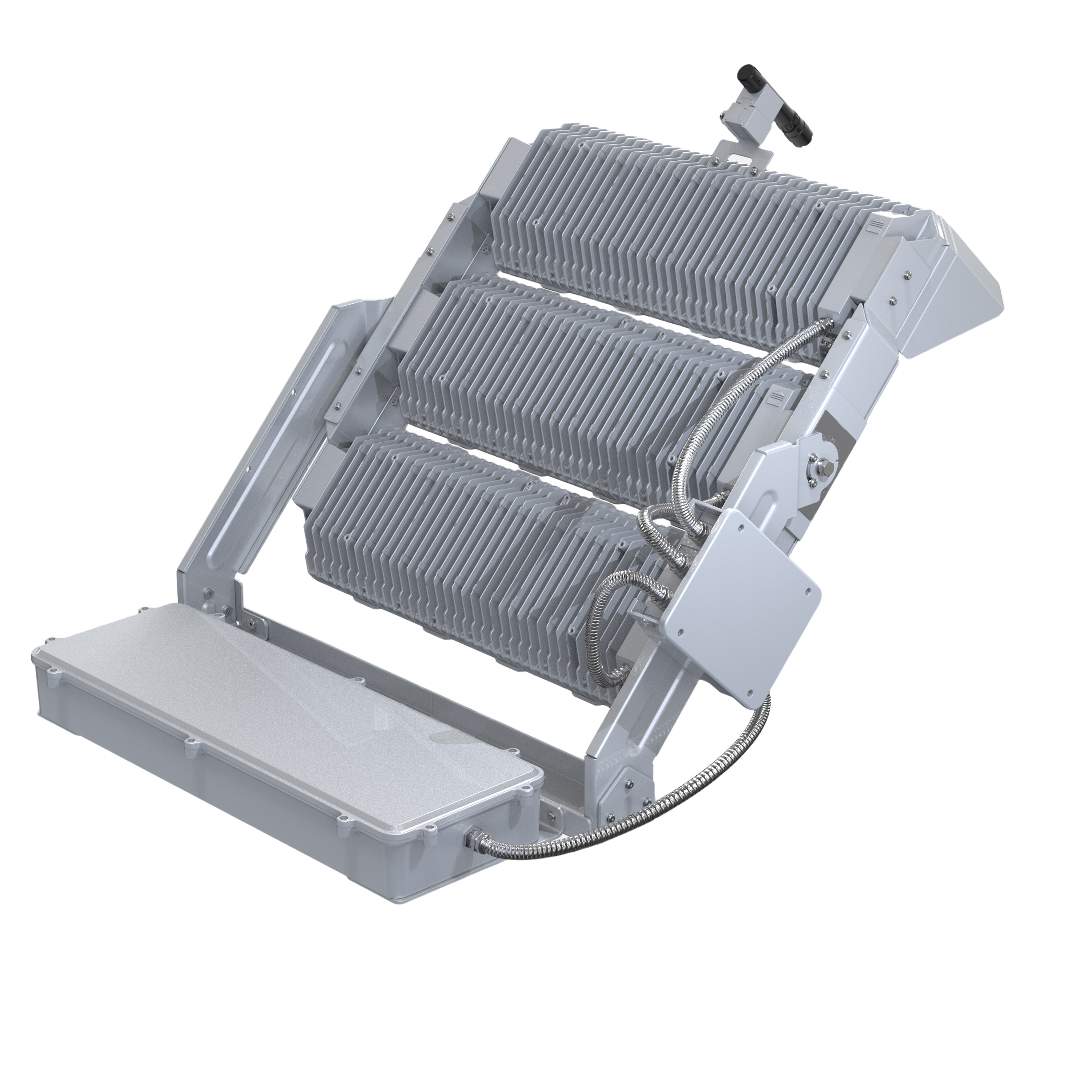

• High pressure die-casting radiator
• 3 sizes covered 100W to 1500W
• 3535/5050 LED
• Narrow to wide beam angles
• High efficiency up to 170lm/w
• Low UGR and light pollution
• Complete accessories
Details
| Product model | EL-FL16 |

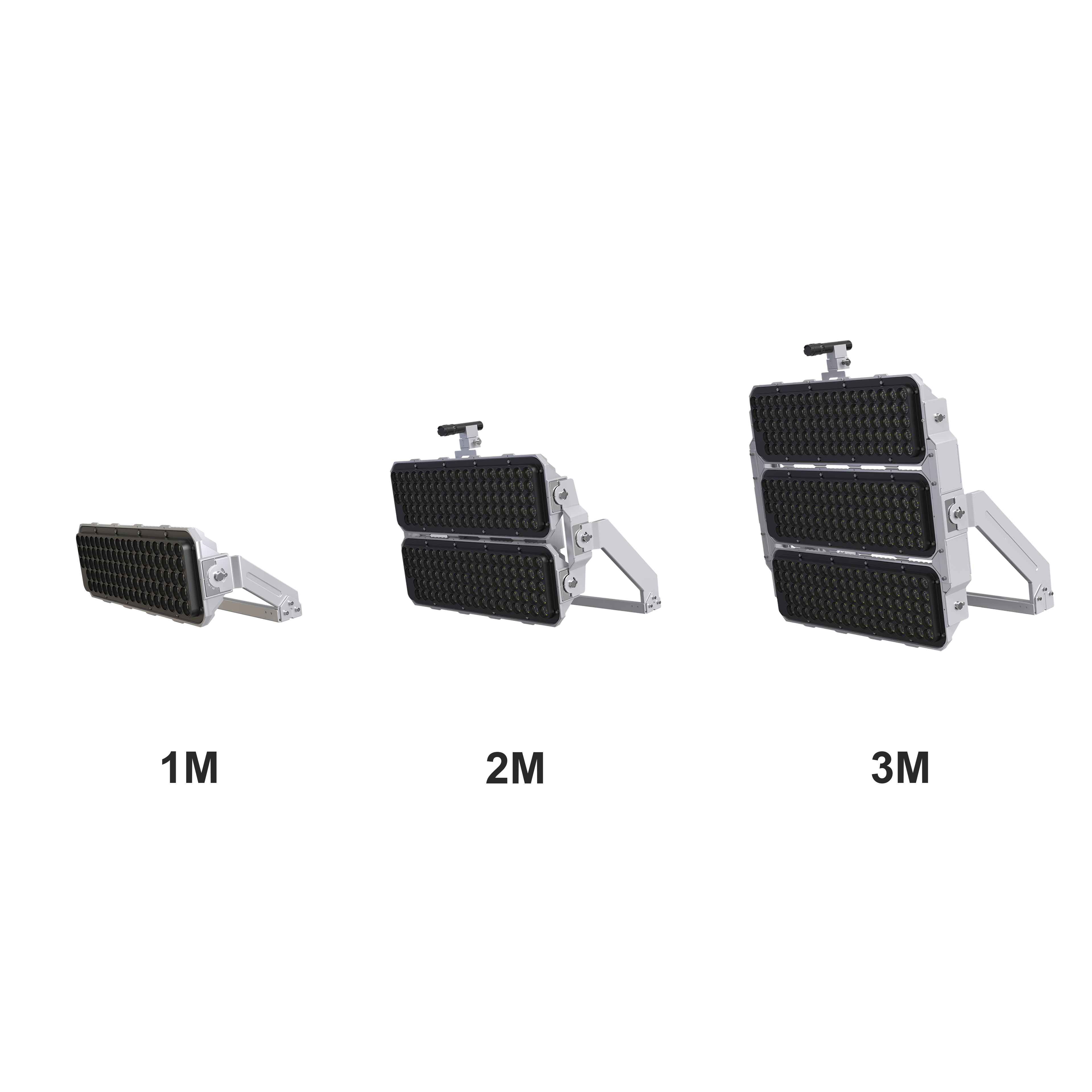

| Size | 1M/2M/3M |
| Nonimal power | 100-500W/500-1000W/1000-1500W |
| Max projected area(m²) | 0.13/0.30/0.40 |
| LED type | 3535/5050 |
| CCT | 5700K(Others upon request) |
| CRI | Ra70/80/90 optional |
| Max luminous efficiency | 170lm/w |
| Max luminous flux | 255,000lm |
| Optics | 12/30/60° |
| Driver function | 0-10V/DALI/DMX |
| Insulation | Class I |
| Glass cover | No |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Colour of finish | Grey |
| Operation Temperature | -40°C to +40°C |
| Neight weight(kg) | 11/18/28 |
| Mounting | High mast/Wall mounted/Suspended |
| Certification | CB/CE |
