Wholesale THE COMPACT SOLAR LIGHTING SOLUTION

Home / Products / Solar Lighting / THE COMPACT SOLAR LIGHTING SOLUTION
THE COMPACT SOLAR LIGHTING SOLUTION THE COMPACT SOLAR LIGHTING SOLUTION THE COMPACT SOLAR LIGHTING SOLUTION THE COMPACT SOLAR LIGHTING SOLUTION THE COMPACT SOLAR LIGHTING SOLUTION

THE COMPACT SOLAR LIGHTING SOLUTION

ASTRAL was born against a backdropof growing demand for solar streetlighting solutions from different regionsin the world, its core advantages areultra-high luminous efficiency design,ultra-strong aluminum profile frameand ultra-long working life based onthe usage of superior raw materials.Combined the latest technology of LED,PV, battery and solar controller,ASTRAL has a perfect lightingperformance and quality stability whichcan be installed in many importantengineering projects. In addition, it canalso achieve remote centralized control,easy centralized control.

  • THE COMPACT SOLAR LIGHTING SOLUTION
  • THE COMPACT SOLAR LIGHTING SOLUTION
  • THE COMPACT SOLAR LIGHTING SOLUTION
  • THE COMPACT SOLAR LIGHTING SOLUTION
  • THE COMPACT SOLAR LIGHTING SOLUTION
Contact us
PREV: INTEGRATED SOLAR STREET LIGHT NEXT:No next product

Specification

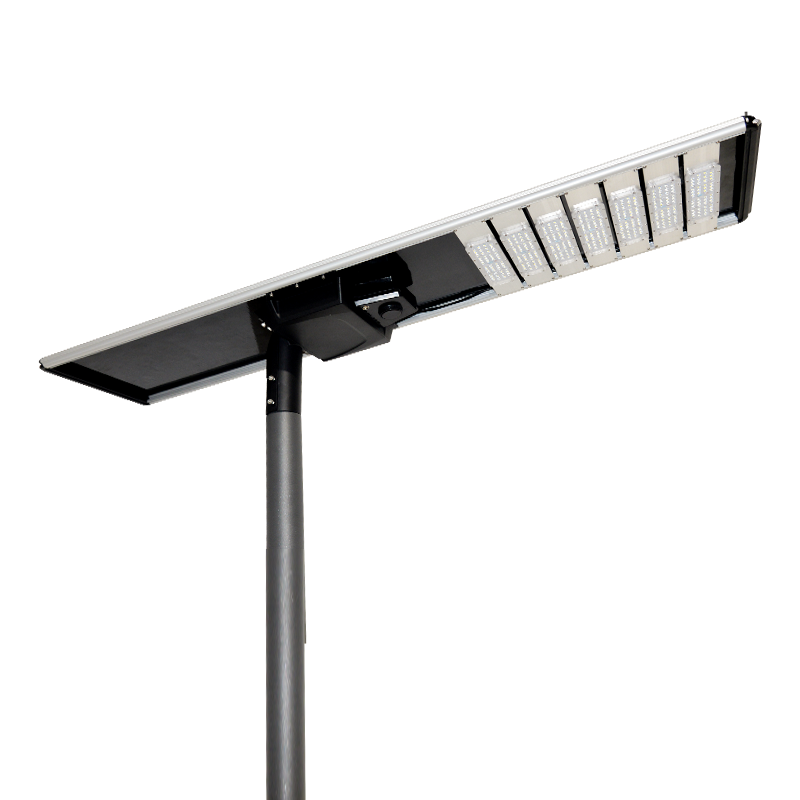

・Elegant all in one structure design, saving transportation cost, easy to install and convenient formaintenance

・Wide lighting angle covering wider road area

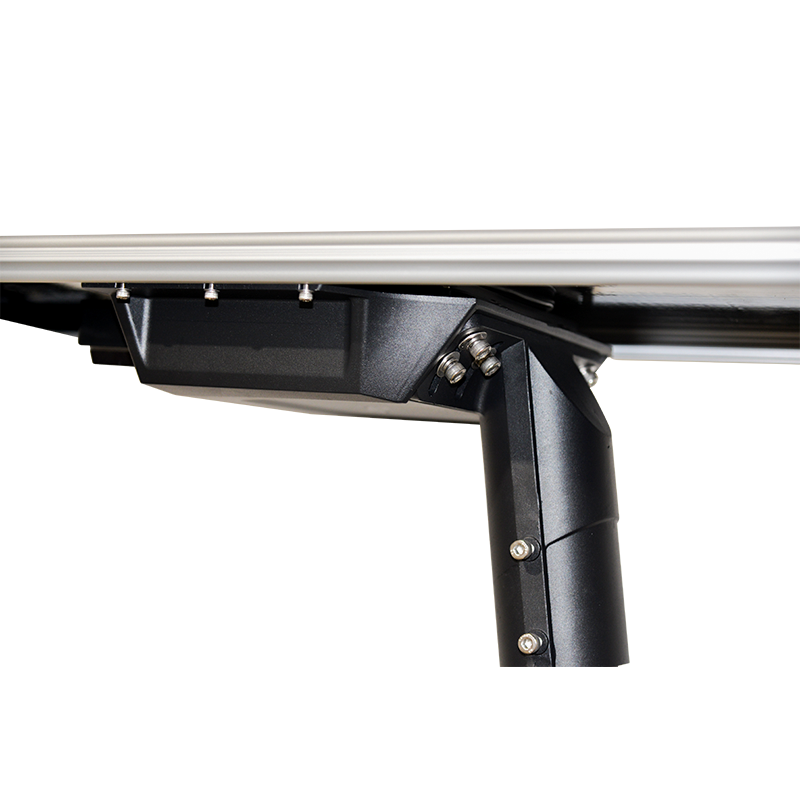

・Die-cast aluminum bracket, high mechanical strength

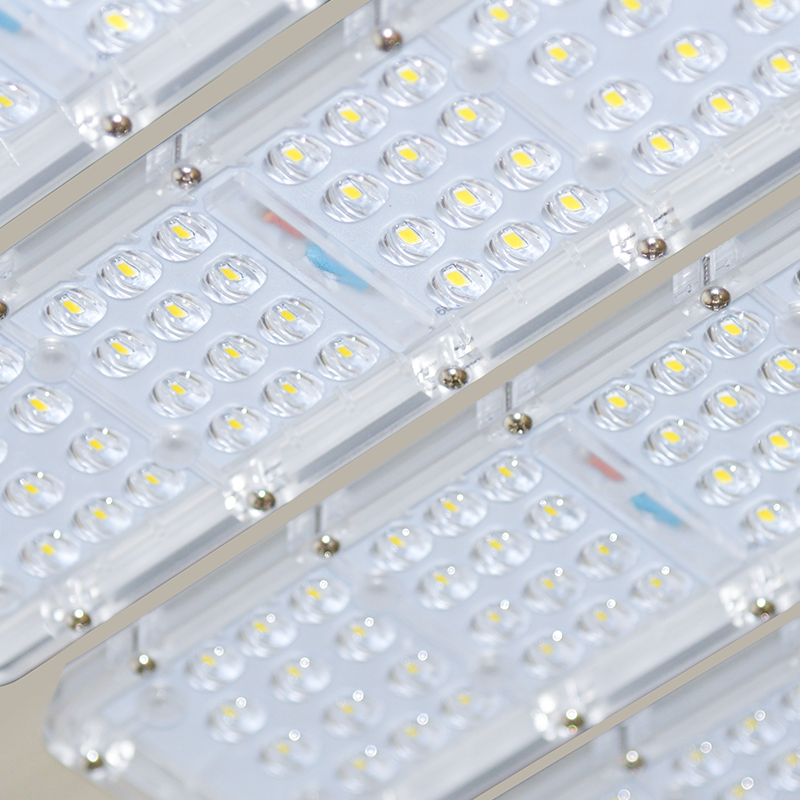

・High power, enlarged capacityled module design, equipped with high-brightness LED chips, improving the brightness by 30%

・High quality MPPT controller, using top technology semiconductor

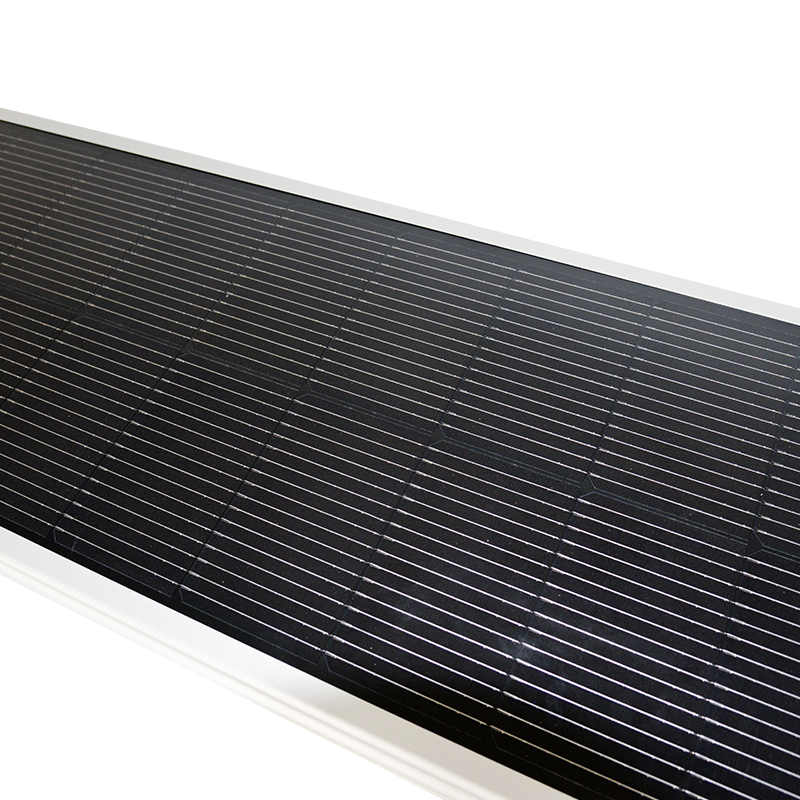

・High-efficiencymono solar panel, carefully selected Grade A solar calls, up to 24% efficiency

・Adopt iron phosphate lithium LiFePo4 battery with a cycle life of over 2000 cycles @ 80% DOD

Details

Product model EL-ASL05
Power 60W/80W/100W/120W/150W
LED Luminous 210lm/w
Battery(LiFeO4) 576WH/768WH/768WH/960WH/1152WH
Solar Panel(Mono) 18V80W/18V100W/18V130W/18V140W/18V160W
Solar Charge Time 8~9 hours by bright sunlight
Lighting Time 4~5 nights
Lighting Mode 100% light control,Time control, Microwave control,Time & Microwave control
PIR 120°>8m
Size(mm) 848*385*139 1078*385*139 1548*385*139 1868*385*139 1868*385*139 2268*385*139
Material Aluminium alloy + PMMA
Guard Level IP66
Working Temperature -20°C to 60°C

Download

Embrace a green future

As a practitioner of environmentally friendly lighting, we will continue to innovate, continuously optimize product performance, improve lighting efficiency, reduce energy consumption, and contribute to building a green, low-carbon, and sustainable urban environment.
